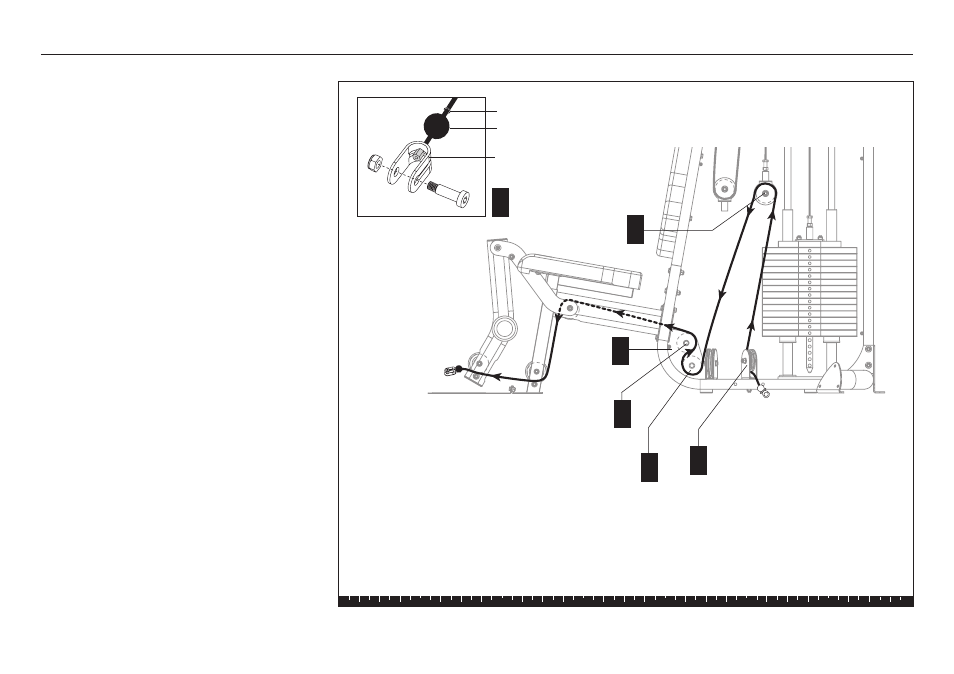

8. Install Leg Extension Cable
A. Before feeding the cable through the pulley
assemblies, remove the U-bracket assembly, cable
stop ball and rubber washer at the end of the Leg
Extension Cable 130198.
B. Start at the Pivoting Bracket attached to the
Main Base. Feed the end of the cable beneath the
3½-inch pulley.
C. Feed the cable through the Single Floating Pulley
as shown.
D. Disassemble the upper 3½-inch pulley located
inside the Gusset which is welded to the Base
Frame.
E. Feed the cable under the lower pulley.
F. Loop the cable over the upper 3½-inch pulley and
secure it to the Gusset using
one 2¼-inch bolt
two flat washers
one locknut
Step 8. Install Leg Extension Cable
Gusset
F
E
1 - 2¼" bolt
2 - washers
1 - locknut
D
C
B
A
Rubber Washer
Cable Stop Ball
U-bracket
