S3.15 Assembly and Maintenance Guide
page 10
1 2 3 4 5 6
2. Assemble Leg Extension
A. Attach the Leg Extension to the Main Base using
two 2½-inch bolts
two spring washers
Wrench tighten.
B. Insert the 2-inch threaded shaft into the Leg
Extension Arm.
C. Attach the Leg Extension Arm to the Leg
Extension using
two
¹⁄₂-inch x ¾-inch buttonhead bolts
two flat washers
Wrench tighten using the 8mm hex keys.

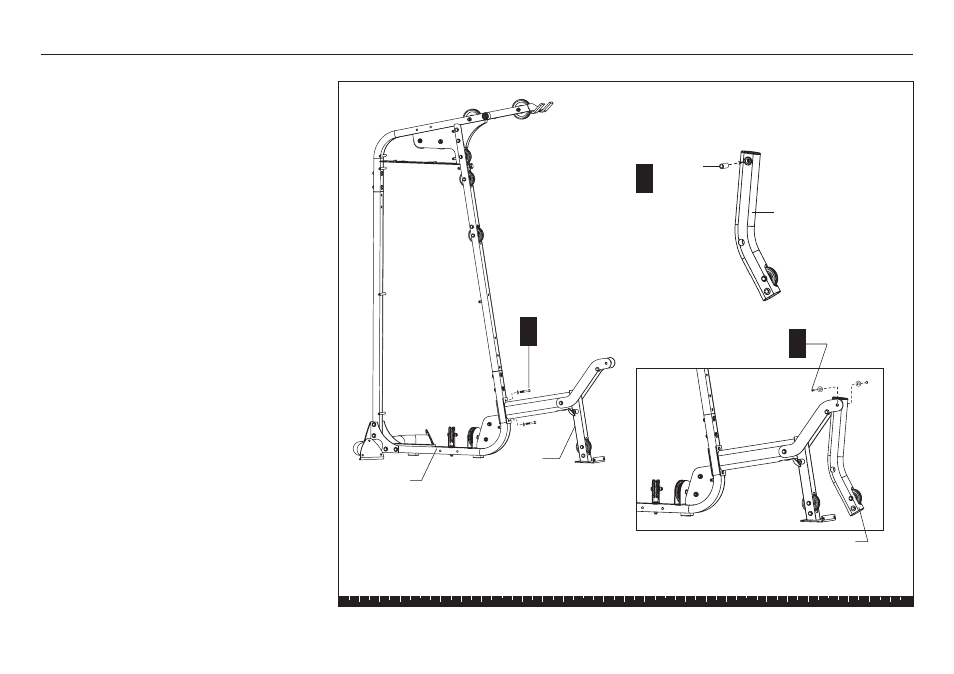

Step 2. Assemble Leg Extension
A
2 - 2½" bolts
2 - spring washers
B
C
2 - ¹⁄₂" x ¾-inch
buttonhead bolts
2 - washers
Threaded
Shaft
Main Base
Leg Extension Arm
Leg Extension Arm
Leg
Extension
