How to Replace Extended Battery Modules
Use the following procedure to replace EBMs:
1.
Unplug the EBM cable from the UPS.
2.
Replace the EBM. See “Recycling the Used Battery” on page 20 for proper disposal.
3.
Plug the new EBM into the UPS as shown in Figure 12.
4.
For additional EBMs, plug the EBM cable of the second cabinet into the battery
connector on the first EBM.

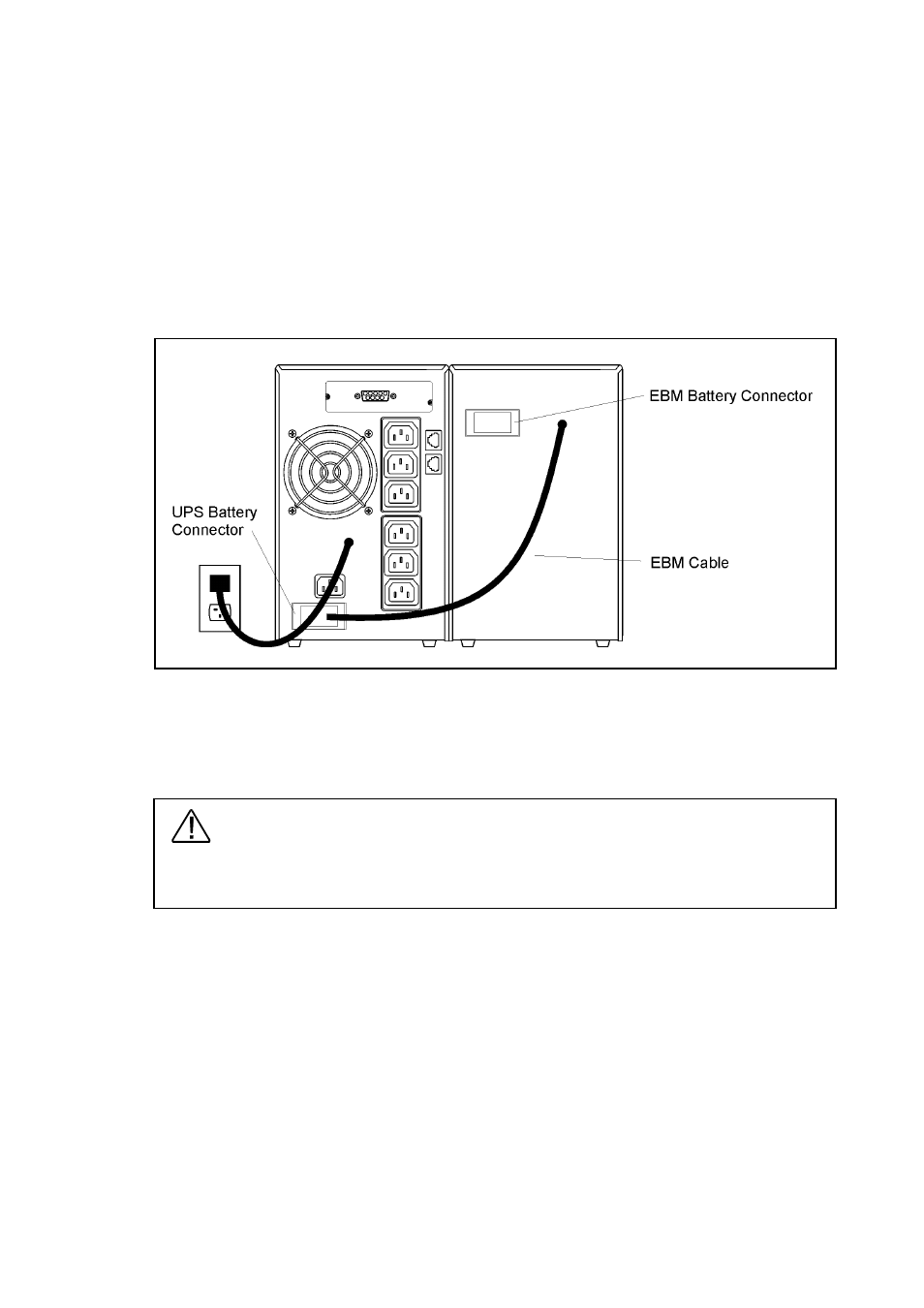

Figure 12. EBM Connections
How to Replace Internal Batteries
CAUTION
Pull the battery out onto a flat, stable surface. The battery is unsupported when you
pull it out of the UPS.
