11 11 11 11 11
Fig. 20
Fig. 21
Fig. 19
A
A
A
REAR SUPPORT/
CARRYING HANDLE

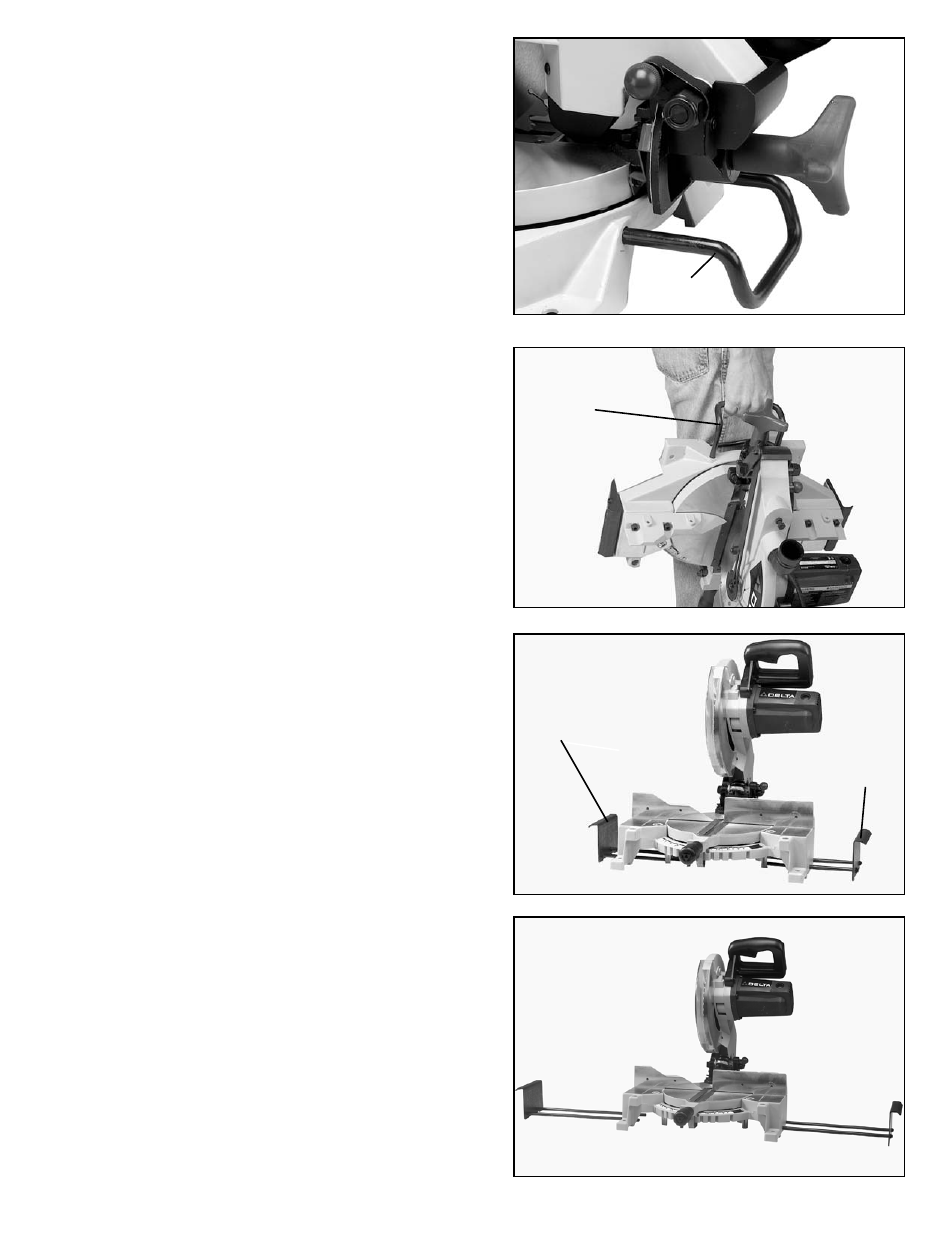

A rear support bar (A) Fig. 19, is provided to prevent the
miter saw from tipping to the rear when the cuttinghead
is returned to the raised position after a cut has been
made. For maximum support, support bar (A) should be
pulled out as far as possible before attempting to per-
form a cut.
The support bar (A) also acts as a carrying handle, as
shown in Fig. 20, when transporting the saw.
TABLE EXTENSIONS
There are table extensions (A) Fig. 21, on each side of
the miter saw base to help support long workpieces. To
extend the table extensions, simply grasp and pull out-
ward as shown in Fig. 21.
Fig. 22, illustrates table extensions fully extended.
Fig. 22
A
