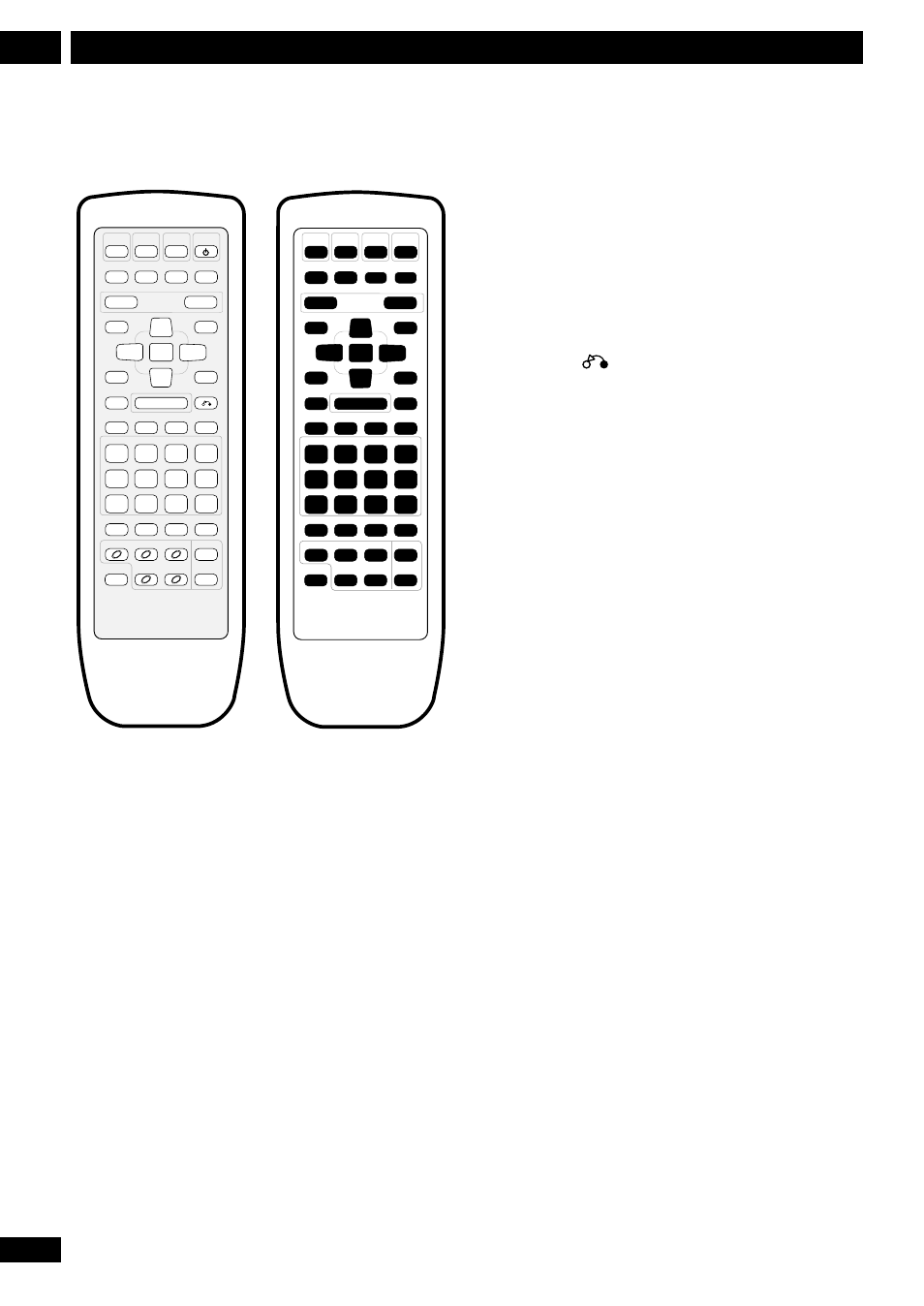

Remote control
1 DVD/CD Pages 19, 34
2 TUNER/BAND Pages 21-22, 34
3 TV/AUX Pages 22, 34
4 STANDBY/ON Page 19
5 MUTE Silences/restores all sound.
6 TEST TONE/CH LEVEL Page 17
7 SURROUND MODE Pages 17, 24
8 DSP Page 24
9 VOLUME – Lowers the volume.
10 VOLUME + Raises the volume.
11 DVD SETUP Pages 18, 38
12 Cursor up Use for navigating menus and on-screen
displays.
13 SYSTEM SETUP Pages 16, 22, 34-37, 44
14 Cursor left Use for navigating menus and on-screen
displays.
SHIFT DISC 4 DISC 5
OPEN/
CLOSE
DISC 1 DISC 2 DISC 3 DISC SKIP
CD MODE AUDIO SUBTITLE SYSTEM DISP
PROGRAM RANDOM REPEAT REP A—B
ANGLE MONO SLEEP
1 2 3 CLEAR
4 5 6 >10
7 8 9 10/0
CONDITION LAST MEMO SEARCH DVD DISP
e STEP/SLOW E — PREV NEXT +
FL DIMMER
DVD
/CD
TUNER
/BAND
TV
/AUX
STANDBY
/ON
MUTE
SURROUND
MODE DSP
TEST TONE
CH LEVEL
VOLUME
7 6
RETURN
ENTER
TOP MENU
DVD SETUP SYSTEM SETUP
SOUND MENU
4 ¢
0
¡ 1
3
5
∞
2
— +
1 2 3 4
5 6 7 8
23 24 25 26
27 28 29 30
31 32 33 34
35 36 37 38
39 40 41 42
43 44 45 46
47 48 49 50
9
12
15 14 16
18
10
21
11 13
17 19
20 22
15 ENTER
16 Cursor right Use for navigating menus and on-screen
displays.
17 MENU Page 20
TOP MENU Page 20
18 Cursor down Use for navigating menus and on-screen
displays.
19 SOUND Page 23, 25
20
7 Page 19
21
3/8 Page 19
22 RETURN Page 20
23
4 / –PREV Pages 19-20
24
1 / STEP/SLOW e Pages 19-20
25
¡ / STEP/SLOW E Pages 19-20
26
¢ / NEXT+ Pages 19-20
27 1 / CONDITION (SHIFT & 1) Page 30
28 2 / LAST MEMO (SHIFT & 2) Page 29
29 3 / SEARCH (SHIFT & 3) Page 26
30 CLEAR Clears/cancels various functions
DVD DISP (SHIFT & CLEAR) Page 30
31 4 / ANGLE (SHIFT & 4) Page 26
32 5 / MONO (SHIFT & 5) Page 22
33 6 / SLEEP (SHIFT & 6) Page 35
34 >10 Selects numbers over 10 Page 20
FL DIMMER (SHIFT & >10) Page 44
35 7 / PROGRAM (SHIFT & 7) Pages 27-28
36 8 / RANDOM (SHIFT & 8) Page 28
37 9 / REPEAT (SHIFT & 9) Pages 28-29
38 REP A–B (SHIFT & 10/0) Page 29
10/0 Number button (10 and 0)
39 CD MODE Page 29
40 AUDIO Page 26
41 SUBTITLE Page 26
42 SYSTEM DISP Page 16
43 DISC 1 Page 20
44 DISC 2 Page 20
45 DISC 3 Page 20
46 DISC SKIP Pages 19, 21
47 SHIFT Hold down to access secondary button functions
48 DISC 4 Page 20
49 DISC 5 Page 20
50 OPEN/CLOSE
0 Pages 19, 21
