Pioneer S-HTD50 - Manual (Page 12)

12
En
Connecting Up 2

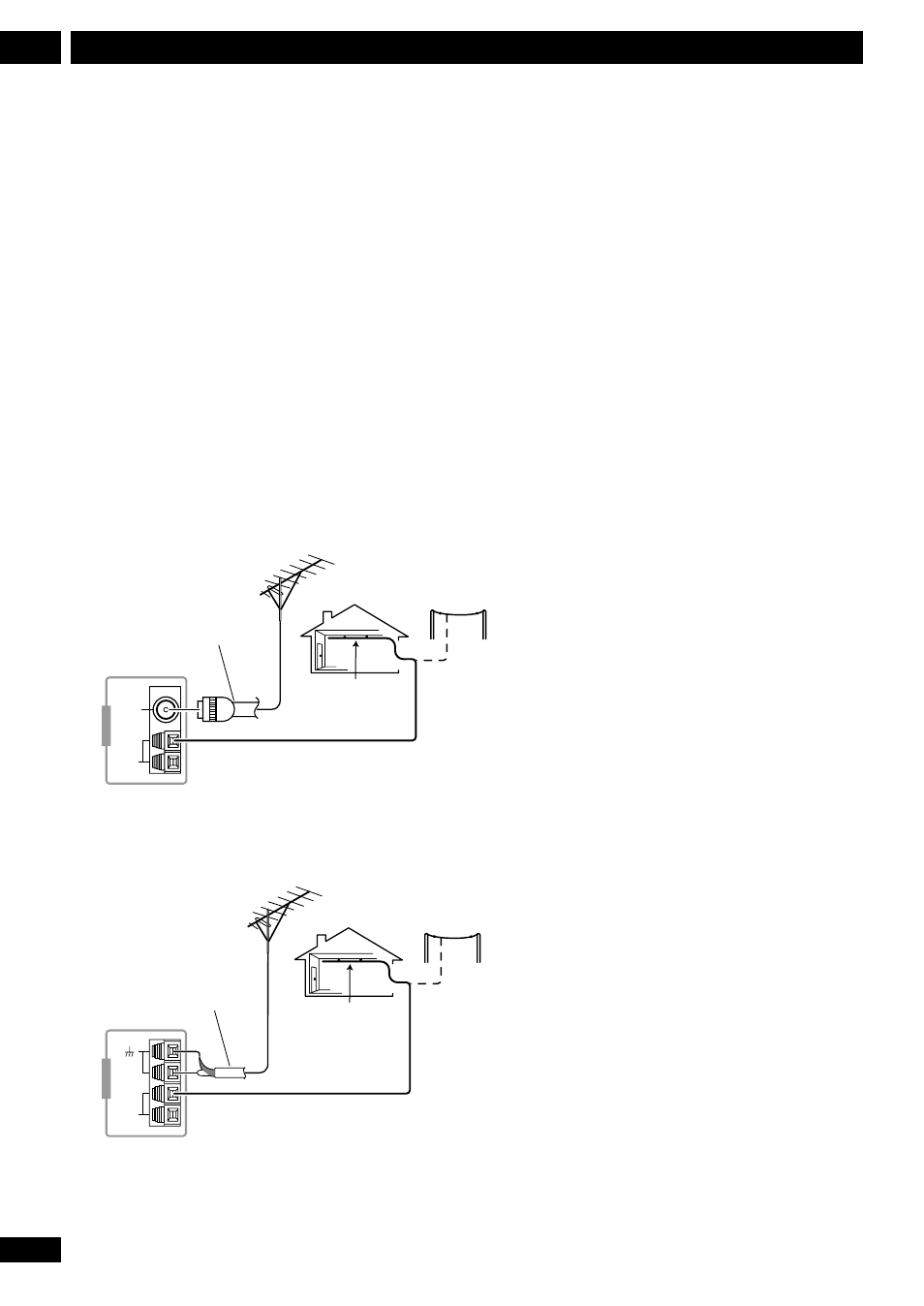

Connecting external antennas
External AM antenna
Use 5–6 meters of vinyl-insulated wire and set up either
indoors or outdoors. Leave the supplied AM loop
antenna connected.
External FM antenna
Except European model : Use 75
Ω
coaxial cable to
hook up an external FM antenna. Do not leave the
supplied FM wire antenna attached.
European model : Use 75
Ω
coaxial cable with a PAL
connector to hook up an external FM antenna.
ANTENNA AM
LOOP
ANTENNA
FM
UNBAL
75 Ω
H
Outdoor
AM antenna
Indoor
AM antenna
ANTENNA AM
LOOP
ANTENNA
FM
UNBAL
75 Ω
H
Outdoor
AM antenna
Indoor
AM antenna
75
Ω
coaxial cable
PAL connector
Except European model
European model
