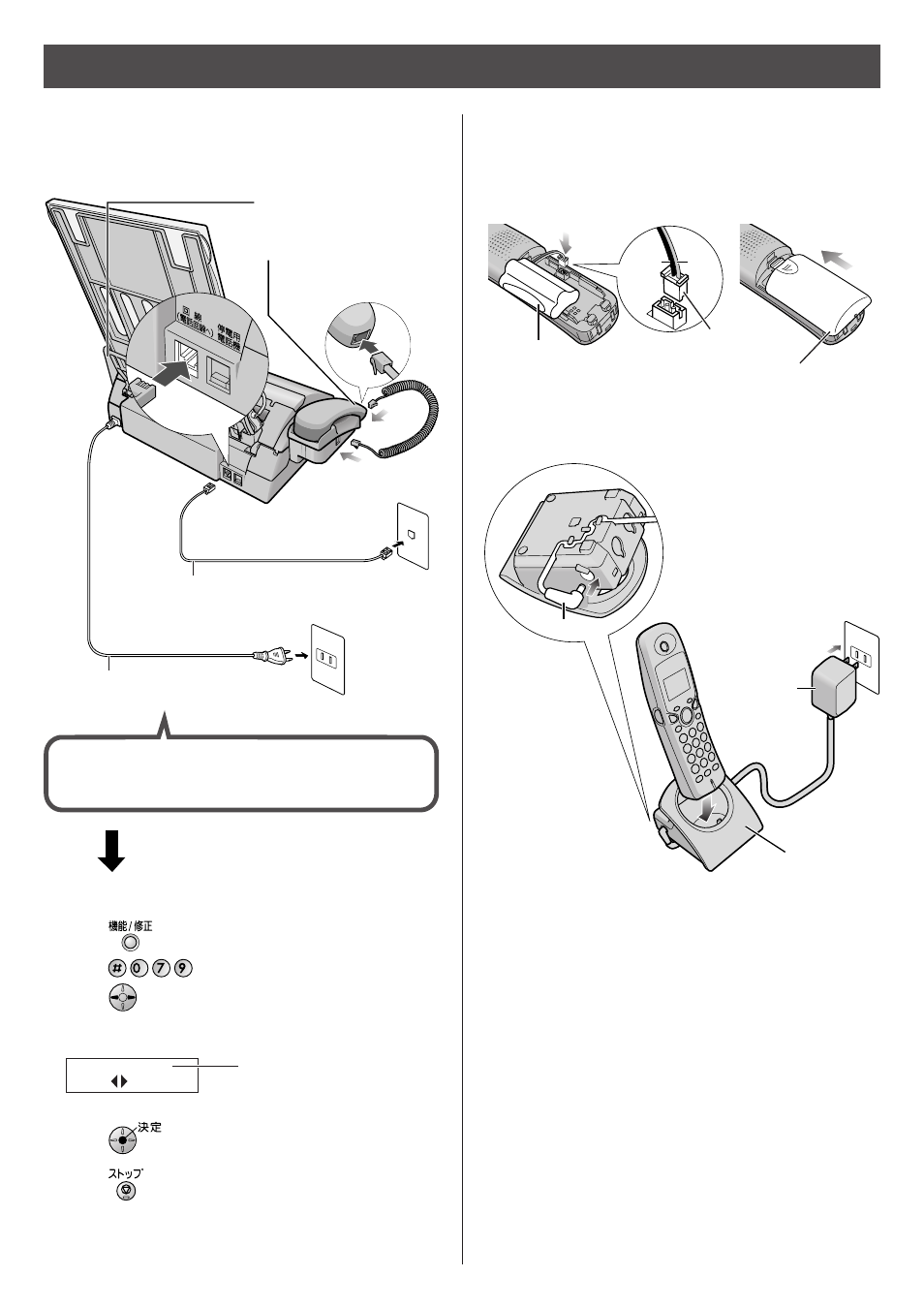

Connecting the main unit
Installations and connections
Setting up the portable handset
(KX-FKN521)
1
Raise the antenna.
Power cord
Telephone line cord
(supplied accessory)
Wall jack
Power outlet
(AC 100 V)
3
Connect the telephone line cord.
4
Connect the power cord.
2
Connect the cord and
place the handset on
the main unit.
After the Power On...
This unit will automatically select the dialing mode
(Tone/Pulse).
3
Charge the battery in the charger for 10 hours.
1
2
l After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Battery
Connector
Black Red
Battery cover
Charger
Plug
Power outlet
(AC 100 V)
AC adaptor
If you can not make a call...
Set the dialing mode with the main unit.
1. Press (Function/Edit).
2. Press .
3. Press (Search button) repeatedly until the desired
setting is displayed.
4. Press (Set).
5. Press (Stop).
Example :
l : Tone
: Pulse (20 pps)
: Pulse (10 pps)
