1997 Apr 10
2
Philips Semiconductors
Product specification
CATV amplifier module
BGY685AL
FEATURES
•
Excellent linearity
•
Extremely low noise
•
Silicon nitride passivation
•
Rugged construction
•
Gold metallization ensures
excellent reliability.
DESCRIPTION
Hybrid high dynamic range amplifier
module designed for applications in
CATV systems operating over a
frequency range of 40 MHz
to 600 MHz operating with a voltage
supply of +24 V (DC).
PINNING - SOT115J
PIN
DESCRIPTION
1
input
2
common
3
common
5
+V
B
7
common
8
common
9
output
PIN CONFIGURATION

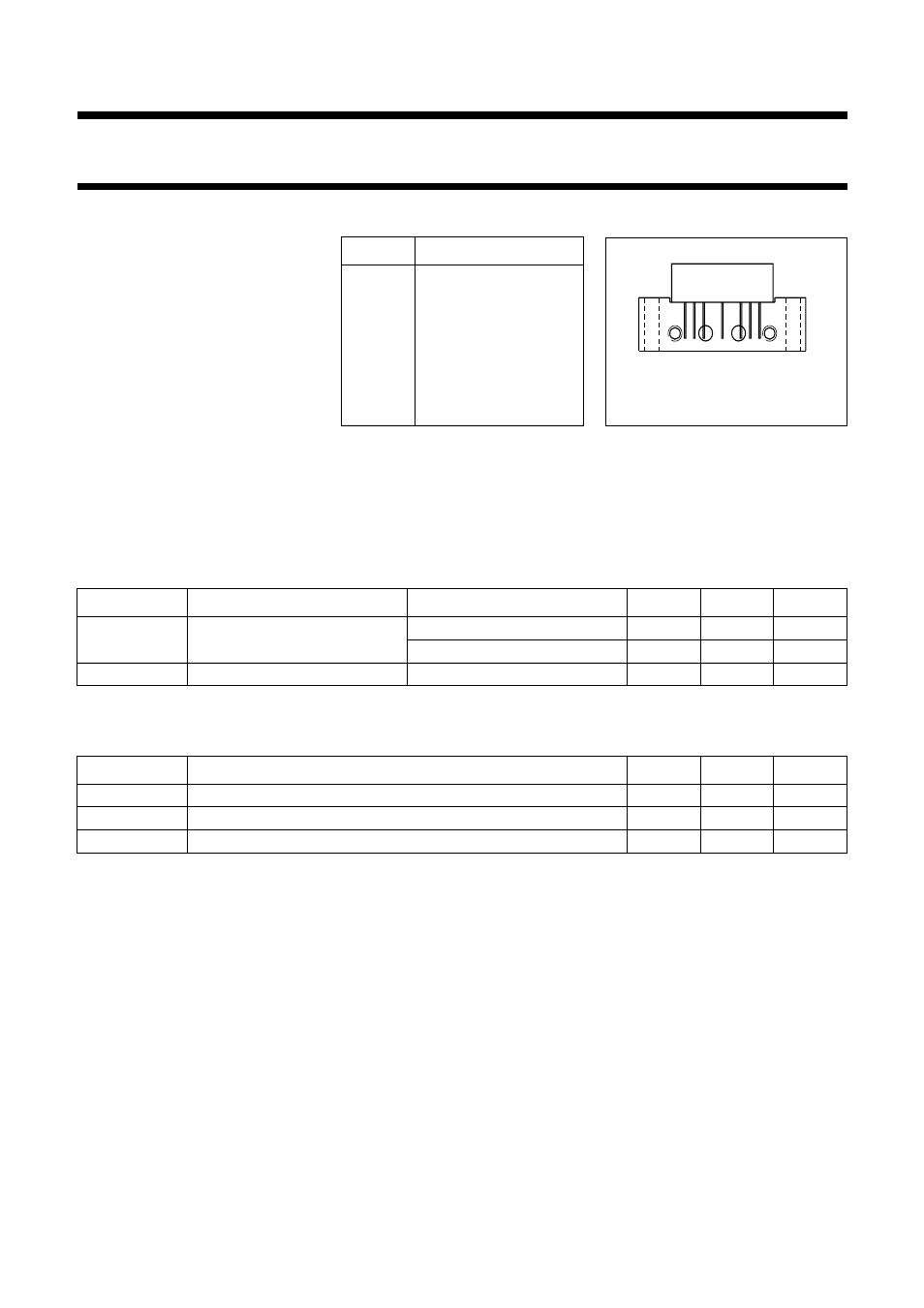

Fig.1 Simplified outline.
fpage
7
8
9
2
3
5
1
Side view
MSA319
QUICK REFERENCE DATA
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
G
p
power gain
f = 50 MHz
18
19
dB
f = 600 MHz
18.5
−
dB
I
tot
total current consumption (DC)
V
B
= +24 V
−
250
mA
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
V
i
RF input voltage
−
65
dBmV
T
stg
storage temperature
−
40
+100
°
C
T
mb
mounting base operating temperature
−
20
+100
°
C
