Getting started
11
VQT3Q59

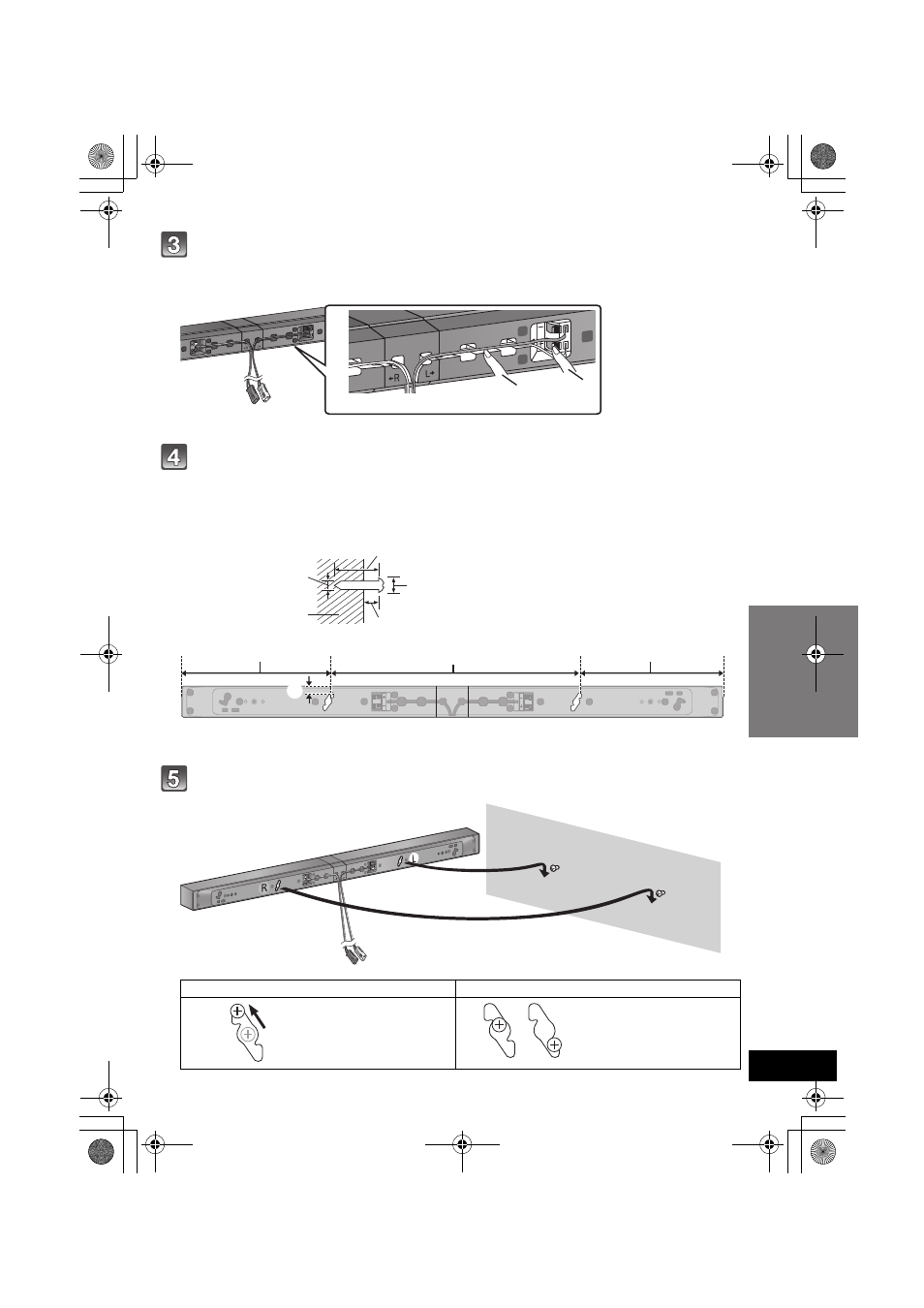

Connect the speaker cables.
≥ To make sure that the speaker cable is connected to the correct speaker, match the color of the speaker connector with the
color of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Drive a screw (not supplied) into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm (
25 / 32
q) of space above and each side of the speaker to allow enough space for fitting the speaker.
≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over 33 kg
(72.8 lbs).
≥ Keep the screws out of reach of children to prevent swallowing.
Fit the speaker securely onto the screw(s) with the hole(s).
1 Insert the wire fully.
r: White
s: Blue line
2 Press into the
groove.


Push
A At least 30 mm (1 3 /
16
q)
B ‰4.0 mm ( 5 /
32
q)
C ‰7.0 mm to ‰9.4 mm ( 9 /
32
q to 3 /
8
q)
D Wall or pillar
E 5.5 mm to 6.5 mm (
7 /
32
q to 1 /
4
q)
F 211 mm (8 5 /
16
q) G 388 mm (15 9 /
32
q) H 201 mm (7 29 /
32
q) I 14.3 mm ( 37 /
64
q)







 
DO DO NOT
≥ Move the speaker so
that the screw is in
this position.
≥ In this position, the
speaker will likely fall
if moved to the left or
right.
