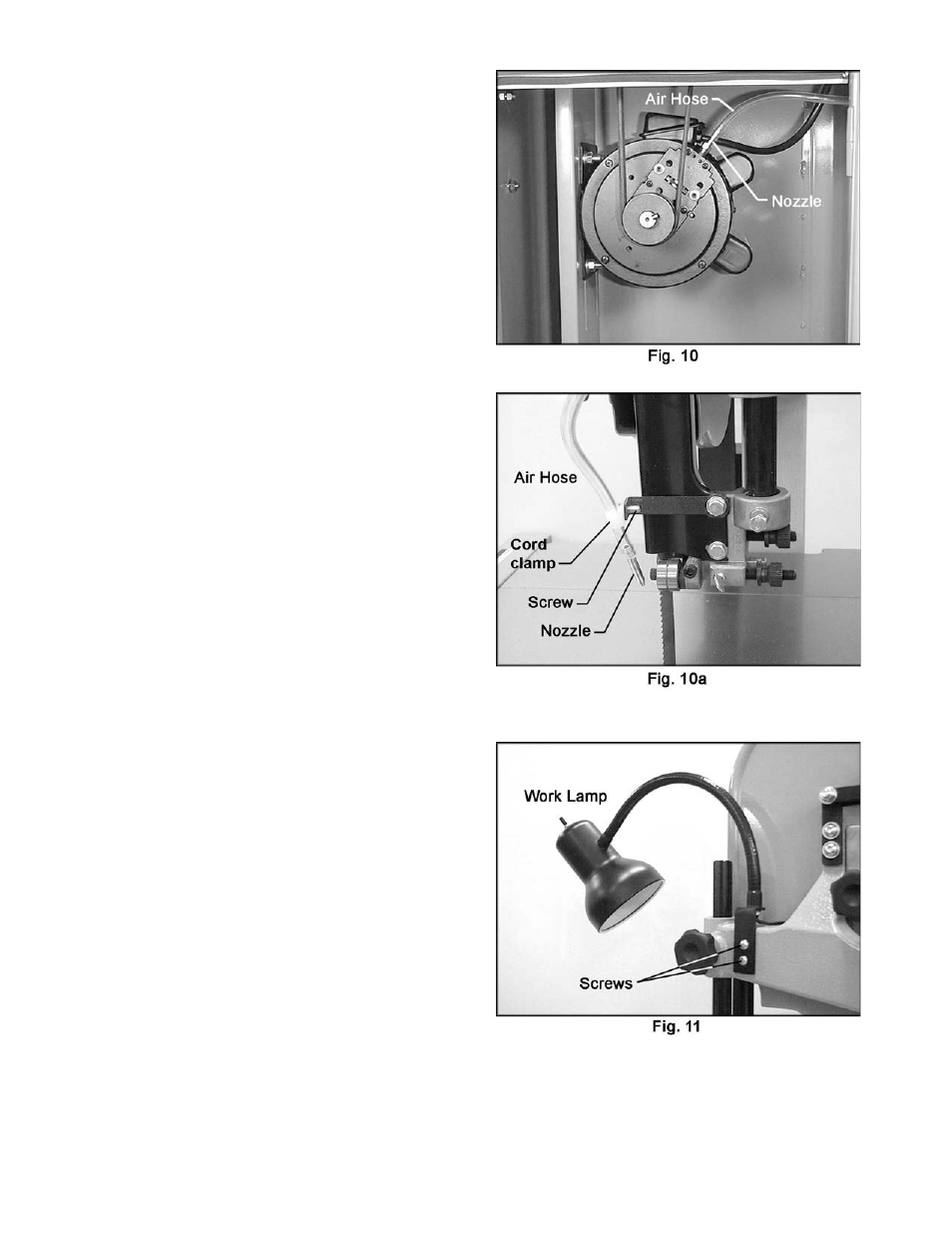

20. The air hose, which is already connected to
the saw body, should be inserted through the
hole in the stand and connected to the nozzle
of the air regulator (Fig. 10). Use a lighter or
match to briefly heat the end of the hose so
that it will slip over the nozzle. As it cools, it
will form a tight seal over the nozzle.
21. Connect the top end of the air hose to the
blade guide assembly with the pan head
screw through the cord clamp (Fig. 10a).
Again, use a lighter or match to heat the end
of the hose before pushing the nozzle into it.
NOTE: Push the wide end of the nozzle into
the hose; the tapered end will be pointed
down toward the table as shown.
22. Mount the work lamp to the saw body with two
M5 x 8 pan head screws (Fig. 11). The work
lamp uses a medium base light bulb (not
provided) which should be 60 watts or less.
