45

NOTE

C

Make sure that the misfeed indicator goes off after removing the misfed
paper.

C

The misfeed indicator will not go off if the paper is still jammed in the copier.
Check again and remove all misfed paper.

Paper Misfeed Locations

A: ADF (see page 51), i-ADF(see page 50)

(J70, J71)

B: Copier (Paper Exit, Paper Entry/Transport,

ADU) areas (see page 46-48) (J51 - J59,
J80)

C: Paper Feed Module (see page 49)

(J00 - J50, J81-J89)

I

Misfeed Indicator

Removing a Misfed Paper

Problem Solving

■

■

■

■

■

Paper Misfeed Indicators and Locations

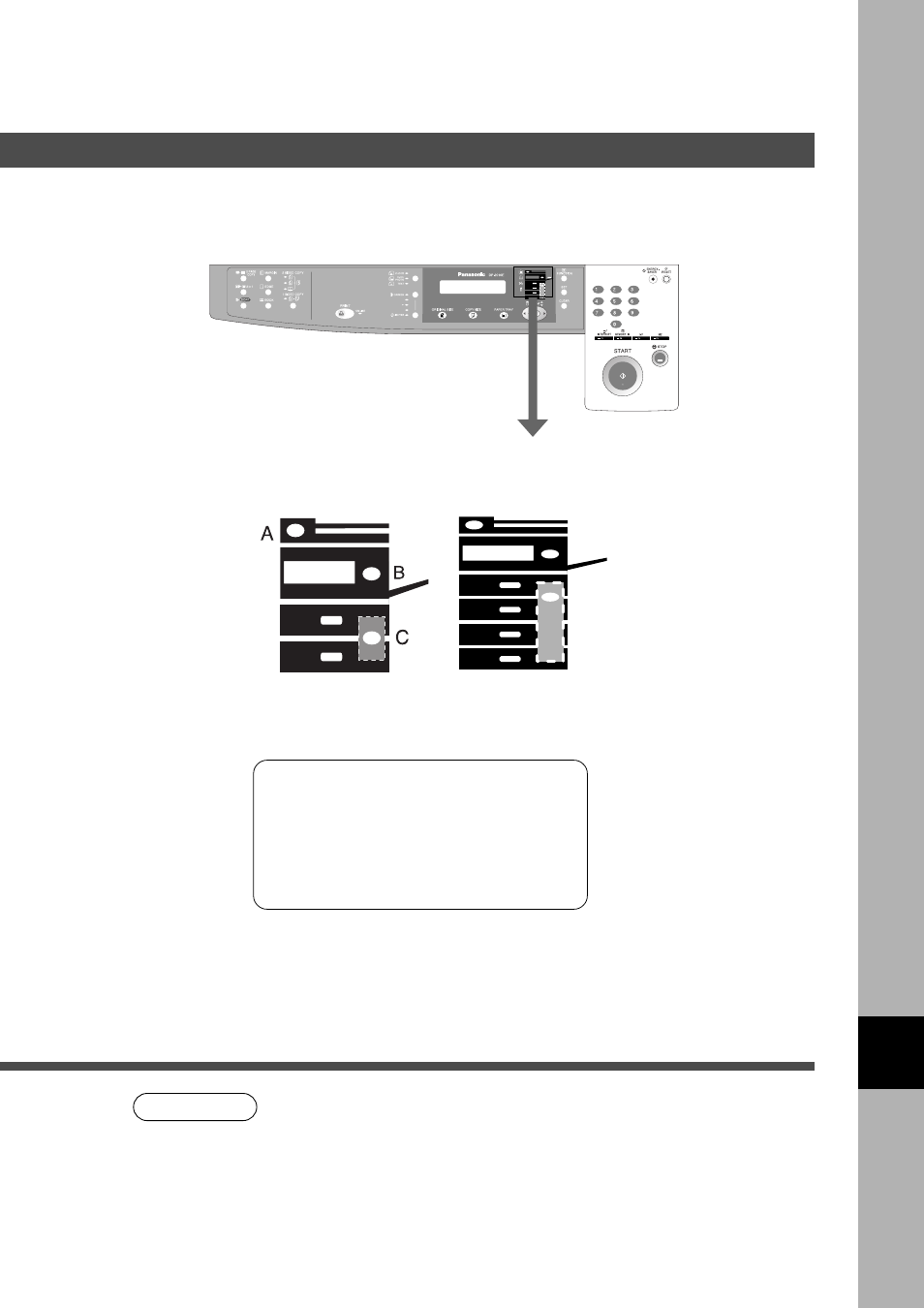

When a paper misfeed occurs, the misfeed indicator and the misfeed
location(s) will be displayed on the panel display.

I

For DP-1510P/1810P

For DP-2010E
