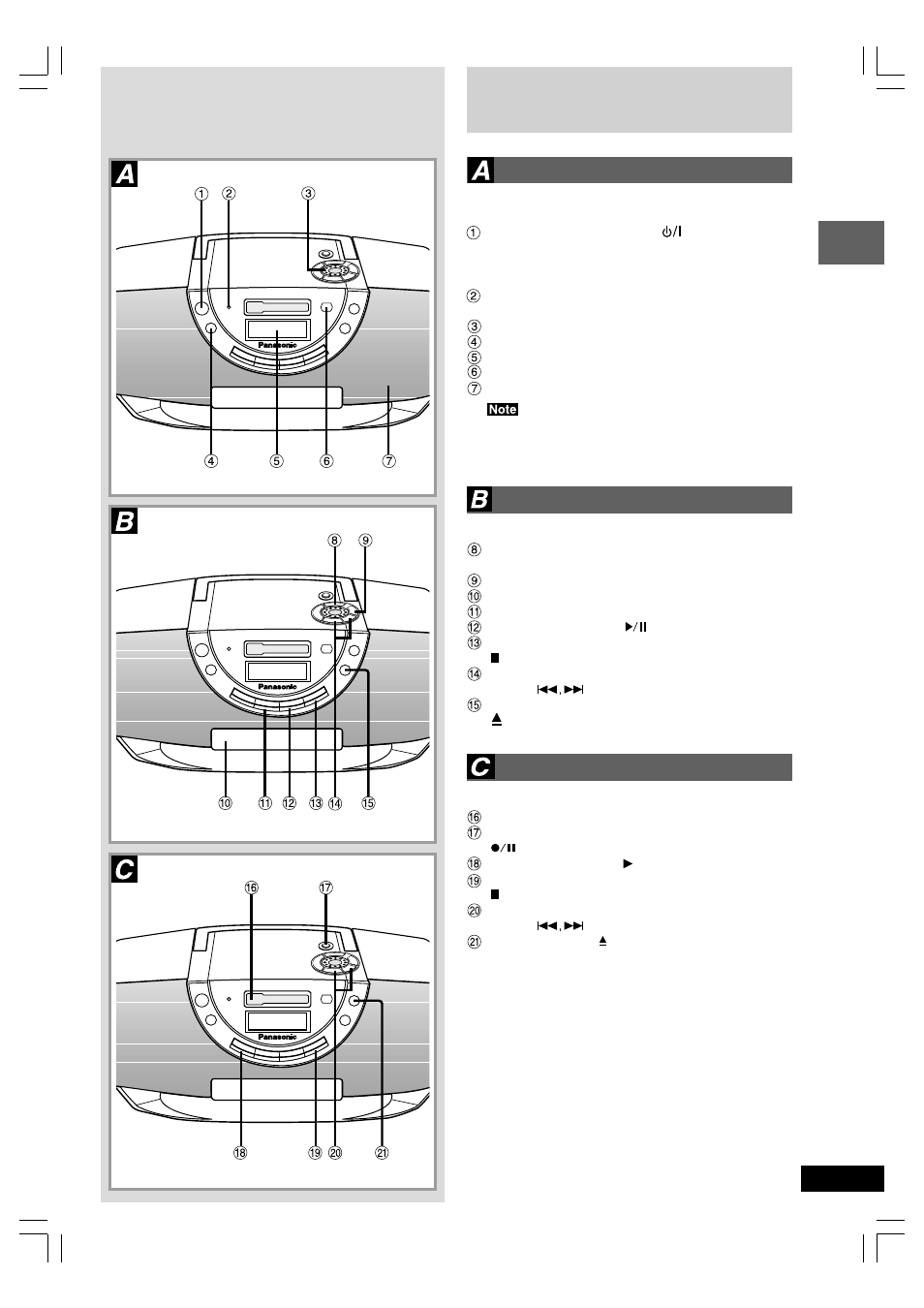

Location of Controls
Basic controls
Number Designation Reference Page
Standby/on switch (POWER, ) . . . . . . . . . . . 10
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still consuming
a small amount of power.
Power indicator (POWER)
The indicator lights red when the unit is turned on.
Volume control (–
" " " " " VOLUME # # # # # +) . . . . . . 10,13,15
Harmonic enhancer sound (H.E.S) . . . . . . . . . . . 18
Display panel
Remote control signal sensor (SENSOR) . . . . . . 8
Speaker
These speakers do not have magnetic shielding. Do not
place them near televisions, personal computers or other
devices easily influenced by magnetism.
Tuner/CD controls
Number Designation Reference Page
CD recording mode button
(CD REC MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tune mode (TUNE MODE) . . . . . . . . . . . . . . . . 13,14
CD Tray
Band button (TUNER BAND) . . . . . . . . . . . . . . 13,14
CD play/pause button (
CD) . . . . . . . . . . . . . 10
Stop, TAPE/CD mode select button
( TAPE/CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tuning/CD skip/search/track select buttons
(REW/–/
/+/FF) . . . . . . . . . . . . . . . . 10,13,14
CD tray open/close button
(
CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cassette deck controls
Number Designation Reference Page
Deck
Record/record pause button
(
) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16–18
Cassette play button ( TAPE) . . . . . . . . . . . . . . 15
Stop, TAPE/CD mode select button
( TAPE/CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Rewind/fast forward buttons
(REW/–/
/+/FF) . . . . . . . . . . . . . . . . . . . . . 15
Tape eject button ( TAPE) . . . . . . . . . . . . . . . . . 17
