Connecting Component Video
Connections
(Continued)
To connect a device using component video:
1. Turn on your TV, then press SOURCE button. The SOURCE menu opens.
2. Press 5or6 to select YPbPr, then press 4 to confirm.
3. Turn on your external device and set it to the correct mode. See the device’s user guide for more information.
To play component video from an external device:

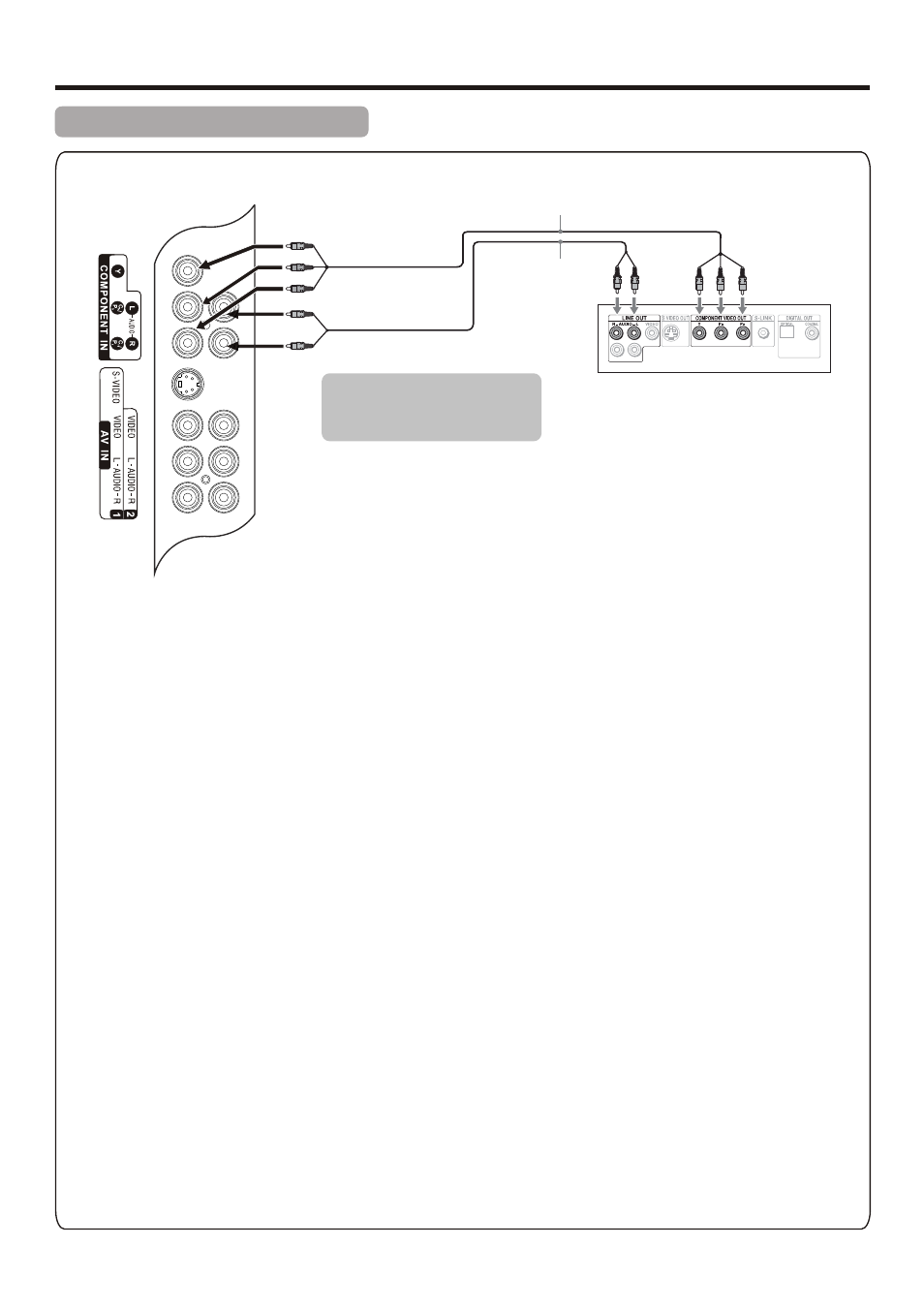

Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on
the device .
Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.
Component video cable
Audio cable
DVD Player
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
