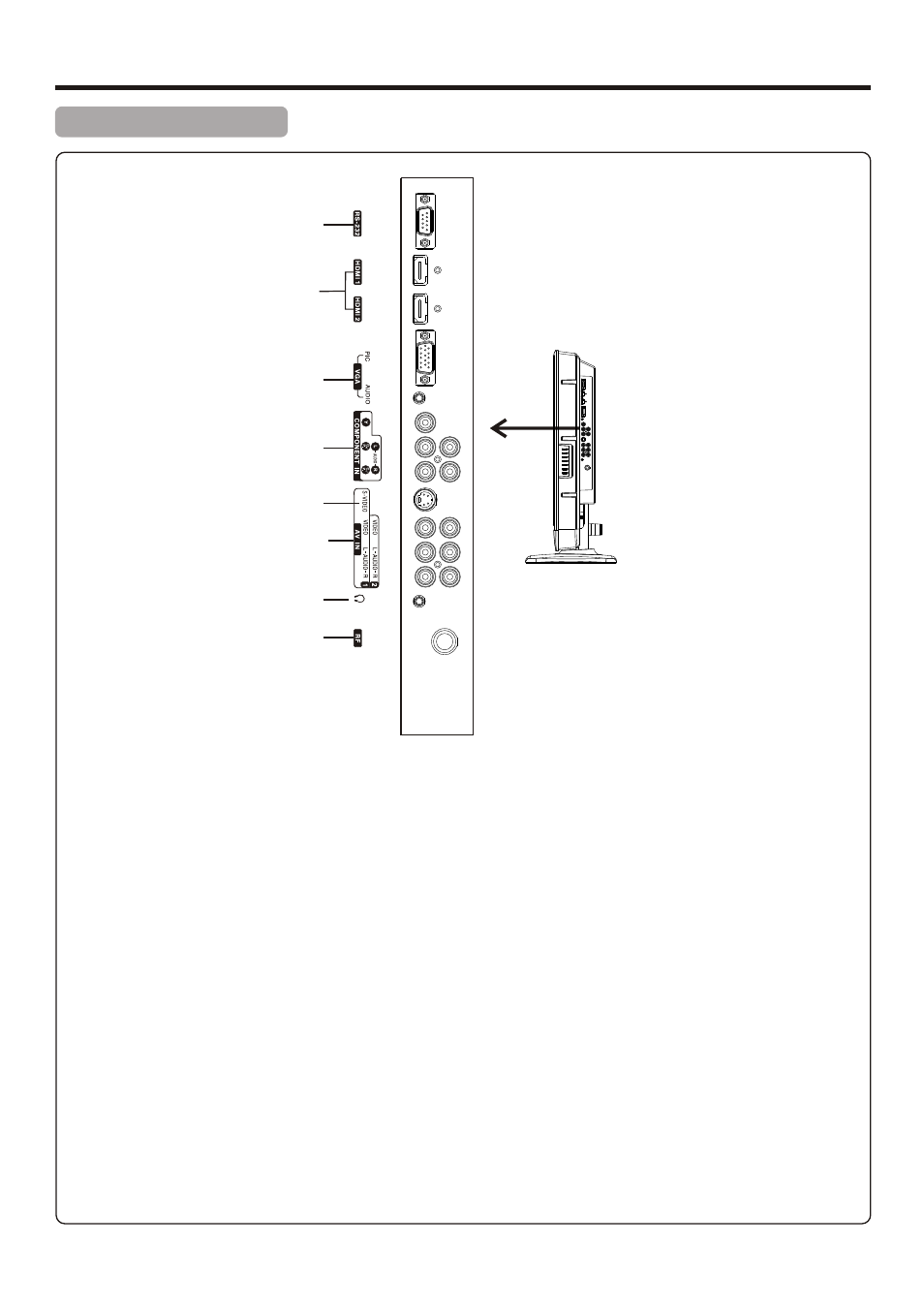

Main Unit (side view)
Identification of Controls
(Continued)
1
2
3
4
5
6
7
8
RS – 232 terminal: For professional personnel only. The user should not use this terminal.
HDMI input 1/2: HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video
interface between this TV and any HDMI-equipped audio/video component, such as a set-top box and DVD player.
HDMI supports enhanced, or high-definition video, plus two-channel digital audio.
VGA PIC(Video)/AUDIO input: Connects to a PC or other Analog RGB devices such as Video Conferencing.
COMPONENT INPUT: Connects to your DVD player.
Component video provides better picture quality than the S-VIDEO or the composite video connections.
S-VIDEO input: Connects to the S-VIDEO output jack of your VCR or other video equipment that has S-VIDEO.
S-VIDEO provides better picture quality than the composite video connection.
AV INPUT 1/2: Connects to the composite video and audio output jacks on your VCR or other video device.
Headphones jack: Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adaptor (not supplied).
RF input: Connects to your cable system or outdoor antenna.
