ADJUSTMENTS
Front Suspension
Spring Preload

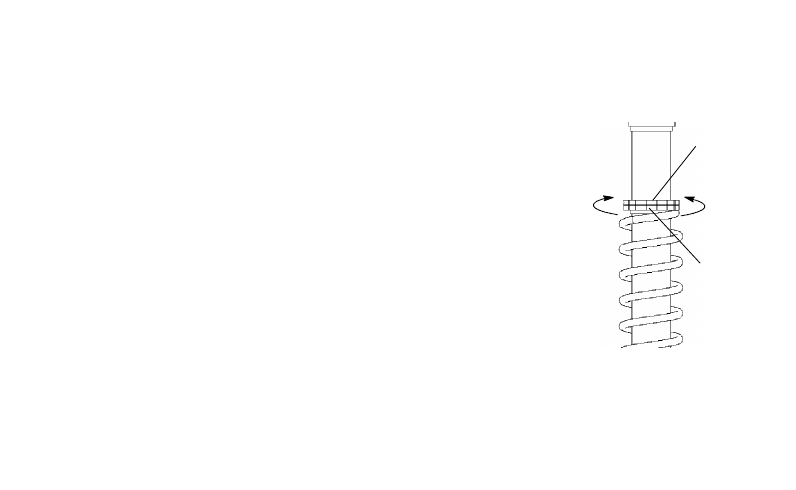

1. Raise and safely support the front of the ATV off the
ground to allow the suspension to fully extend.
2. Loosen the jam nut (1).
3. Turn the adjusting ring (2) to the left to increase
preload (A). Turn the ring to the right to decrease
preload (B).
4. Tighten the jam nut against the adjusting ring.
NOTE: See Suspension Settings on page 148.
A
B
1
2
