Independent Data
Acquisition & Verification
All data for SoundTube speakers is
independently collected from and veri-
fied by NWAA Labs (www.nwaalabs.
com) using their proprietary MACH
testing system. All data is collected and
analysed according to ASTM, ISO and
AES standards using EASERA, TEF and
MLSSA. Full balloon data including
both phase and magnitude is compiled
into a variety of formats including EASE
4.x, GLL and CLF.
Architectural
Specifications
The loudspeaker shall consist of
one 203 mm (8 in) low-frequency
transducer and one 25.4 mm (1.0 in)
high-frequency transducer with a fre-
quency dividing network installed in
a sealed enclosure. The low-frequency
voice coil diameter shall be 25 mm
(1 in). The low-frequency transducer
shall have polypropylene cone mate-
rial with a butyl rubber surround. The
high-frequency transducer shall be
constructed of silk material using a
balanced-dome configuration.
Performance specifications of a typi-
cal production unit shall be as follows:
Usable frequency range shall extend
from 45 Hz - 22 kHz, -10 dB. The loud-
speaker shall be available with select-
able 25/70.7/100 Volt and 16 Ohm/
voice coil direct tap switch. The fre-
quency dividing network shall have a
crossover frequency of 5.0 kHz. Rated
power capacity of the components and
network shall be at least 64 Watts con-
tinuous RMS power and conform to
EIA-426-B testing. Maximum continu-
ous output at 1 meter shall be at least
109.4 dB.
The backcan shall be constructed of
galvanized steel with an ABS plastic
baffle. The grille shall be constructed
of painted steel. Shipped complete
with UL-listed flex conduit clamp,
color coded tile bridge (to match color-
coded backcan), grille, wire nuts,
cut-out template and paint shield, the
integrated CM82-EZ in-ceiling speaker
is engineered for high performance
and rapid installation in plenum
Technical data, EASE ™ plots, SoundTubeSPEC ™ software & product downloads available at www.soundtube.com

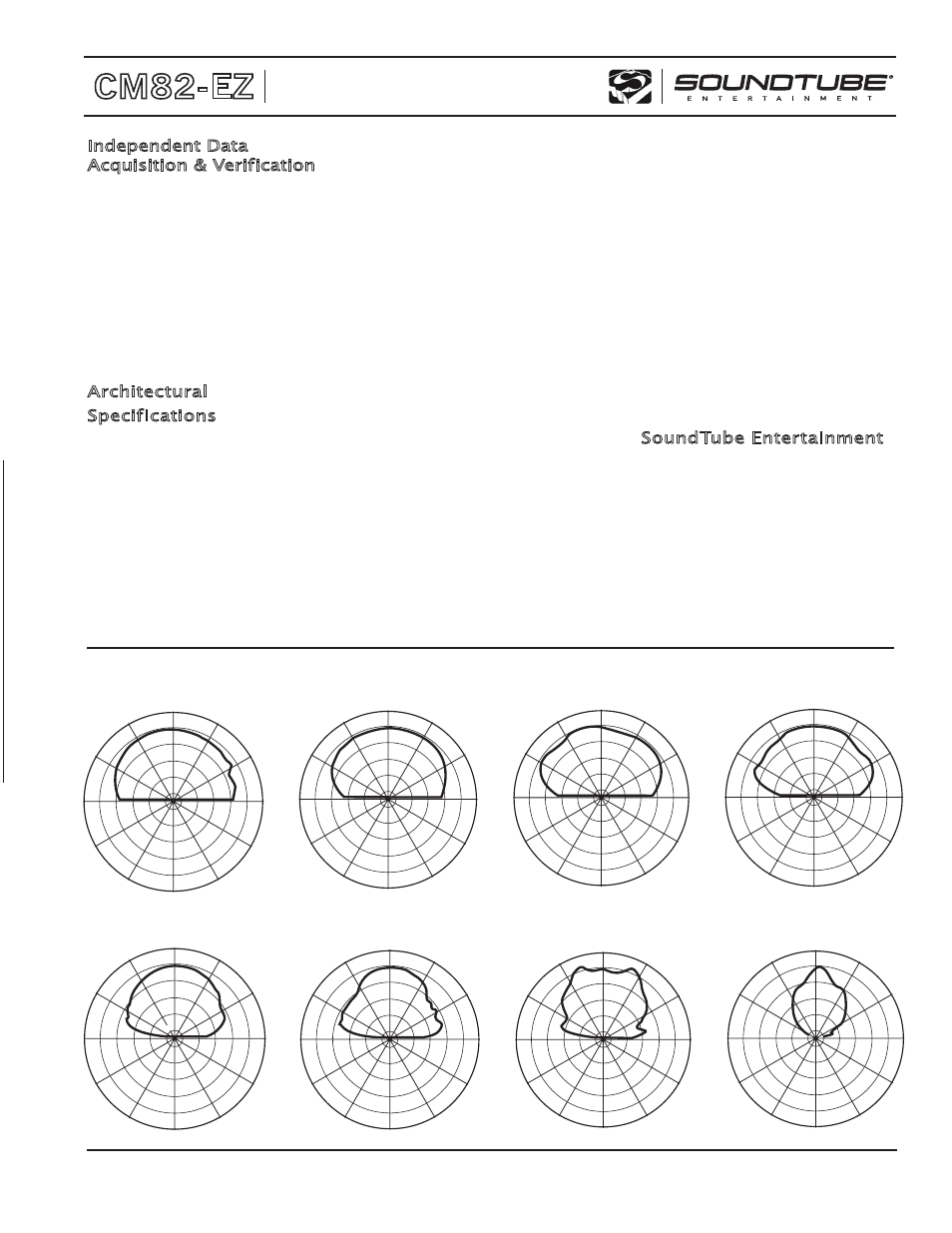

Polar Plots
10,000 Hz 8,000 Hz 4,000 Hz 2,000 Hz
1,000 Hz 500 Hz 250 Hz 125 Hz
spaces. The CM82-EZ incorporates a
secondary attachment point for added
security, or where required by code.
Installation for the CM82-EZ shall
be by 2-screw blind-mount constant-
tension winged assembly and shall
attach to ceiling thicknesses ranging
from 0.04 in to 1.6 in. The external wir-
ing shall be hardwired using wire nuts
accepting up to three 18-gauge wire.
The CM82-EZ is factory preset to the
64 Watt setting in the 70.7 Volt operat-
ing mode, with a tap switch located on
the front baffle. The system shall be
the SoundTube CM82-EZ for both low
& high impedance applications.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone 435.647.9555
Fax 435.647.9666
Toll Free 800.647.TUBE
www.soundtube.com
All SoundTube products come
with a 5-year limited warranty.
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
0dB
-6dB
-12dB
-18dB
-24dB
0º
30º -30º
60º -60º
90º -90º
120º -120º
150º -150º
180º
CM82-EZ In-Ceiling Speaker
Technical Information for System Engineers
