Applications
Developed specifically for the pag-
ing and background music applica-
tions where cost, quality and fit are
paramount, the CM82-EZ is ideal for
hotels, retail stores, restaurants, airports,
churches (under eave) or boardrooms.
Indeed, the entire CM-EZ series is engi-
neered for installations where high-effi-
ciency and rapid installation are critical
attributes. For applications requiring
additional bass response, SoundTube’s
CM1001d subwoofer provides true low-
end response down to 50 Hz.
Patented SoundTube
Technologies
SoundTube Entertainment and the
MSE Audio Group constantly develop
new technologies which enhance audio
product performance. SoundTube Enter-
tainment innovations are protected by
multiple U.S. & international patents,
which explicitly cover SoundTube dome,
enclosure and dispersion technologies.
The MSE Audio Group actively defends
its patents in order to protect SoundTube
resellers and end-users
Technical Data and
Specification Tools
Technical Data
SoundTube Entertainment strives to
provide complete and effective techni-
cal information and data to dealers,
engineers and designers. All data are
available from SoundTube Entertain-
ment or at www.soundtube.com and
includes EASE™ Data – 3-D polar plots
and SoundTubeSPEC™ – Proprietary
SoundTube speaker placement software.

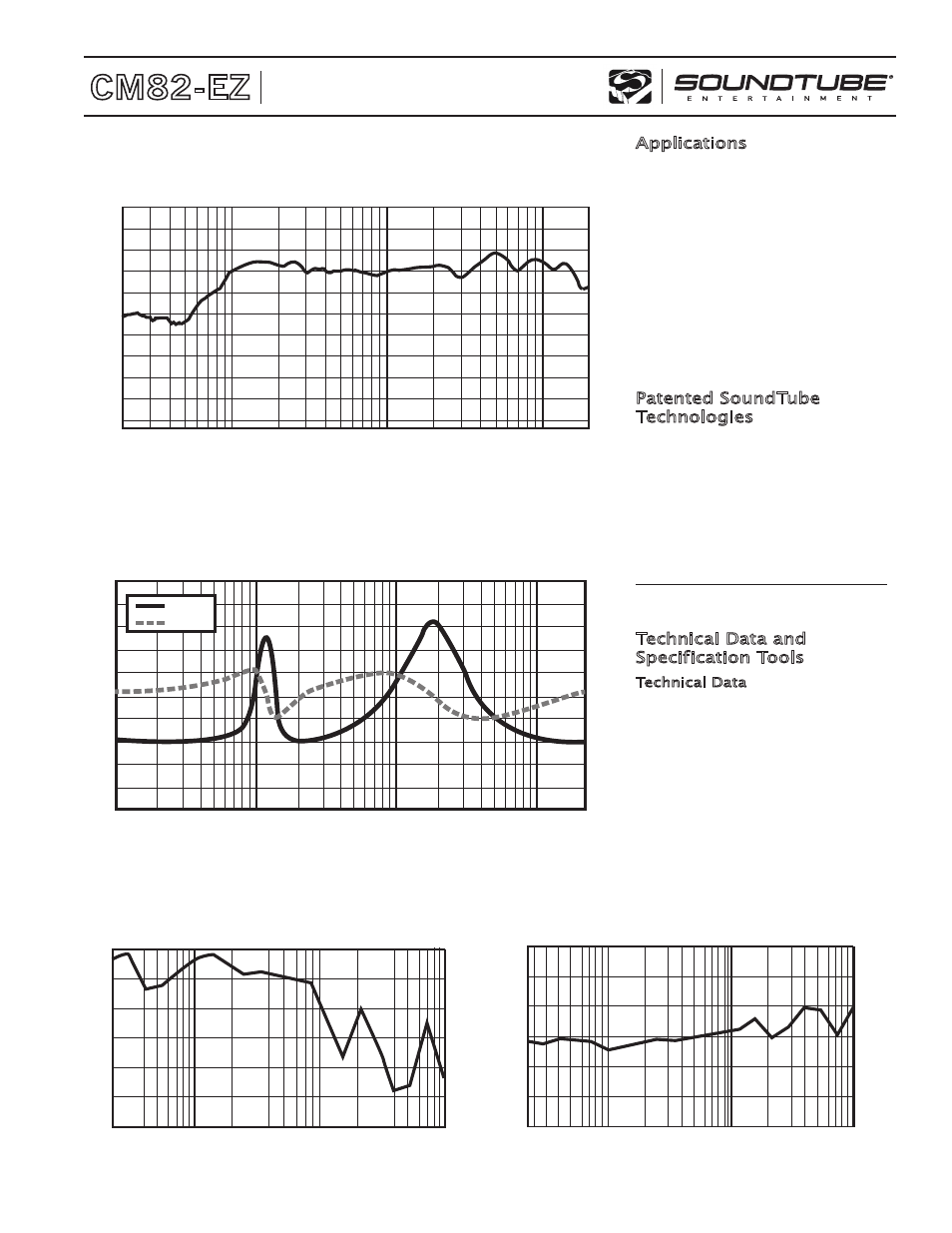

Phase/Impedance Reponse
Frequency Response
Beamwidth (-6 dB) Directivity Index (DI)
dBSPL
120
110
100
90
80
70
60
50
40
30
20
20 50 100 Hz 500 1k 5k 10k 20k
10 50 100 Hz 500 1k 5k 10k 20k
Ohms
45
40
35
30
25
20
15
10
5
0
Angle
180
135
90
45
0
-45
-90
-135
-180
Angle
180
150
120
90
60
30
0
20 50 100 Hz 500 1k 5k 10k
dB
20
15
10
5
0
-5
-10
25 50 100 Hz 500 1k 5k 10k
CM82-EZ In-Ceiling Speaker
Technical Information for System Engineers
Impedence
Phase
