18
Assembling and Maintaining TRM 800-Series Treadmills
Unpacking the Cables
To connect the console to the base unit, you may need up to
five cables, as follows:
 Ethernet (P80 only)
 Television (P80 only)
 Power (P80 only)
 Base unit data
 Automatic stop sensor (Auto Stop ™ )
The first three of these cables are shipped with the P80
console. The remaining two are shipped inside the treadmill
fairing.
To unpack the cables:
1.
Open the box containing the P80 console. Retrieve the
Ethernet, television, and power cables.
2. Remove the two screws holding the center column cover
in place. Remove the cover and set it aside, along with the
two screws.

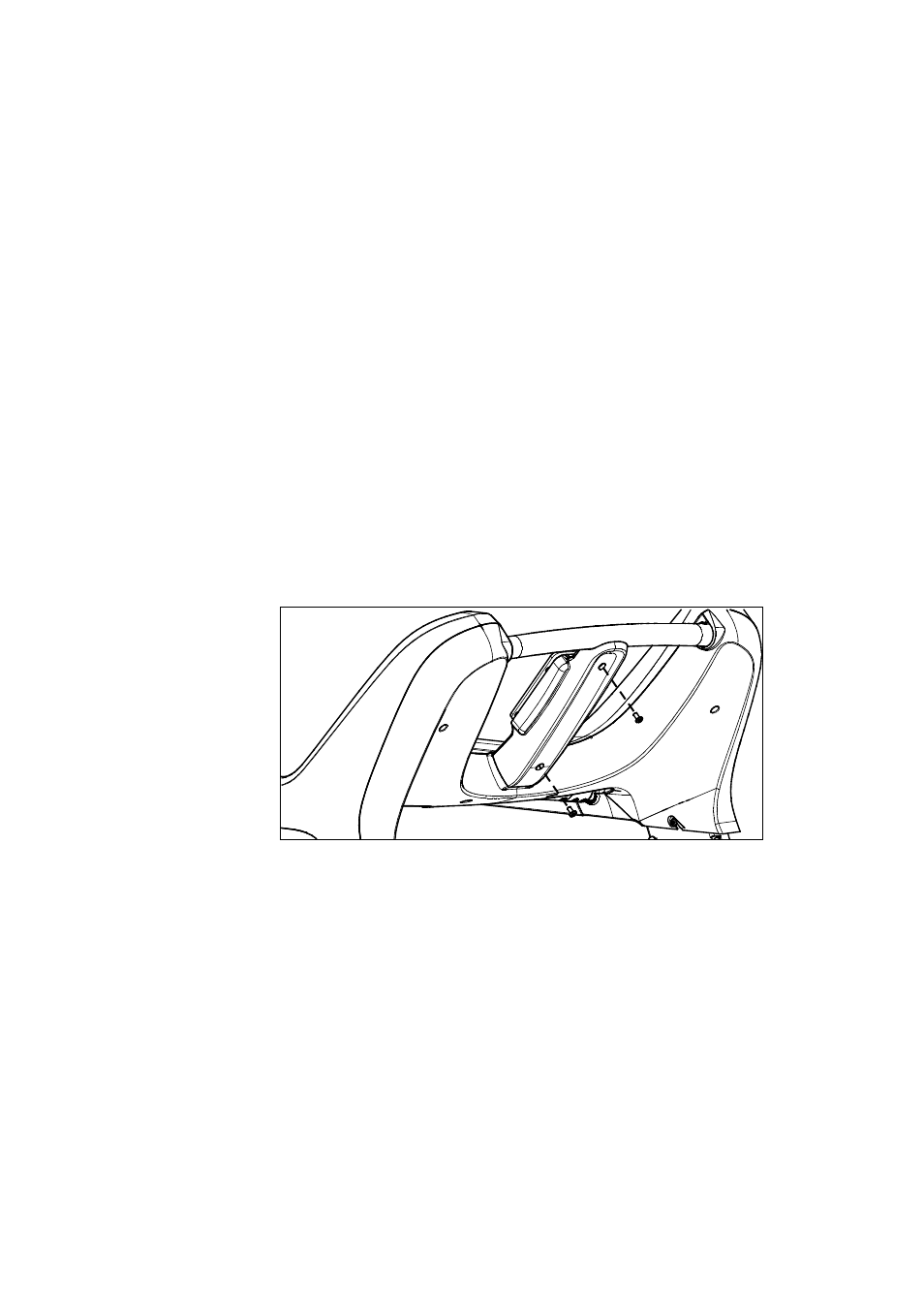

Figure 3: Removal and replacement of the center column
cover
