Paxar Mobile Work Station (MWS) Monarch 9876 User Manual

Page 21

P O W E R O P T I O N S

Your MWS was ordered with one of these power options:

◆

Standard 24VDC

◆

Symbol 24VDC

◆

24VDC/115VAC (uses the power inverter for AC power.
The power inverter is only 115V.)

◆

AC/DC Output with the power inverter. The power inverter
is only 115V.

Make sure all packaging material is removed from the cabinet
before use.

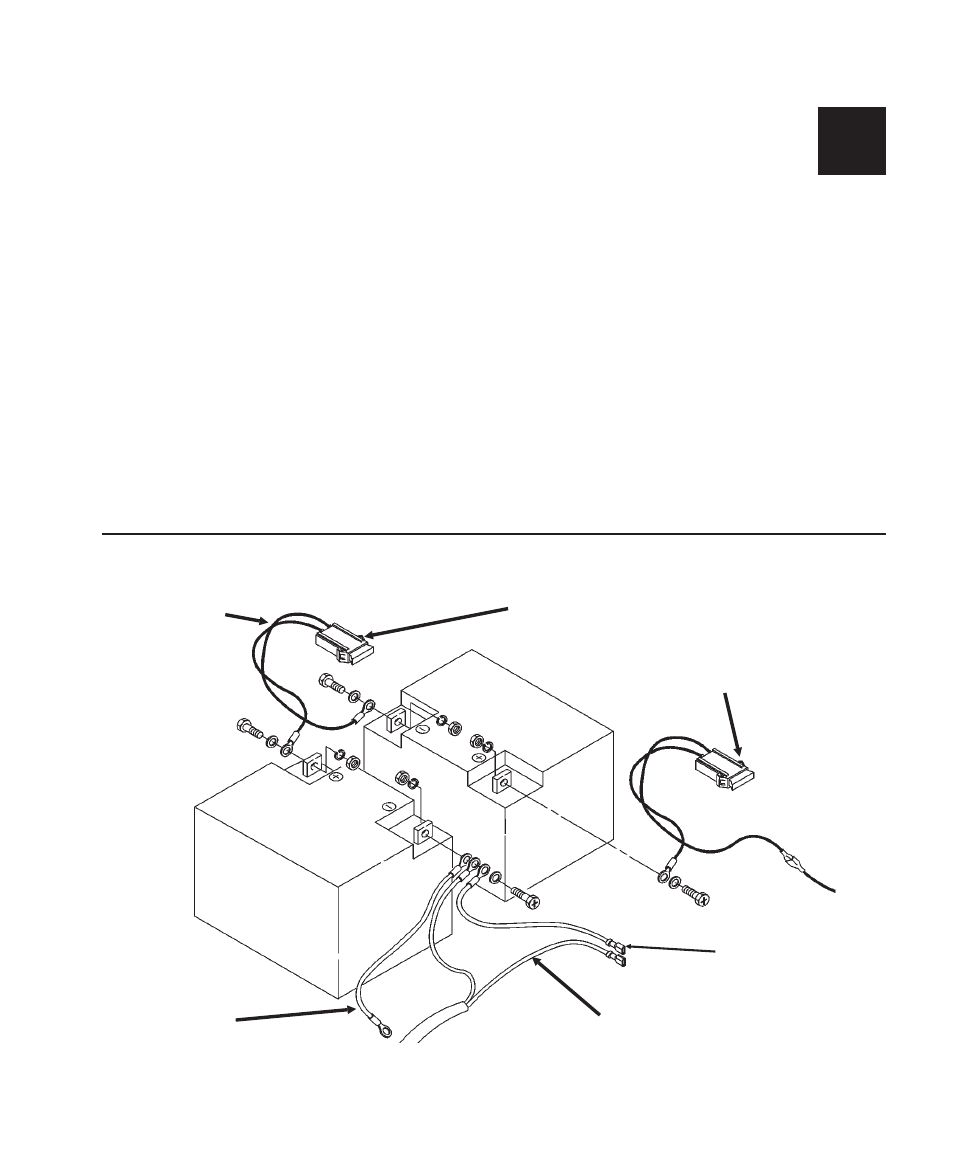

S t a n d a r d o r S y m b o l 2 4 V D C

Power Options 4-1

Green Wire
Ground to Station Floor

BlackWire (-) to
Terminal Block

Red Stripe
Wire to Terminal Block

Black
Wires

20 Amp
Fuse Jumper
Connect, F2

BAT 1

BAT 2

20 Amp Fuse, F1
