Chapter 2: Hardware Installation
This chapter offers information about installing your router. If you are not familiar with
the hardware or software parameters presented here, please consult your service
provider for the values needed.
2.1 System Requirement
1. Personal computer (PC)
2. Pentium II 233 MHz processor minimum
3. 32 MB RAM minimum
4. 20 MB of free disk space minimum
2.2 Hardware Installation
This section describes how to connect and configure VDSL2 ROUTER.
Step 1. Connect the VDSL2 Line
There are two ways to connect VC-200M or VC-2000S.
I. Connect the supplied RJ11 cable to VDSL2 ports between VC-200M and
VC-200S.
II. Uses the supplied RJ-11cable connects to VC-200M or VC-200S with your
phone company.

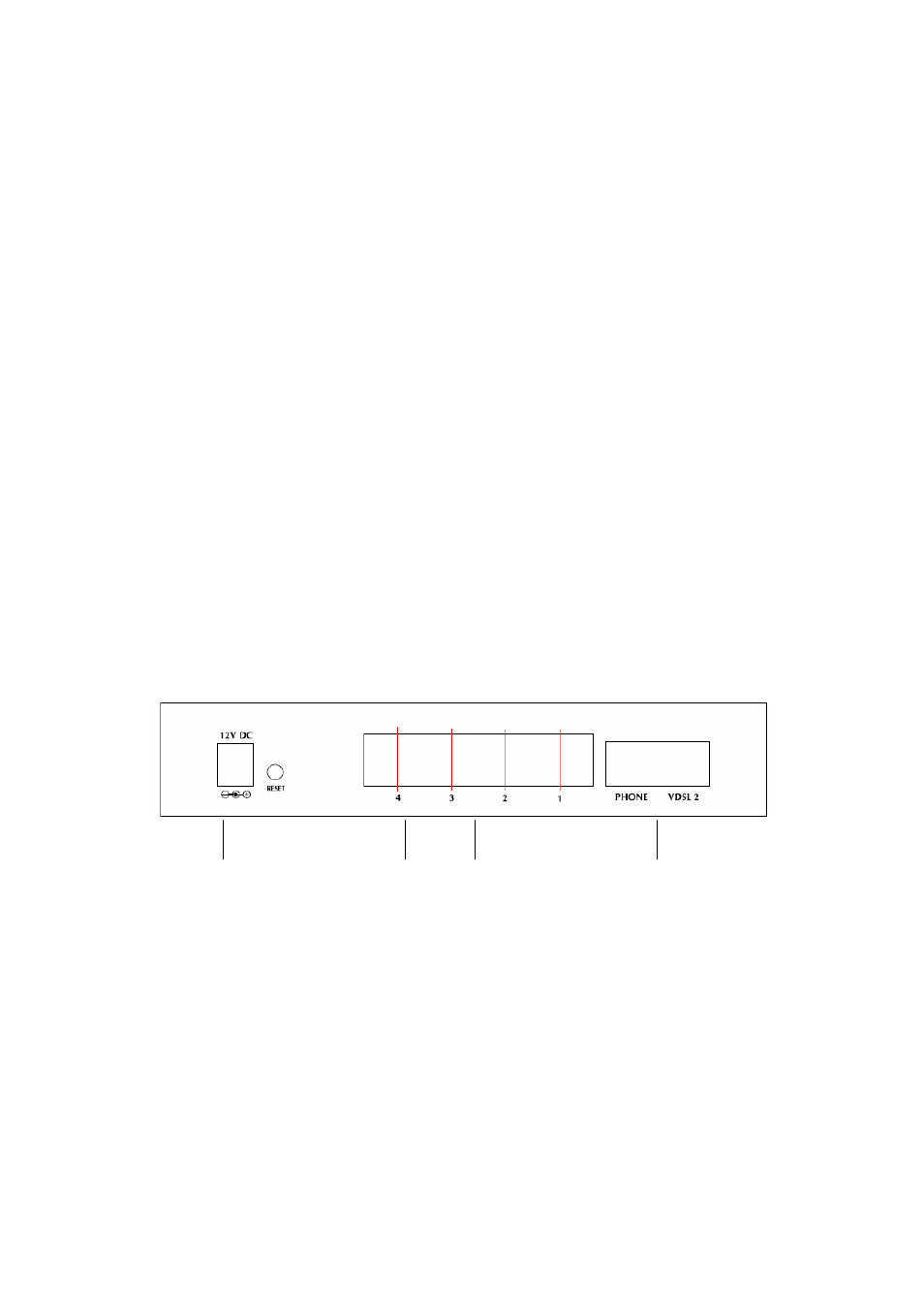

Power Adapter To PC/Hub To VDSL2/Phone Line
