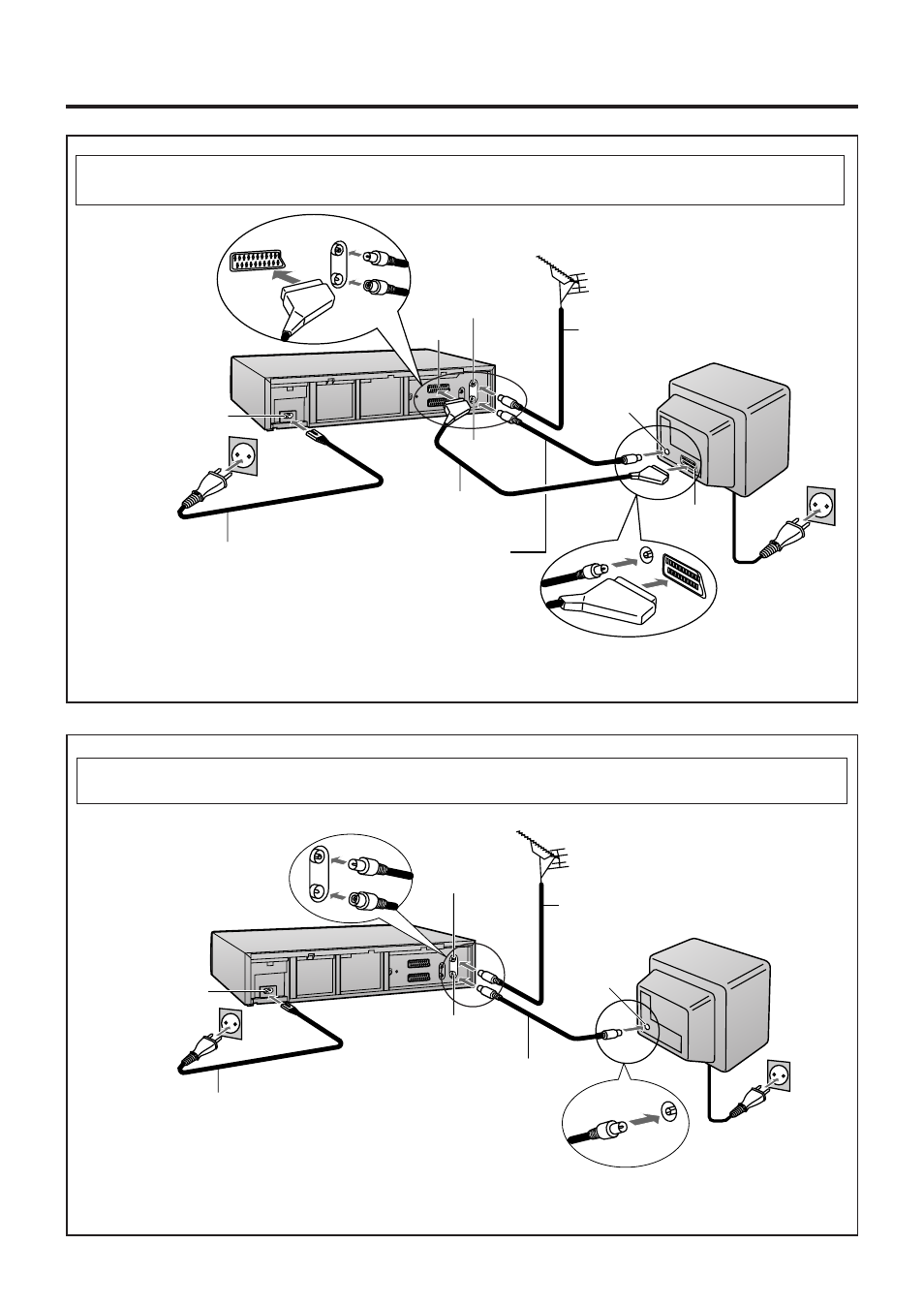

Connecting and Preparations for a TV Not Equipped with
the Q Link Function
Aerial (not supplied)
Aerial lead
(not supplied)
TV (not supplied)
Aerial Input
socket
To AC Mains
socket
RF Coaxial cable (supplied)
≥ Must be connected to
watch TV channels.
AC Mains lead (supplied)
or Method 2. If you are connecting your VCR to a TV using only RF coaxial cable, then follow the
steps below. (RF Connection)
After completing the above connections, proceed to the Auto Setup page (Page 14).
Aerial (not supplied)
Aerial Input
socket n
21-pin Scart
socket k
Aerial lead
(not supplied)
TV (not supplied)
AC Input
socket h
Aerial Output
socket o
Aerial Input
socket
21-pin Scart
socket
To AC Mains
socket
RF Coaxial cable (supplied)
≥
Must be connected to
watch TV channels even if
21-pin Scart cable is used
to connect VCR to TV.
AC Mains lead
(supplied)
21- Scart cable to AV1
(not supplied)
Method 1. If you are connecting your VCR to a TV using RF coaxial cable and 21-pin Scart cable, then
follow the steps below. (AV Connection)
After completing the above connections, proceed to the Auto Setup page (Page 13).
Aerial Input
socket n
AC Input
socket h
Aerial Output
socket o
