Installation Procedure

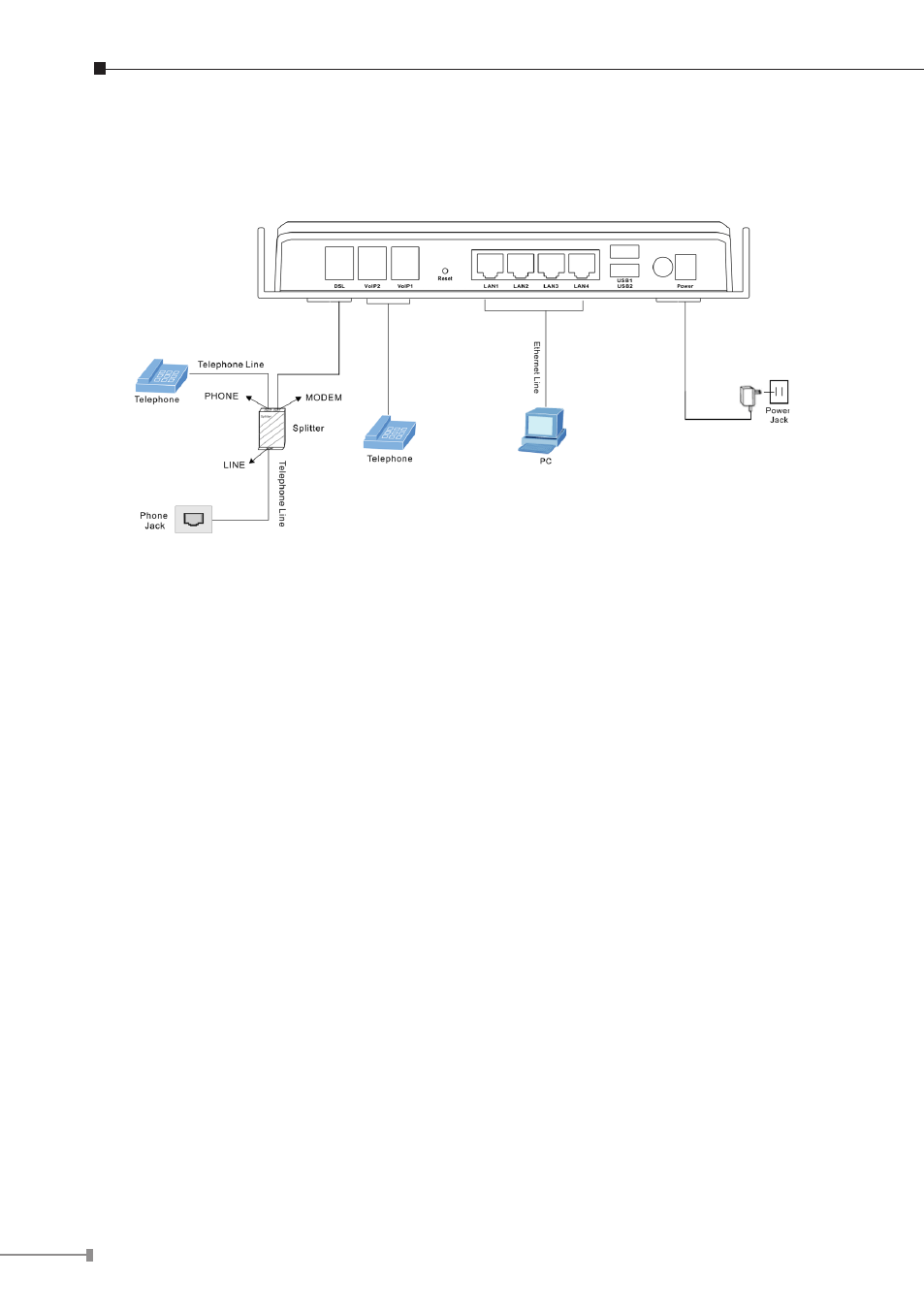

Please connect the device to you computer as below diagram:

1. Choose an Installation Site
Select a suitable place on the network to install the IAD-300.

2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on the IAD-

300. Both 10Base-T and 100Base-TX connections can be used simultaneously.

3. Connect ADSL Cable
Connect the ADSL cable from the DSL port on the IAD-300 (the RJ-11

connector) to the ADSL terminator provided by your ISP.

4. Power Up
Connect the supplied power adapter to the IAD-300. Use only the power adapter

provided. Using a different one may cause hardware damage.

5. Check the LEDs

• The Power LED should be ON.
• The Link LED should be ON if ADSL line is connected.
• For each LAN (PC) connection, one of the LAN LEDs should be ON (provided

the PC is also ON.)
