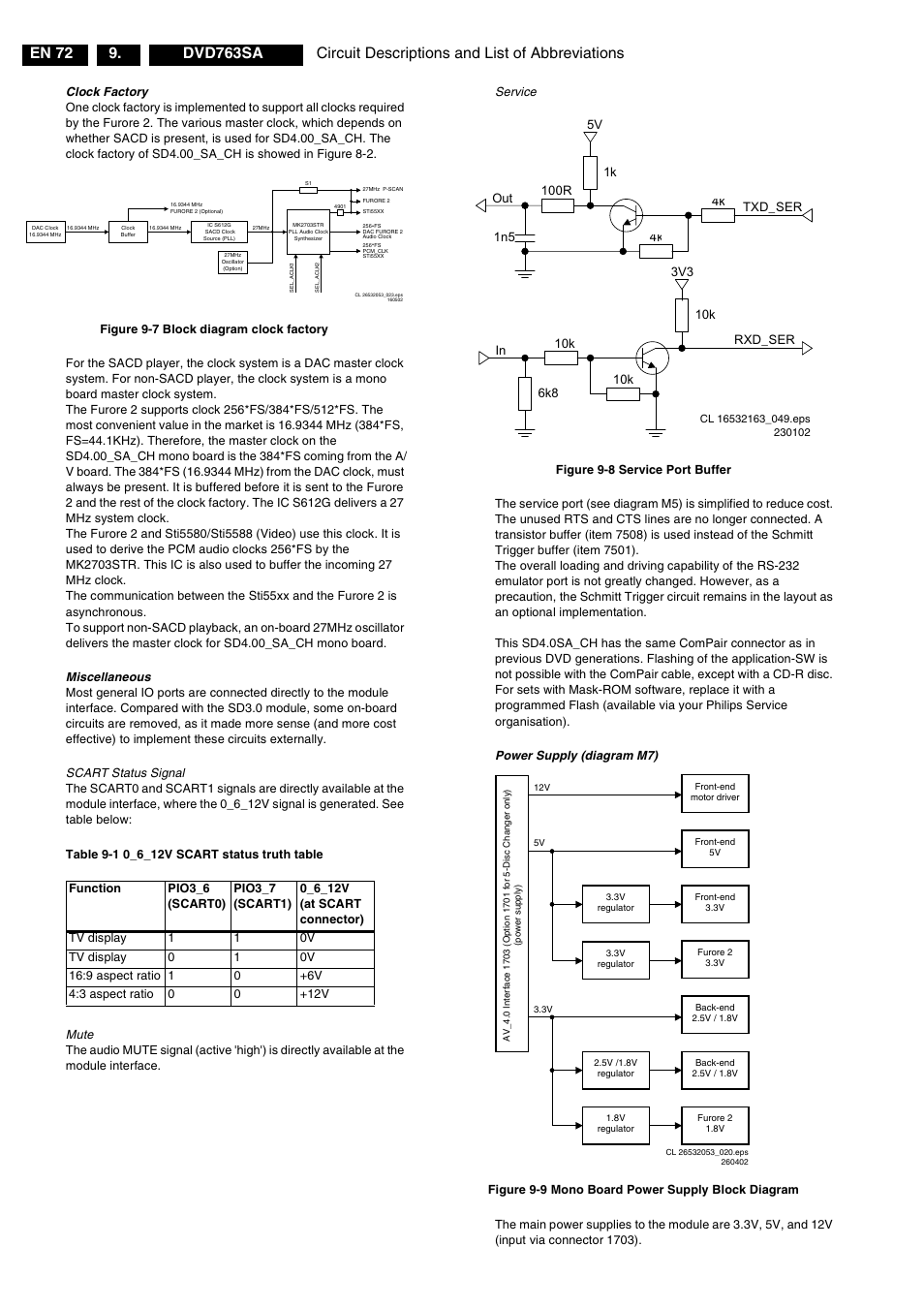

Clock factory, Figure 9-7 block diagram clock factory, Miscellaneous – Philips DVD763SA/001 User Manual
Page 57: Scart status signal, Table 9-1 0_6_12v scart status truth table, Mute, Service, Figure 9-8 service port buffer, Power supply (diagram m7), Figure 9-9 mono board power supply block diagram
Clock factory, Figure 9-7 block diagram clock factory, Miscellaneous | Scart status signal, Table 9-1 0_6_12v scart status truth table, Mute, Service, Figure 9-8 service port buffer, Power supply (diagram m7), Figure 9-9 mono board power supply block diagram | Philips DVD763SA/001 User Manual | Page 57 / 64 This manual is related to the following products:
