Transcoder Menu Commands
The following subsections describe how to access and use the Transcoder Menu commands.
Access the Transcoder Menu
1. Access the CodePlus Transcoder Series web GUI as described on page 16.
2. With the Homepage on display, click on the
Transcoder menu tab or link.
The Transcoder Menu (see example below) enables you to view and modify selected transcoder
card configuration settings.

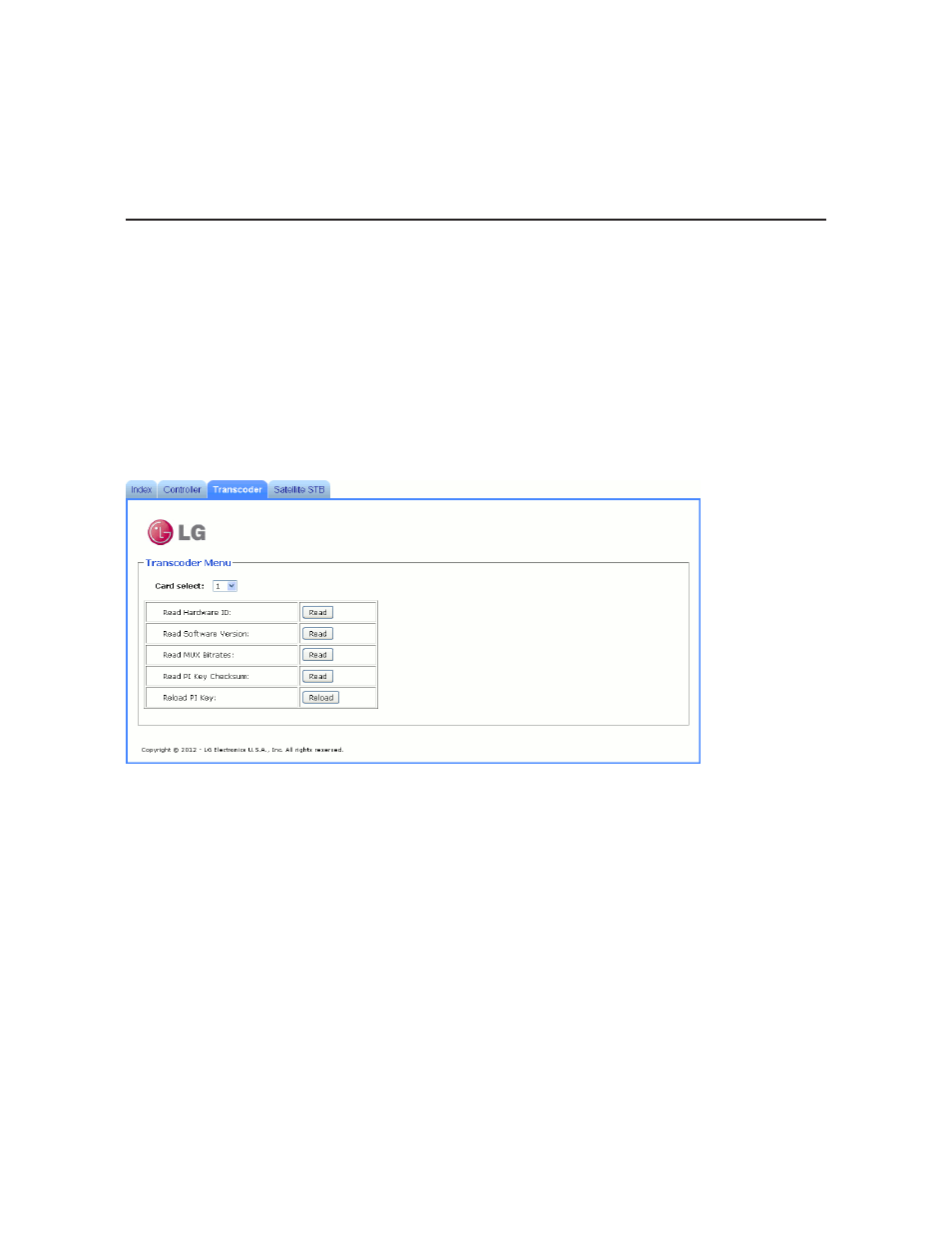

Example: Transcoder Menu
View Hardware Information for a Selected Transcoder
1. With the Transcoder Menu on display, click on the down arrow at the right of the Card
Select field, and select the appropriate transcoder card from the drop-down list of options.
2. Click on the
Read button at the right of the Read Hardware ID field to view the selected
card’s hardware ID (firmware version), for example:
Card 1:
Card HWID# is: 7720-v1.1-2011-1026
