Figure 11 – Life Fitness Parabody 829 User Manual

Page 9

background image

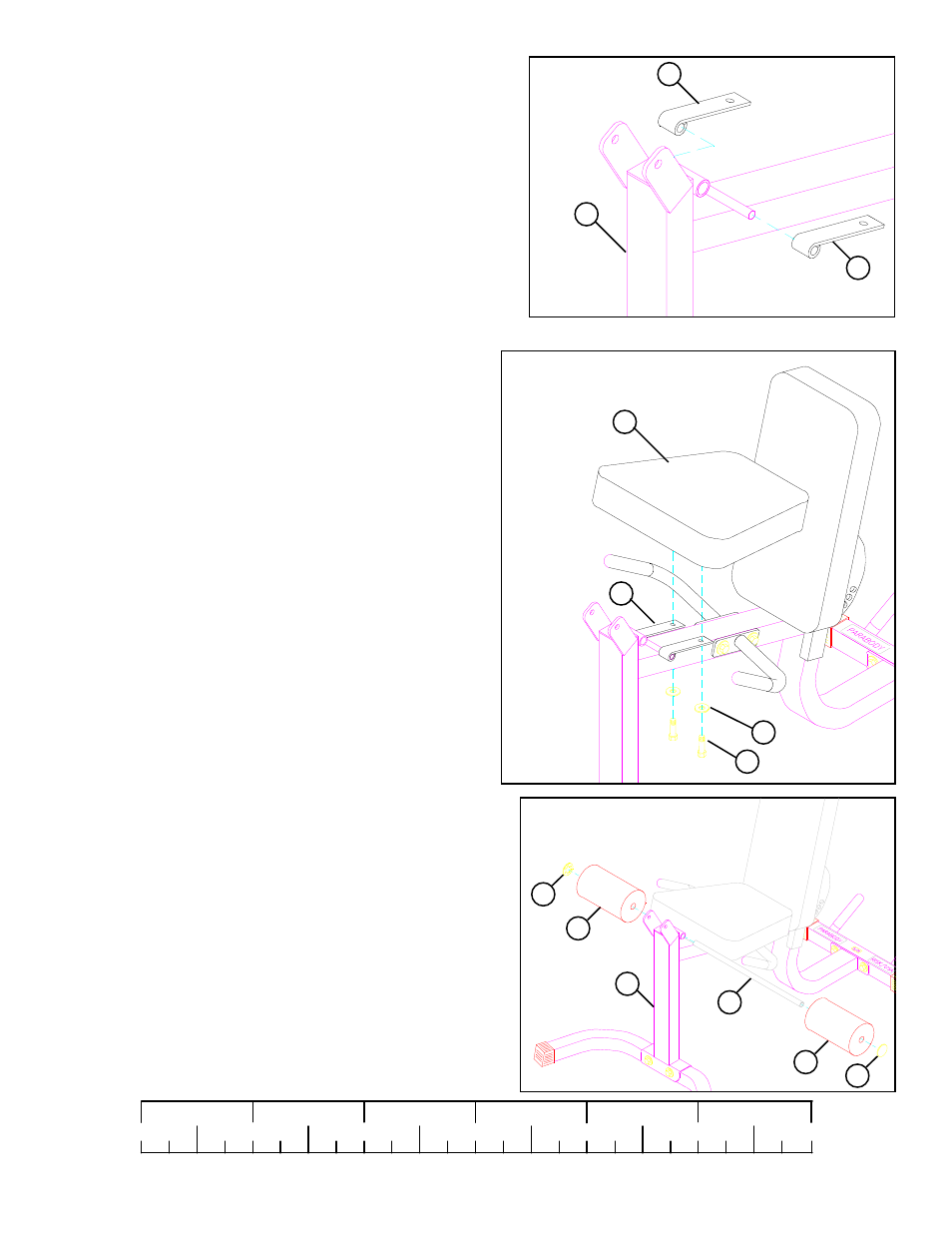

Slide two HINGE TABS (31) over posts on
LEG FRAME (11). See FIGURE 11.

STEP 13

:

31

31

FIGURE 12

FIGURE 13

Securely attach the SEAT PAD (8) to the
HINGE TABS (31) using two 3/8 X 1”
BOLTS (19) and two 3/8” FLAT WASH-
ERS (24). See FIGURE 12.

STEP 14

:

8

19 3/8 X 1”

24

31

14

35

9

Attach two ROLLER PADS (15) to the
LEG FRAME (11) using one 17” ROLLER
PAD SHAFT (14) and two STARLOCK
COLLARS (35). See FIGURE 13.
