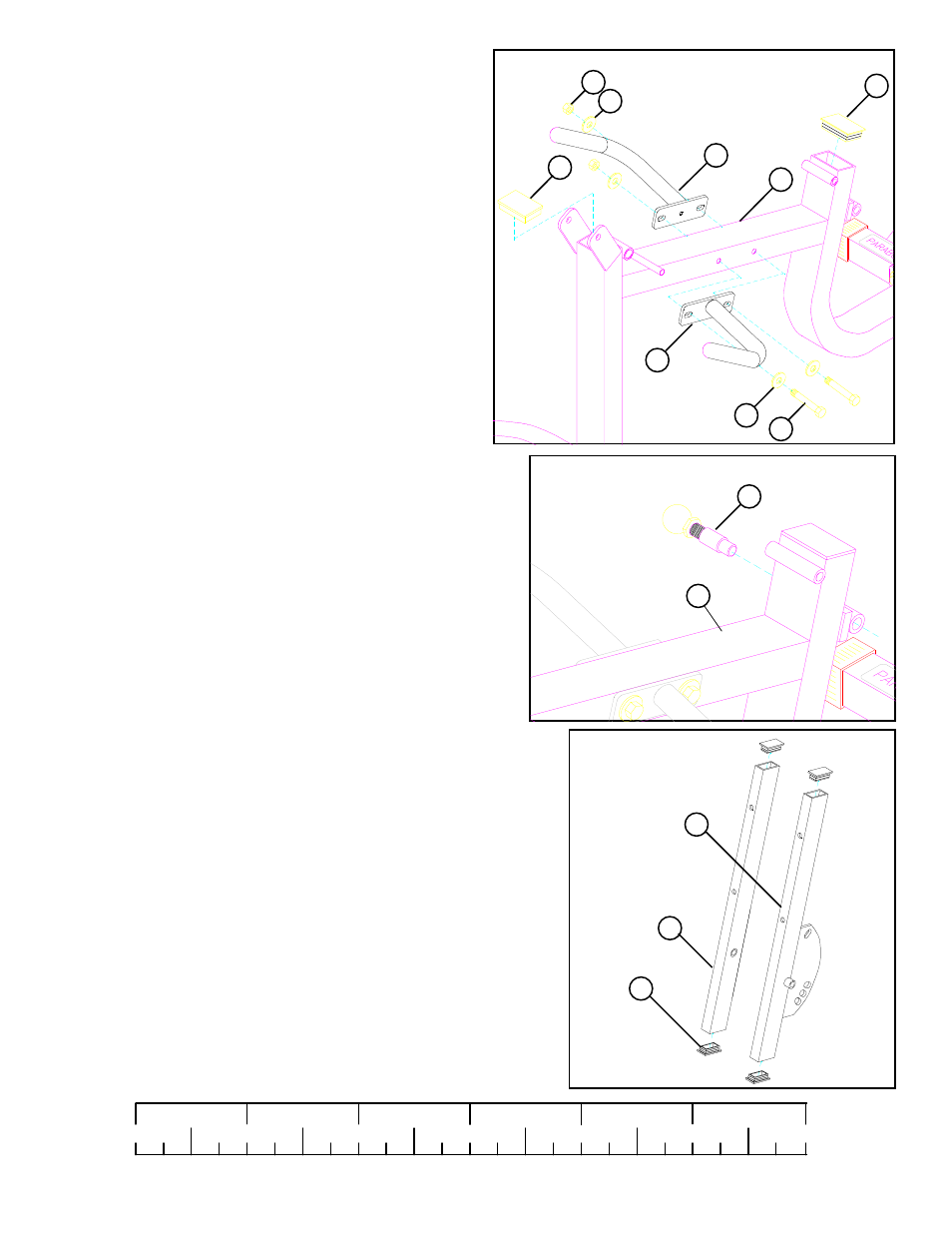

Securely assemble RIGHT (9) & LEFT (10)
LEG EXT HANDLES to LEG FRAME (11)
using two 3/8 X 4” BOLTS (21), four 3/8”
FLAT WASHERS (24) , and two 3/8” LOW
HEIGHT NYLOCK NUTS (27). See FIG-
URE 5. STEP 6 :
FIGURE 5
11
10
27 LOW HEIGHT
9
29
29
24
Insert two 3 X 2” END CAPS (29) into
the leg frame as shown in FIGURE 5. STEP 7 :
FIGURE 6
2
3
30
FIGURE 7
Securely assemble one 1/2” SPRING PIN AS-
SEMBLY (18) into the spring pin barrel on the
LEG FRAME (11) as shown in FIGURE 6. STEP 8 :
Insert four 2 X 1” END CAPS (30) into the ends
of the BACK PAD ADJUST TUBE (2) & BACK
PAD SUPPORT TUBE (3). See FIGURE 7. STEP 9 :
21 3/8 X 4”
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
24
18
11
