Insert two 1/2” FLANGE BEARINGS
(34) into the LEG CURL/EXTENSION
(6). See FIGURE 17. STEP 20 :
11
Attach one 3/4” SQUARE RUBBER
BUMPER (32) between the contact point
of the LEG CURL/EXTENSION (6) and
the LEG FRAME (11).See FIGURE 17. STEP 22 :
6
11
34
32
22 1/2 X 4”
Securely assemble LEG CURL/EX-
TENSION (6) to LEG FRAME (11)
using one 1/2 X 4” BOLT (22) and one
1/2” LOW HEIGHT NYLOCK NUT
(26). (NOTE: SECURELY TIGHT-
EN BOLT THEN BACK NUT OFF
1/4 TURN TO ALLOW THE PART
TO ROTATE FREELY.) See FIG-
URE 17 STEP 21 :

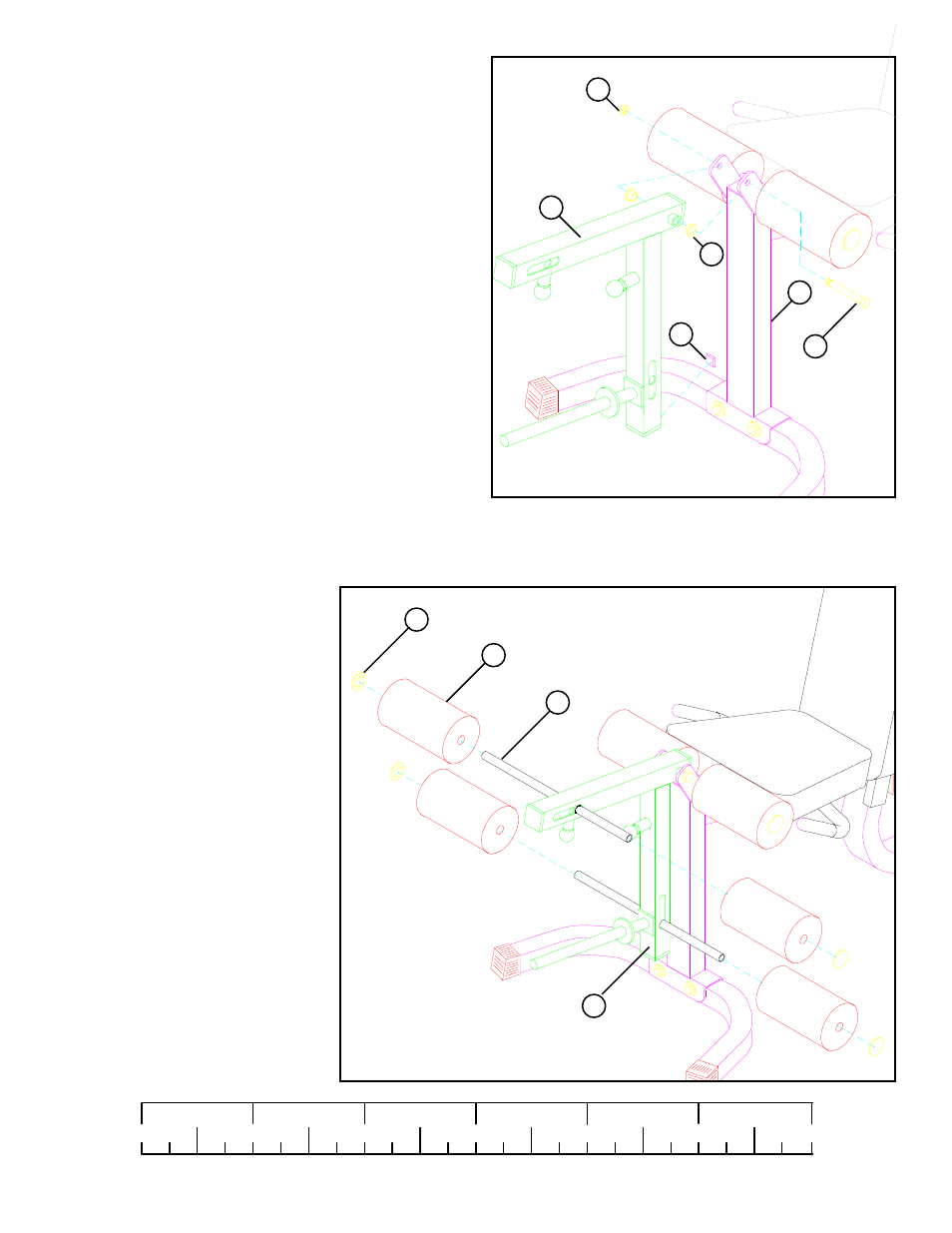

FIGURE 17
26 LOW HEIGHT
STEP 23 : Attach four ROLLER PADS (15) to the LEG CURL/EXTENSION (6) using two 16”
ROLLER PAD SHAFTS (13) and four STARLOCK COLLARS (35). See FIGURE 18.
FIGURE 18
35
15
13
6
THIS CONCLUDES THE ASSEMBLY
OF THE PARABODY 829
LEG CURL/EXTENSION
0 1 2 3 4 5 6
1/2 1/2 1/2 1/2 1/2 1/2
