Life Fitness Parabody 829 - Manual (Page 8)

26
11
3
2

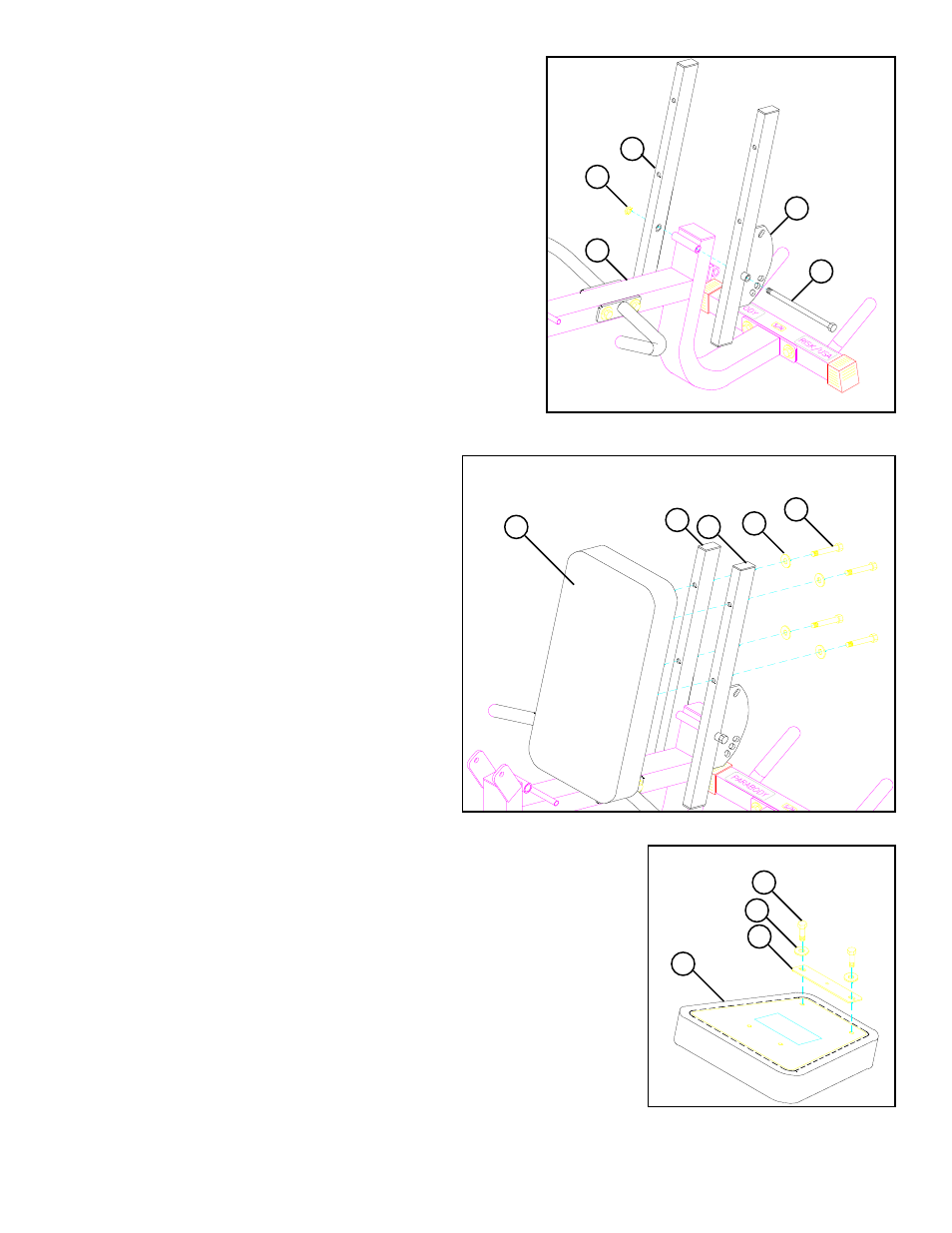

Securely assemble BACK PAD ADJUST
TUBE (2) & BACK PAD SUPPORT TUBE
(3) to LEG FRAME (11) using one 1/2 X 7”
BOLT (23) and one 1/2” LOW HEIGHT
NYLOCK NUT (26). (NOTE: SECURELY
TIGHTEN BOLT THEN BACK NUT OFF
1/4 TURN TO ALLOW THE TWO PARTS
TO ROTATE FREELY.) See FIGURE 8. STEP 10 :
Securely attach the BACK PAD (7)
to the BACK PAD TUBES (2 & 3)
using four 3/8 X 3” BOLTS (20)
and four 3/8” FLAT WASHERS
(24). See FIGURE 9. STEP 11 :
FIGURE 8
FIGURE 9
24
2
3
7
20 3/8 X 3”
Securely fasten 2 X 8” PLATE (16) to bottom of SEAT
PAD (8) using two 3/8 X 1” BOLTS (19) and two 3/8”
FLAT WASHERS (24). See FIGURE 10. STEP 12 :
FIGURE 10
8
23 1/2 X 7”
8
19 3/8 X 1”
16
24
