2.
Remove
the
drive
from
the
bag.
If
you
must
put
the
drive
down,
place
the
antistatic
bag
on
a
flat,
padded
surface,
such
as
a
magazine,
and
place
the
drive
on
the
antistatic
bag.
Step
3.
Mounting
the
drive
in
the
bay
Attention:
Be
sure
to
use
the
mounting
screws
in
the
option
package
when
you
are
driving
screws
directly
into
the
drive.
Using
screws
that
are
too
long
might
damage
the
drive.
You
can
mount
the
CD-RW/DVD-ROM
Combination
Drive
horizontally
or
vertically
in
the
computer.
If
you
mount
the
drive
vertically,
you
must
secure
any
discs
that
you
place
into
the
drive
before
the
drive
tray
is
closed,
or
the
CD-RW/DVD-ROM
Combination
Drive
will
not
be
able
to
read
the
disc
properly.
1.
Slide
the
drive
into
the
bay.
Your
computer
might
have
specific
required
procedures
for
installing
storage
devices.
For
more
information
on
storage
devices,
refer
to
the
documentation
that
comes
with
your
computer.
2.
Align
the
drive-bay
screw
holes
with
the
threaded
holes
in
the
drive
housing
or
mounting
bracket.
3.
Thread
the
screws
in
loosely
to
check
their
position.
Two
screws
are
usually
used
on
each
side.
Verify
that
the
alignment
is
correct;
then
tighten
the
screws
to
secure
the
drive.
Do
not
over
tighten.
Step
4.
Attaching
the
cables
to
the
drive
and
main
board

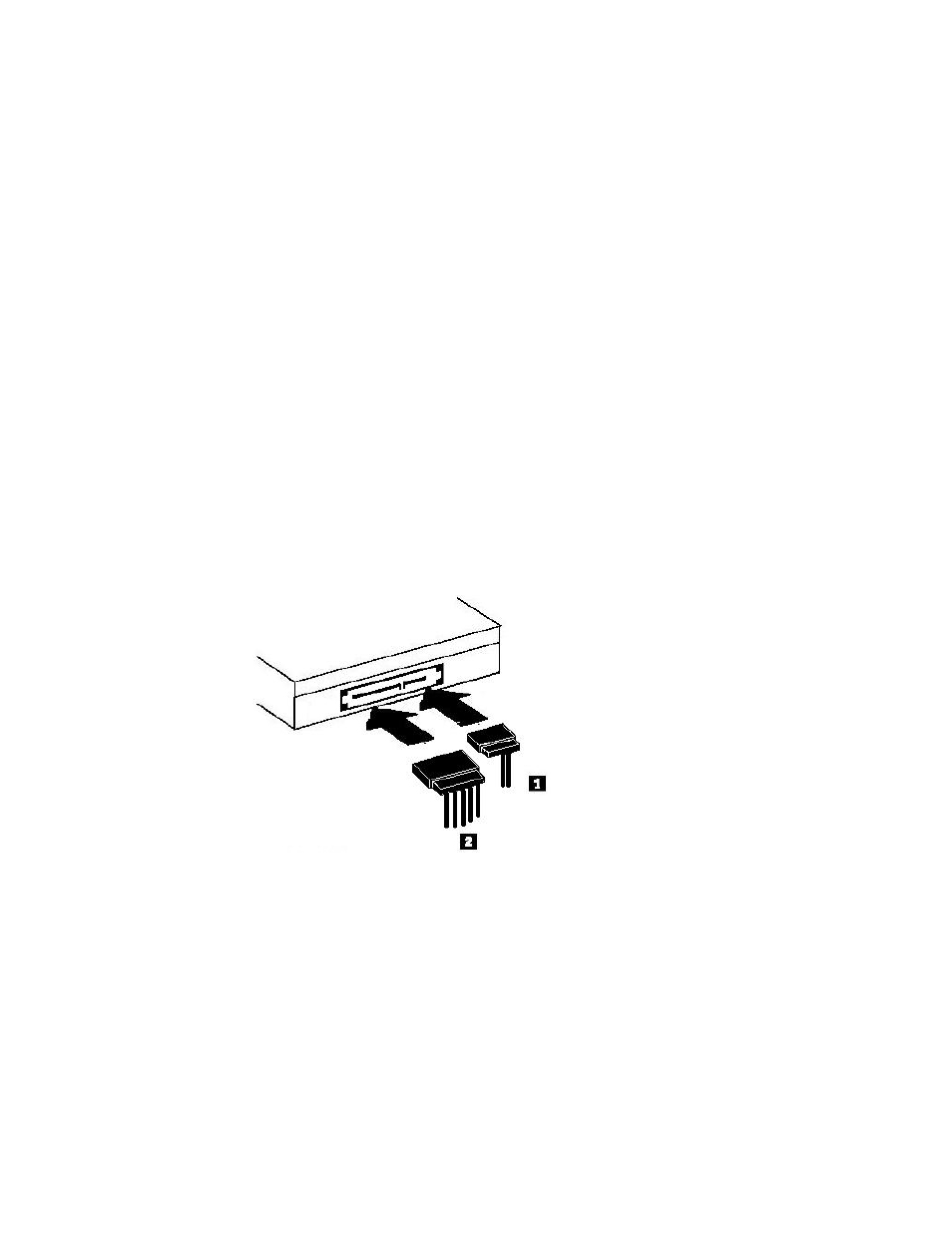

The
following
diagram
shows
where
to
connect
the
cables
to
the
drive.
1.
Attach
a
7-pin
Serial
ATA
data
cable
connector 1 to
the
Serial
connector
on
the
drive.
2.
Attach
a
15-pin
power
cable
connector 2 to
the
power
connector
on
the
drive.
3.
Attaching
the
cables
to
the
main
board.
If
your
computer
has
more
than
two
Serial
ATA
connectors,
use
the
second
or
third
connector
to
connect
the
drive.
Please
refer
to
your
system
documentation
for
detail
hardware
installation
operation.
Be
sure
that
the
cables
will
not
be
pinched
or
crowded
by
the
computer
cover
and
that
all
other
cable
and
power
connections
are
secure.
