STEP 2:
‰ LOOSELY attach BASE PLATFORM (2) to front of FRONT UPRIGHT (1) using two 3/8 x 3/4” BOLTS (31),
and two 3/8 WASHERS (28).
‰ LOOSELY attach the BASE PLATFORM (2) to the sides of UPRIGHTS (4) and (5) using two 3/8 x 3-1/2
BOLTS (34) and two 3/8 WASHERS (28)
‰ Assemble TOP BACK COVER (16) to UPRIGHT FRAMES using two METAL SCREWS (25)
‰ LOOSELY attach TOP FRONT (17) COVERS to UPRIGHT FRAME using two METAL SCREW (25)
‰ Then attach TOP FRONT COVER (17) to BACK TOP COVER (16) using six PLASTIC SCREWS (26)
‰ ADJUST FRAME UNTIL IT IS ALIGNED AND THEN SECURELY TIGHTEN ALL FRAME
CONNECTIONS AND PLASTIC SCREWS.
8
SECURELY TIGHTEN TOP PULLEY
ASSEMBLY (7) AFTER INSTALLING COVER (16)
3/8 x 3-1/2
3/8 x 3/4
6-20 x 1/2
10-32 x 3/8
DO NOT TIGHTEN LOWER FRAME COMPONENTS
UNTIL TOP COVERS ARE INSTALLED

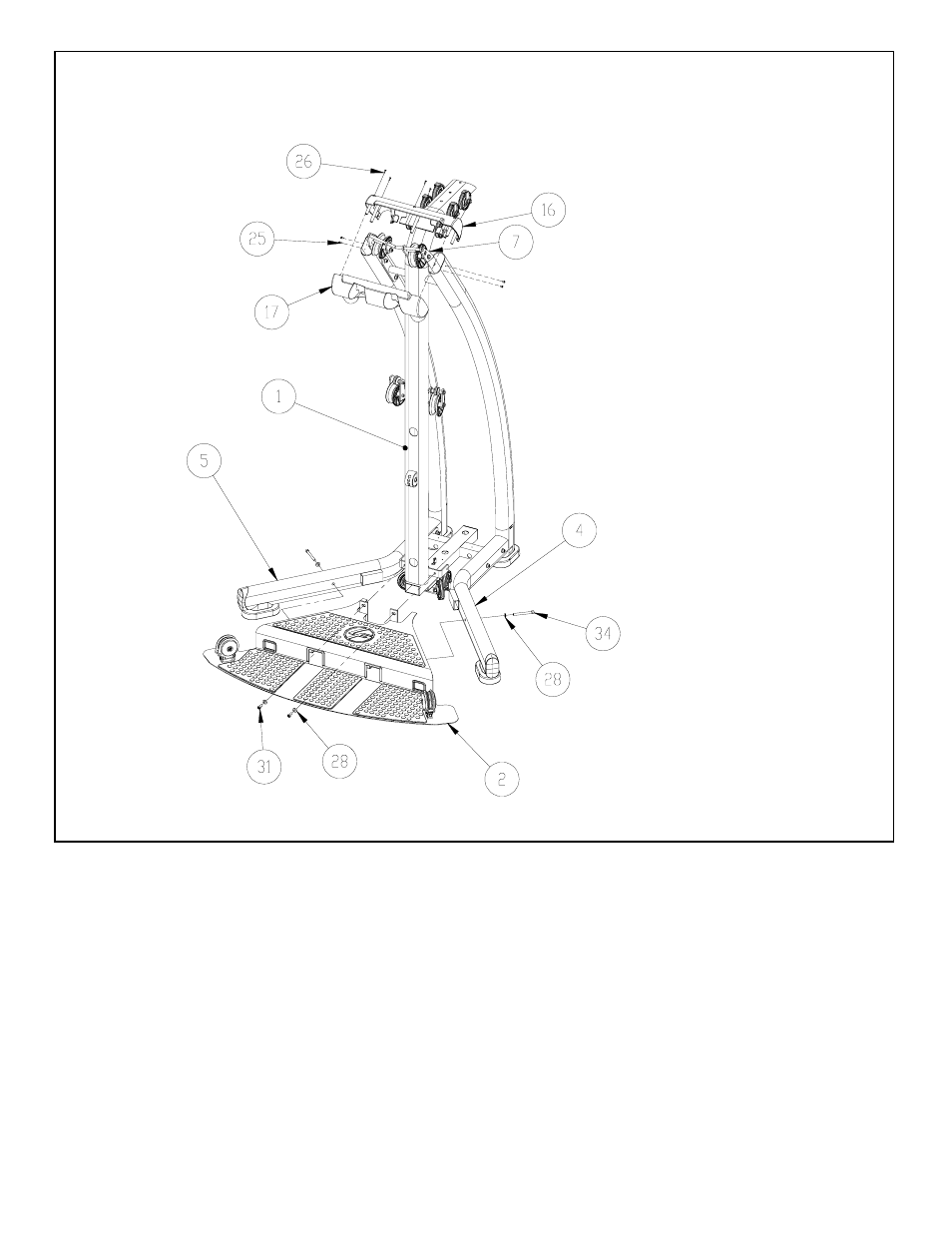

FIGURE 2
!! DO NOT OVERTIGHTEN
SCREWS (25) AND (26)
