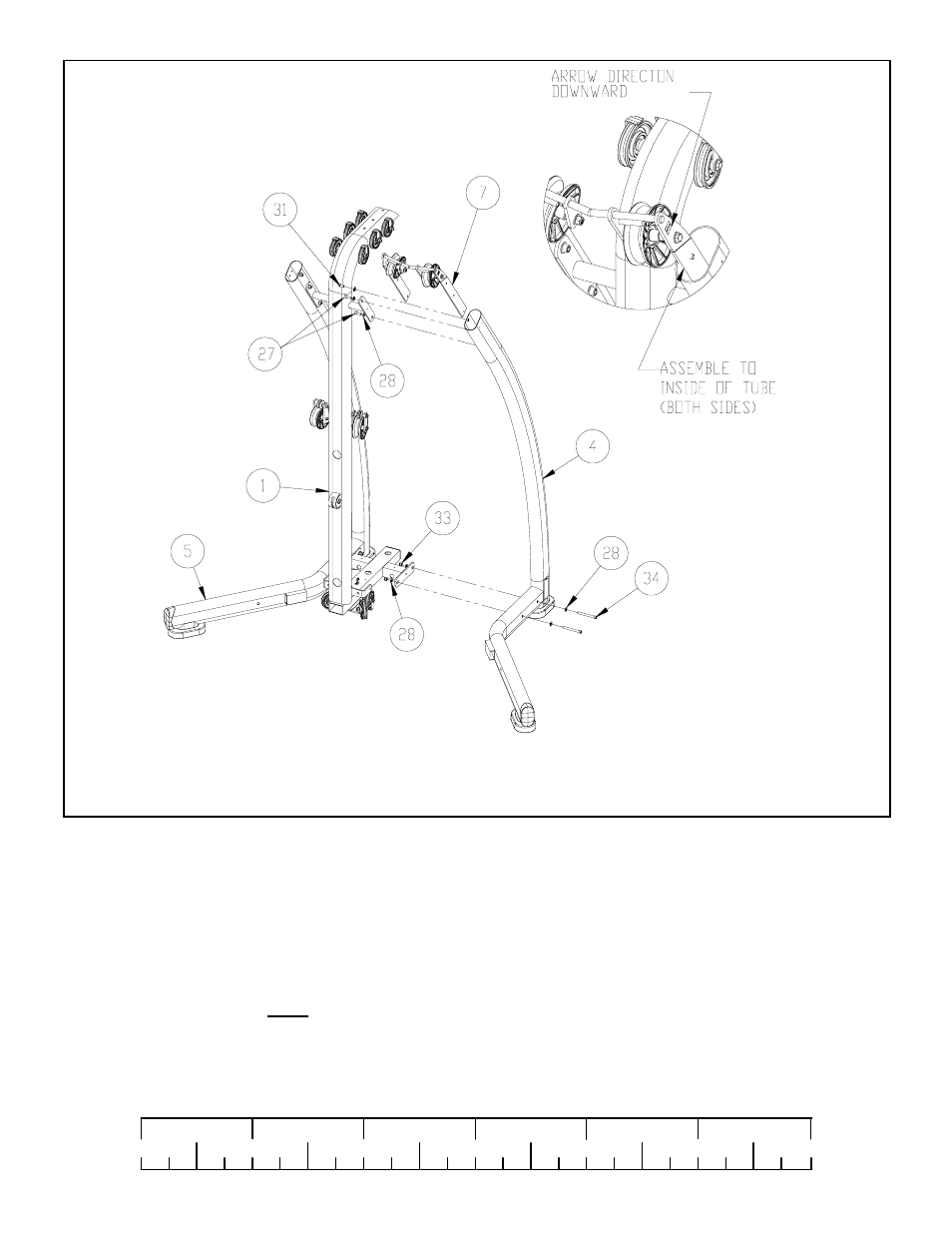

FIGURE 1
STEP 1:
‰ LOOSELY assemble bottom of the LEFT UPRIGHT (4) and RIGHT UPRIGHT (5) to FRONT UPRIGHT (1)
using four 3/8 x 3-1/2 BOLTS (34), eight 3/8 WASHERS (28) and four 3/8 NUTS (33) and TOP PULLEYS (7)
‰ LOOSELY assemble the top of the LEFT UPRIGHT (4) and RIGHT UPRIGHT (5) to FRONT UPRIGHT (1)
and TOP PULLEYS (7), using four 3/8 x 1” BOLTS (27) for bottom four holes, two 3/8 x 3/4 BOLTS (31) for
top two holes and six 3/8 WASHERS (28) as illustrated in FIGURE 1.
‰ SECURLEY TIGHTEN ONLY THE UPPER TWO 3/8 X 3/4” BOLTS
NOTE:
THE TOP PULLEY WELDMENT ATTACHES TO THE INSIDE OF THE UPRIGHT SIDES AND THE
ORIENTATION SHOULD BE SO THE ARROW POINTS FORWARD AS SHOWN
3/8 x 3/4
3/8 x 1”
3/8 x 3-1/2
SECURLEY TIGHTEN
