Figure 5 – Life Fitness FIT 1.0 CM User Manual
Page 12

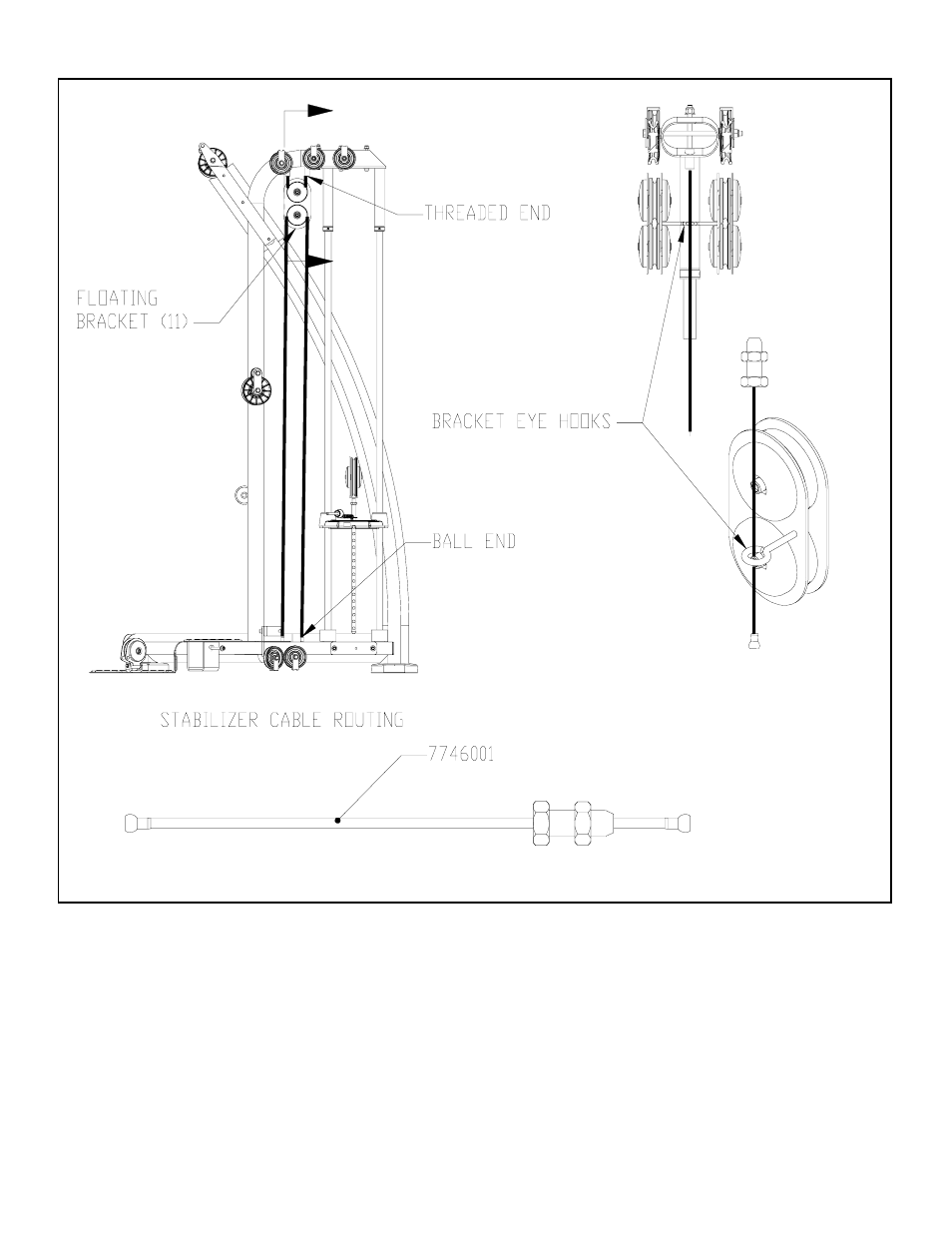

STEP 5:
Insert ball end of GUIDE CABLE 7746001 (42) through eye hook on FLOATING PULLEY BRACKET (11), insert and hook
ball end of cable into slotted bushing located at the bottom of frame.
Screw threaded end of cable into the FRONT UPRIGHT (1) and loosely tighten cable by screwing JAM NUT to top of
FRAME
REPEAT ABOVE PROCESS FOR OTHER GUIDE CABLE (42)
12
FIGURE 5
