Figure 6 – Life Fitness FIT 1.0 CM User Manual
Page 13

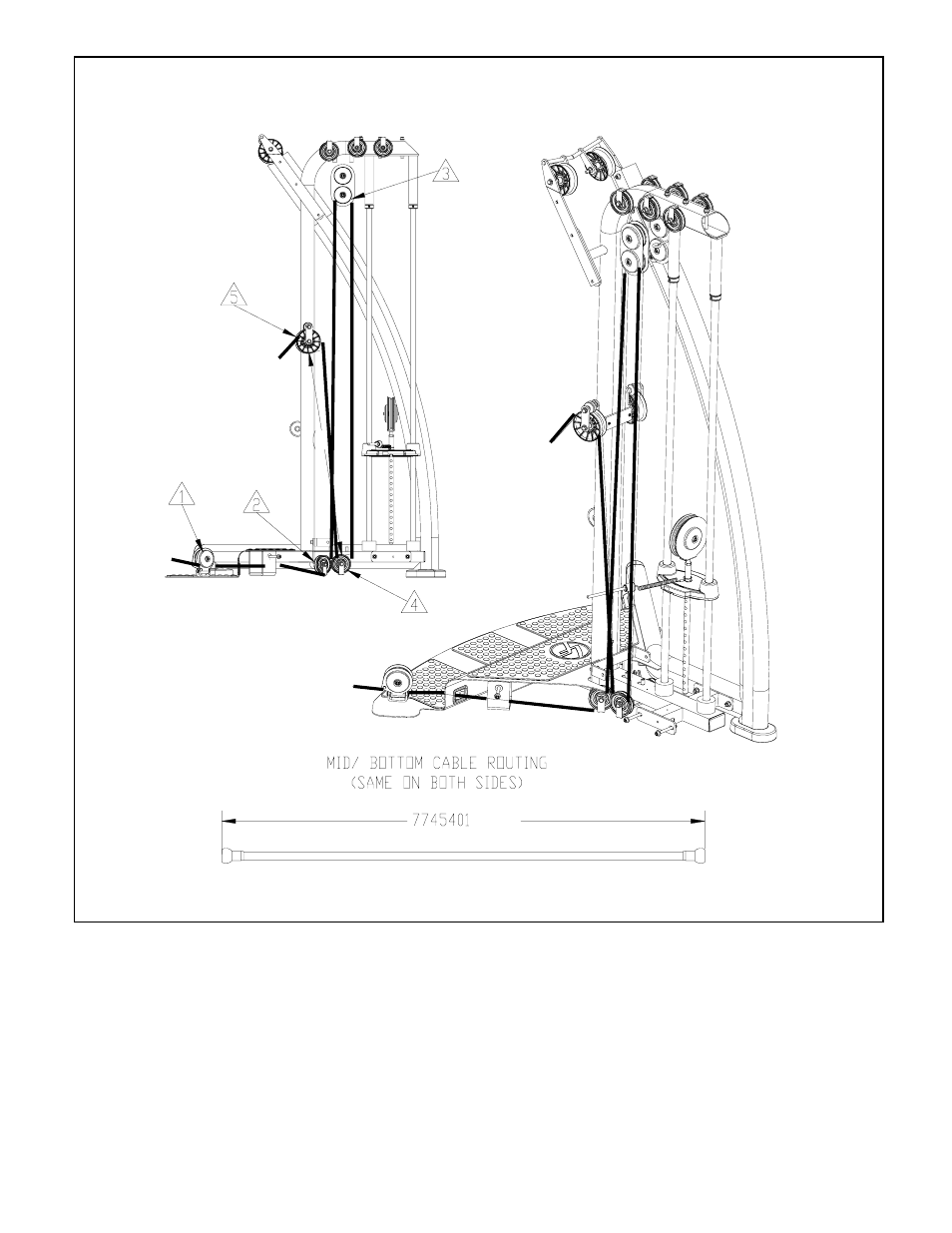

MUST DISASSEMBLE ONE END OF CABLE AND REASSEMBLY AFTER ROUTING (SEE FIG 7 PAGE 14)
STEP 6:
Insert ball end of LONG CABLE 7745401 (44) under pulley #1 and thru slot in BASE PLATFORM (2).
Run cable underneath and up the back side of pulley #2. Then run cable up and around the front and down
the back side of pulley #3. Run cable to back side of pulley #4 around and up the front side to the back side
and over the top of pulley #5 and out to the front.
CABLE MUST BE INSERTED BETWEEN PULLEY AND PULLEY GUIDE AND MOVE FREELY
13
FIGURE 6
