Add Group:

Create a new Port-based VLAN. Input the VLAN name and choose the
member by ticking the check box beside the port No., then, press the
button to have the setting taken effect.

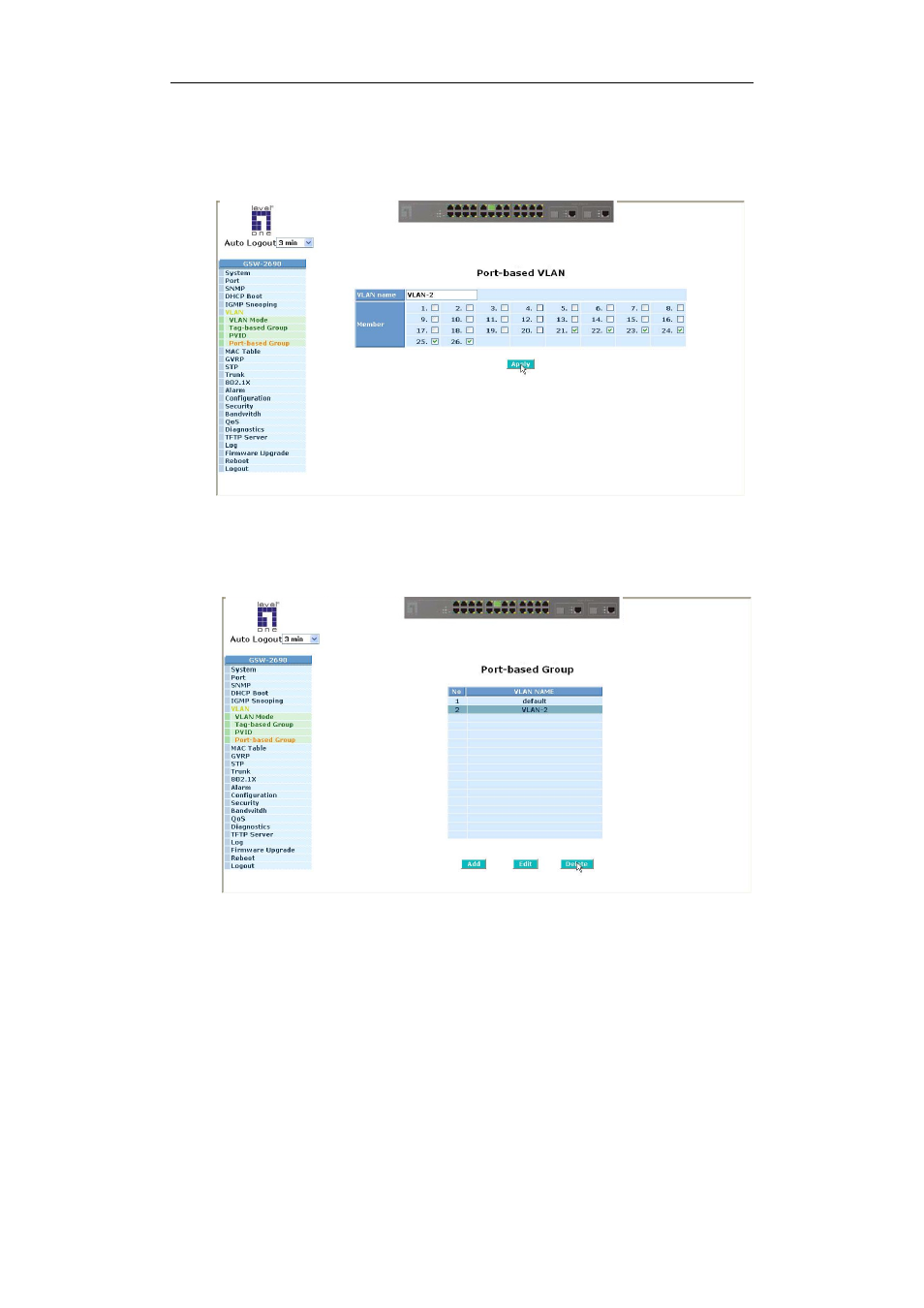

Fig. 3-24

Delete Group:

Just press the button to remove the selected group entry from
the Port-based group table.

Fig. 3-25

Edit a group:

Just select a group entry and press the button, then you can
modify a group‘s description and member set.
