DEFINITY® Enterprise Communications Server Release 7
Console Operations Quick Reference
555-230-890
Issue 3
June 1999
Console Operations
6
Basic Operation

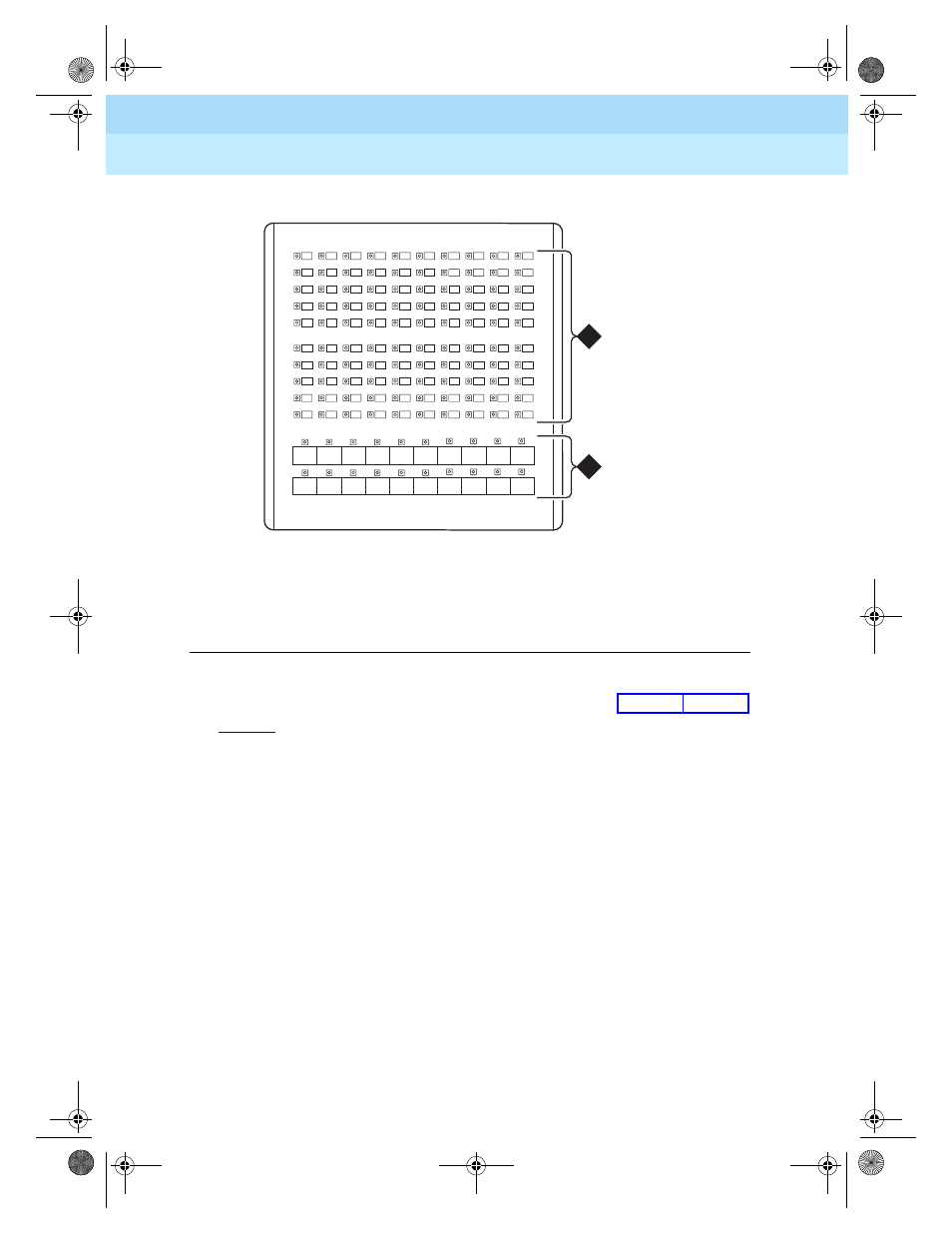

Figure 3.
DXS Selector Console
The following list items correspond with the callouts shown in
and
Figure 3
. All the feature buttons, trunk access buttons, and display buttons are
on this console. The DXS Selector Console allows you to dial an extension
number and view the status for each extension.
■
Lamp Test Switch — This is a switch under the front panel of the
Model 302A/B console that allows you to test the console lamps. The test
starts when you press the switch and stops when you release the switch.
On the Model 302C console, you must press simultaneously and hold the
POS BUSY
and
VOLUME UP
buttons to test the console lamps. The test starts
when you press the buttons and stops when you release the buttons.
■
Handset — This is a standard handset with coiled cord and a dual-prong,
phone-plug connector. The handset can be unplugged from the console and
replaced with an amplified headset that also uses a dual-prong, phone-plug
connector.
■
Handset Cradle — This is where you place the handset when it is not in
use. If you use a headset, the handset cradle can be removed from the
console.
1)
DXS Hundreds
Group Select Buttons
2)
DXS/BLF Buttons
10
11
12
13
14
15
16
17
18
19
00
01
02
03
04
05
06
07
08
09
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
phdgdxs KLC 031199
1
2
