Figure 6 – Life Fitness Parabody 807 User Manual
Page 11
11

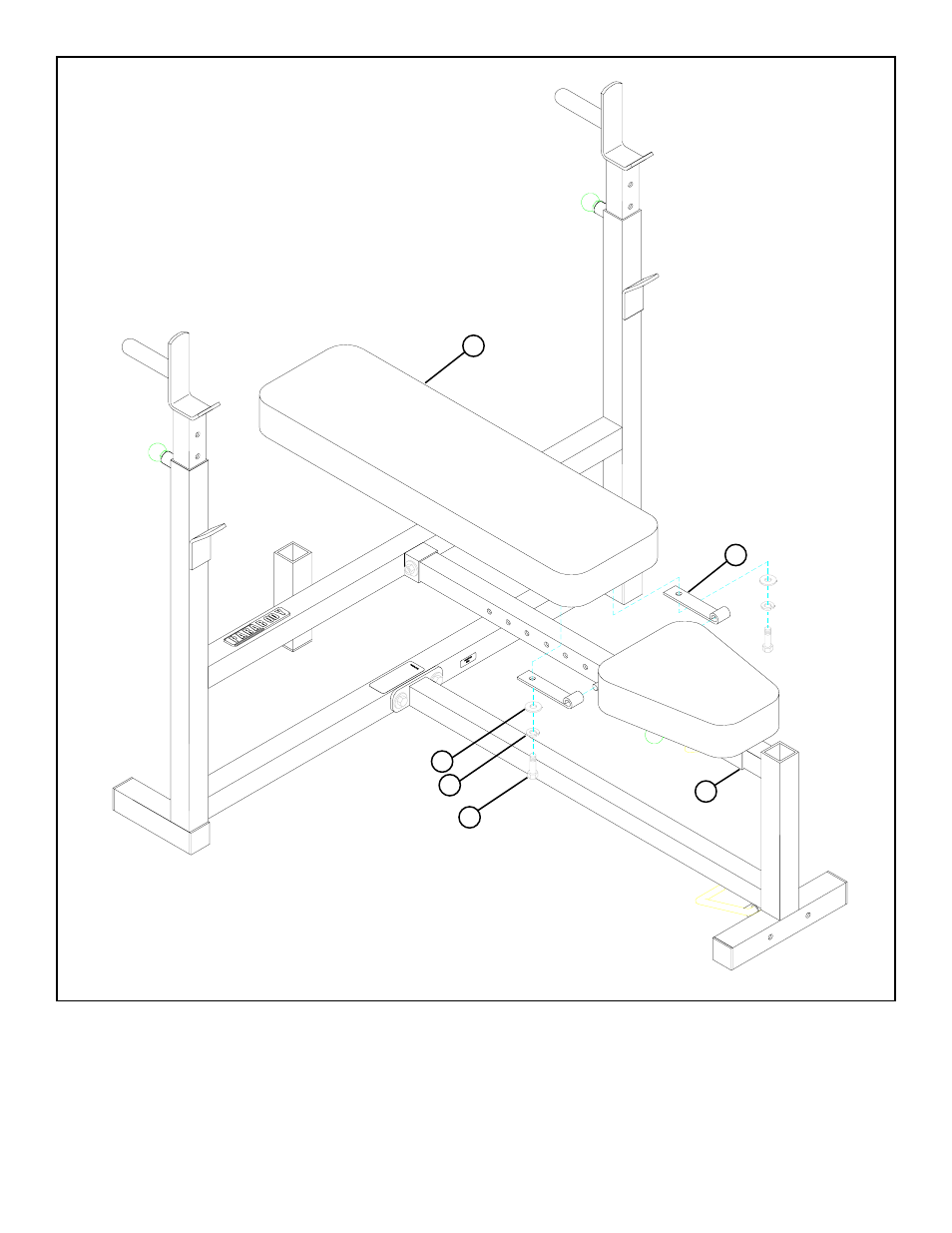

FIGURE 6
9
STEP 6:
14
3/8 X 1” 15
20
4
• To assemble the BACK PAD (14) to the WOLFF SLEEVE (4), slide the two remaining HINGE TABS (9) over the PIN of the
WOLFF SLEEVE (ONE ON EACH SIDE) as shown in FIGURE 6, and SECURELY assemble each HINGE TAB (9) to the
BACK PAD (14) using two 3/8 X 1” BOLTS (15), two 3/8” LOCK WASHERS (20), and two 3/8” WASHERS (19). (MAKE
SURE BOTH HINGE TABS ARE ALL THE WAY ON THE PIN)
19
