Chapter 6 Port Mirroring
28 Cajun M770 Manager User’s Guide
Accessing Port Mirroring
To open the Port Mirroring dialog box for a DomainX:
1 Open the Configuration menu, and select Port Mirroring
DomainXL for the
left DomainX.
OR
Open the Configuration menu, and select Port Mirroring
DomainXR for the
right DomainX. The Port Mirroring dialog box appears.
Note: When none of the ports in the switch support Port Mirroring, the Port
Mirroring option in the Configuration menu is inactive.

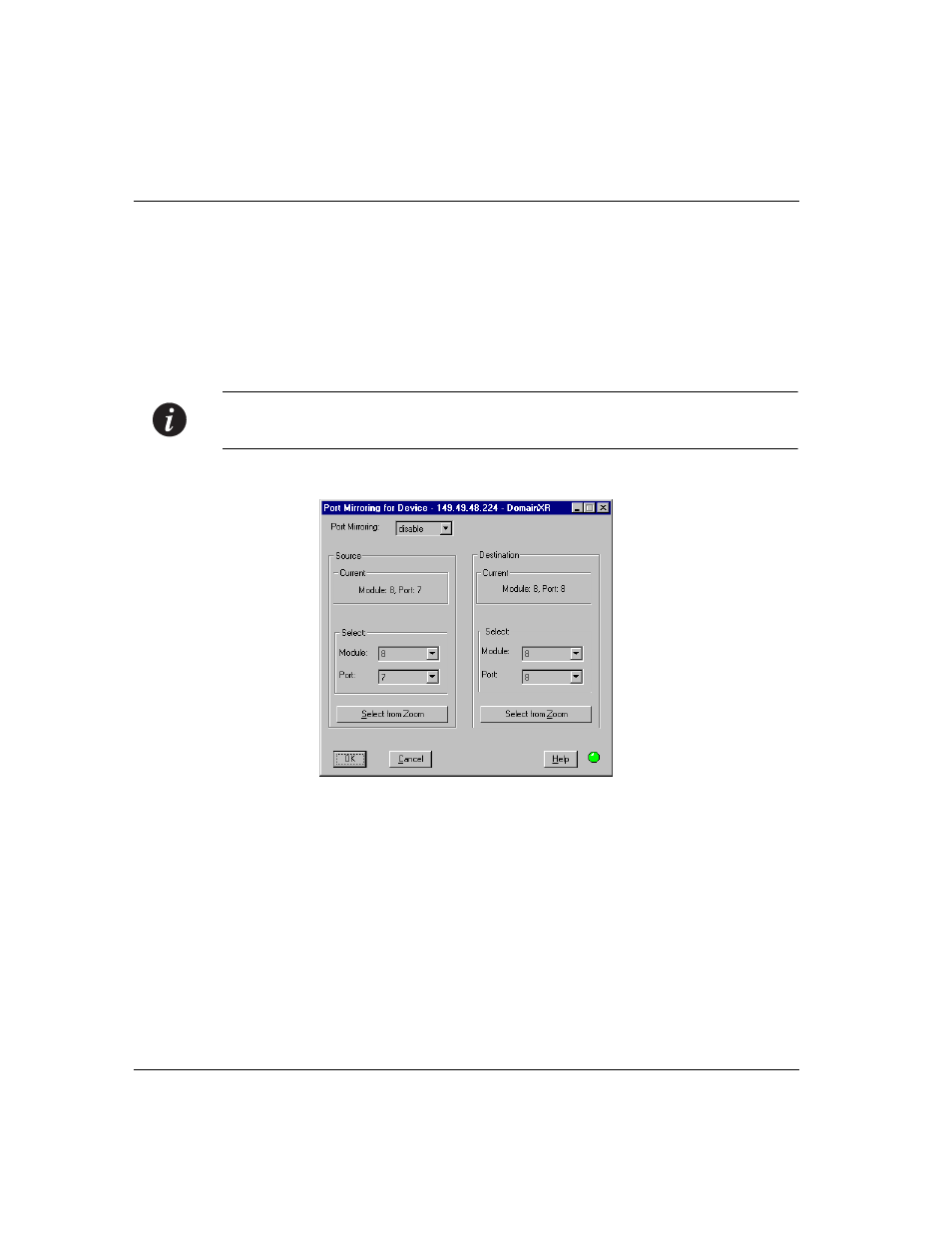

Figure 6.1 Port Mirroring Dialog Box
The Port Mirroring dialog box displays configuration options for setting source and
destination ports, current source and destination ports, and the Port Mirroring
status.
For a full description of all configuration fields in the Port Mirroring dialog box,
refer to Appendix B, Configuration Fields.
