Life Fitness G5 CABLE MOTION User Manual
Page 16
16
STEP 10:

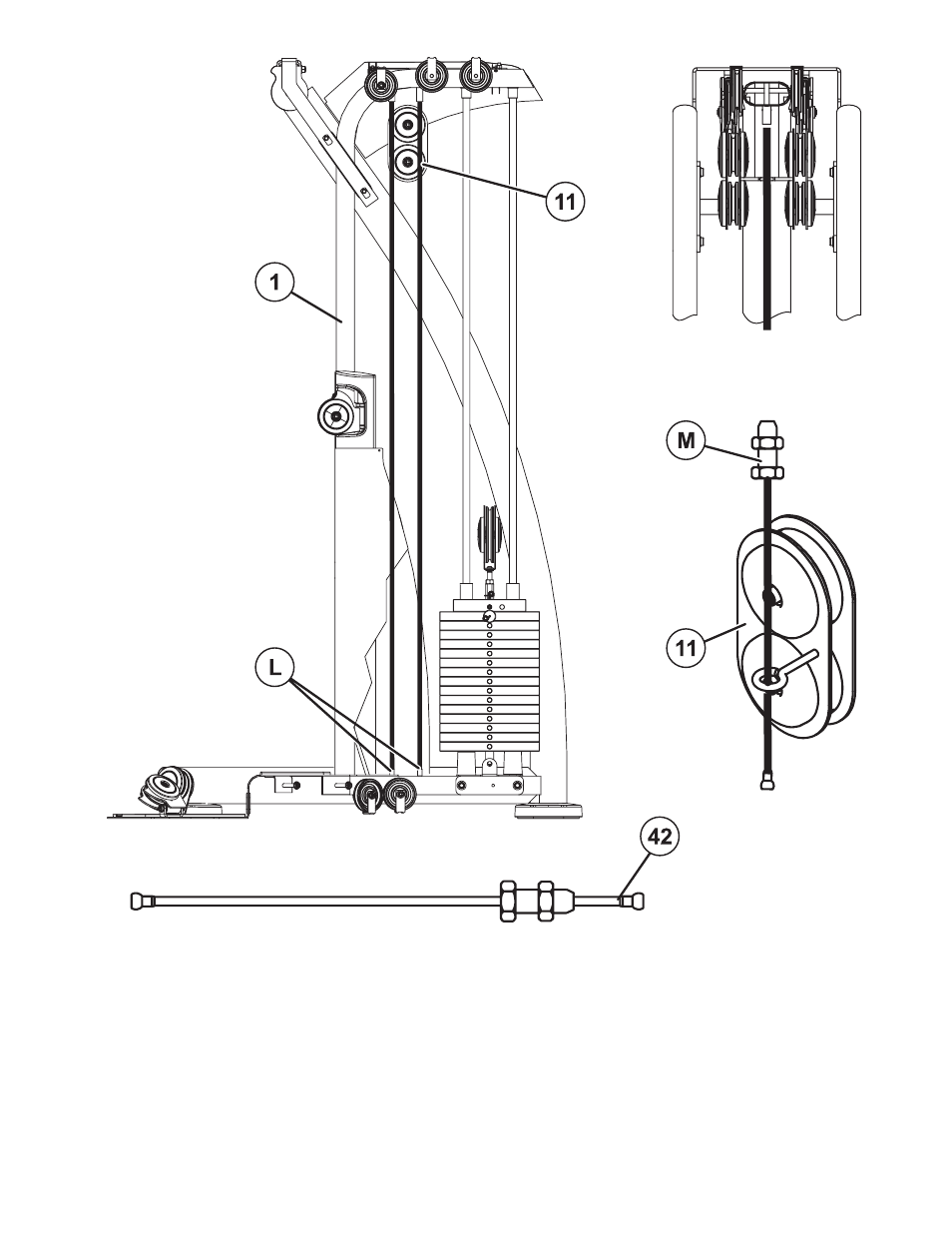

Insert the ball end of one GUIDE CABLE (42) through the eye hook on one FLOATING PULLEY ASSEMBLY (11).
Insert and hook the ball end of the cable into the SLOTTED BUSHING (L) located at the bottom of the frame located
directly below the FLOATING PULLEY ASSEMBLY (11).
Screw the threaded end of the cable into the FRONT UPRIGHT (1) and loosely tighten the cable by screwing the
JAM NUT (M) to the top of the frame.
REPEAT THE ABOVE PROCESS FOR THE REMAINING GUIDE CABLE (42).
