Life Fitness G5 CABLE MOTION User Manual
Page 10
10
STEP 4:

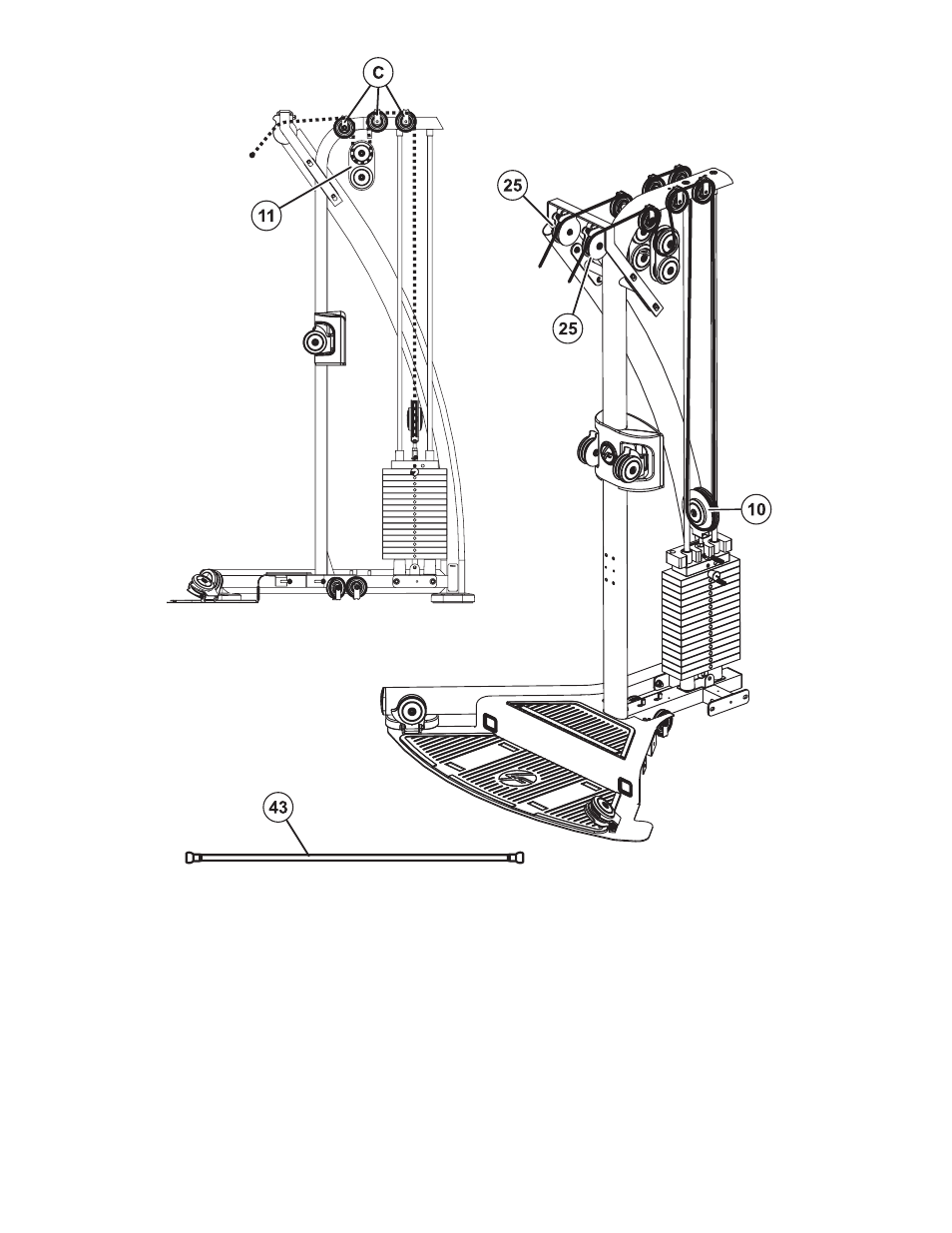

Remove one QUICK CONNECT from the end of one UPPER (LONG) CABLE (43).
Insert the end (where the QUICK CONNECT was removed) of the UPPER (LONG) CABLE (43) through the
UPPER PULLEY (25) and follow routing illustration to the FLOATING PULLEY ASSEMBLY (11) through to the
HEAD PLATE PULLEY ASSEMBLY (10). Continue to the other side, ending at the other UPPER PULLEY (25).
Reattach the previously removed QUICK CONNECT to the end of the UPPER (LONG) CABLE (43).
NOTE: THE CABLE MUST BE INSERTED BETWEEN THE PULLEY AND THE CABLE RETAINING CLIPS (C) AND
MOVE FREELY.
