Life Fitness G5 CABLE MOTION User Manual
Page 14
14

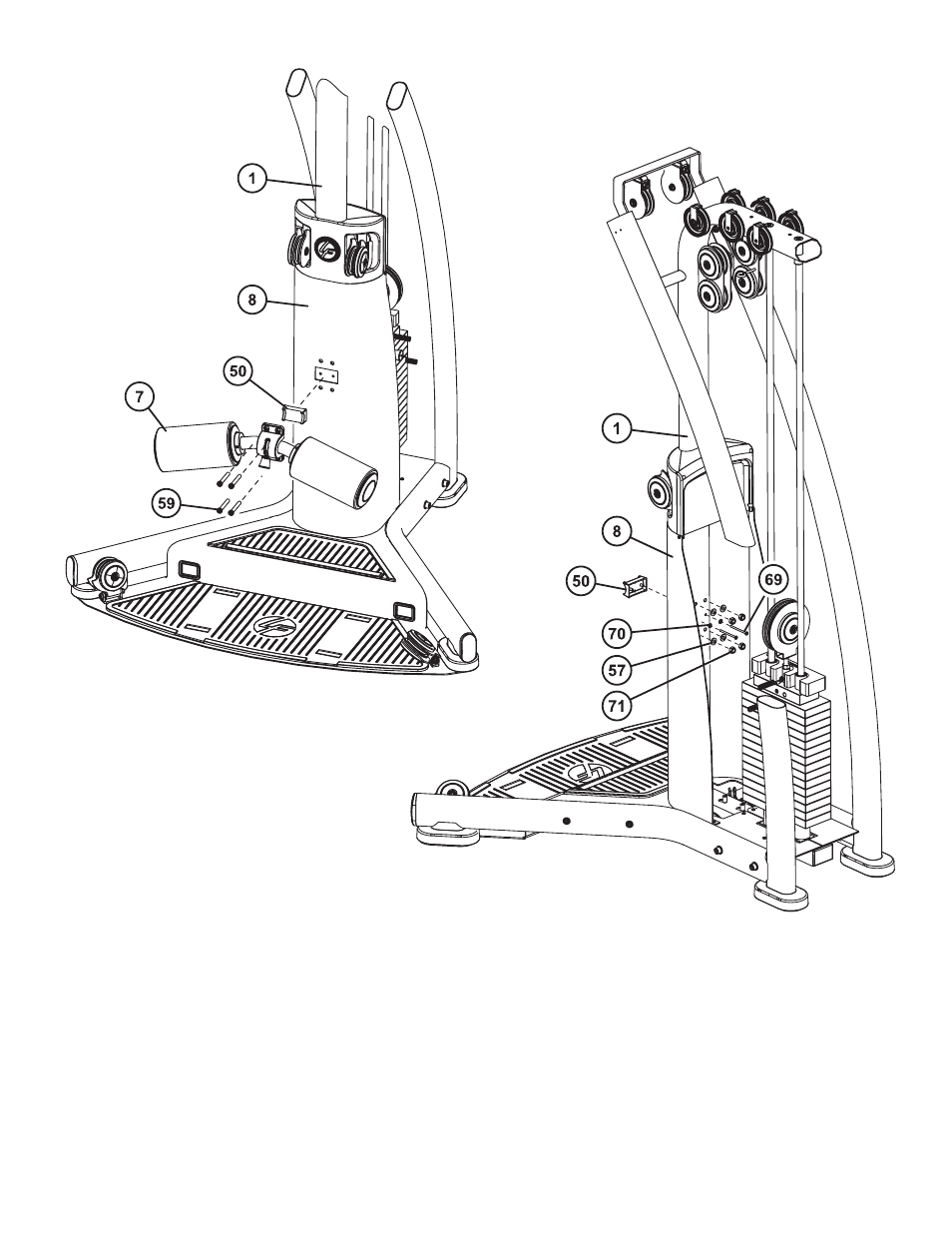

STEP 8:
Attach the BACK THIGH HOLD CLAMP (50) to the the MAIN UPRIGHT (1) by using two M6 x 60mm SCREWS (69)
and two 1/4” WASHERS (70) from the back of the MAIN UPRIGHT (1).
Attach the ROLLER PAD ASSEMBLY (7) to the MAIN UPRIGHT (1) by using four M10 x 70mm SCREWS (59), eight
3/8” WASHERS (57), and four M10 HEX NYLOCK NUTS (71) through the FRONT SHROUD (8) and through the
MAIN UPRIGHT (1). Tighten SECURELY.
