Lantronix EDS Device Servers EDS16PR - Manual (Page 135)

11: Advanced Settings
EDS Device Servers User Guide 135
XML: Import Configuration Page
If you click Import Configuration at the top of an XML page, the XML: Import
Configuration page displays. Here you can select an option for importing configuration
settings.
The XML data can be imported from a file on the filesystem or uploaded using HTTP. The
lines and groups to import can be specified by selecting the respective group item or
entering a filter string. When you select a group item, all instances of that group will be
imported. The filter string can be used to import specific instances of a group. The text
format of this string is:
:;:;...
Each group name is followed by a colon and the instance value . Each :
value is separated with a semicolon. If a group has no instance, specify the group name
only.

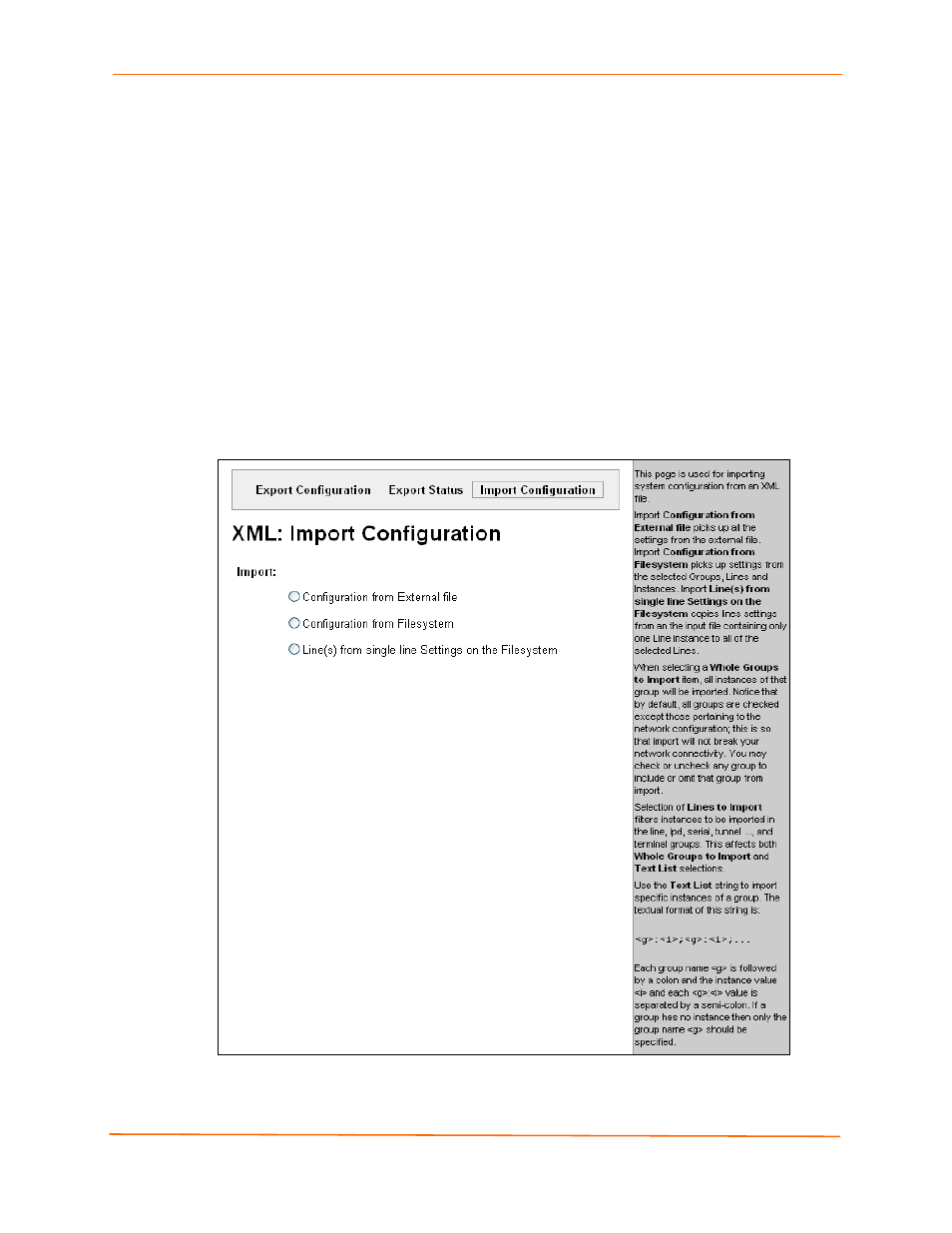

Figure 11-7. XML: Import Configuration Page
