10 Chapter 3: Getting to Know the Wireless-G Exterior Access Point
The Antenna Pattern
Wireless-G Exterior Access Point
When using the Access Point to connect client devices, adjust it so the client devices are on the same horizontal
plane as the Access Point and within a 3dB angle of 47 degrees. This will ensure the strongest signal and
maximum reach.
If the Access Point is used inside a building, put it in a corner of the building for maximum coverage.

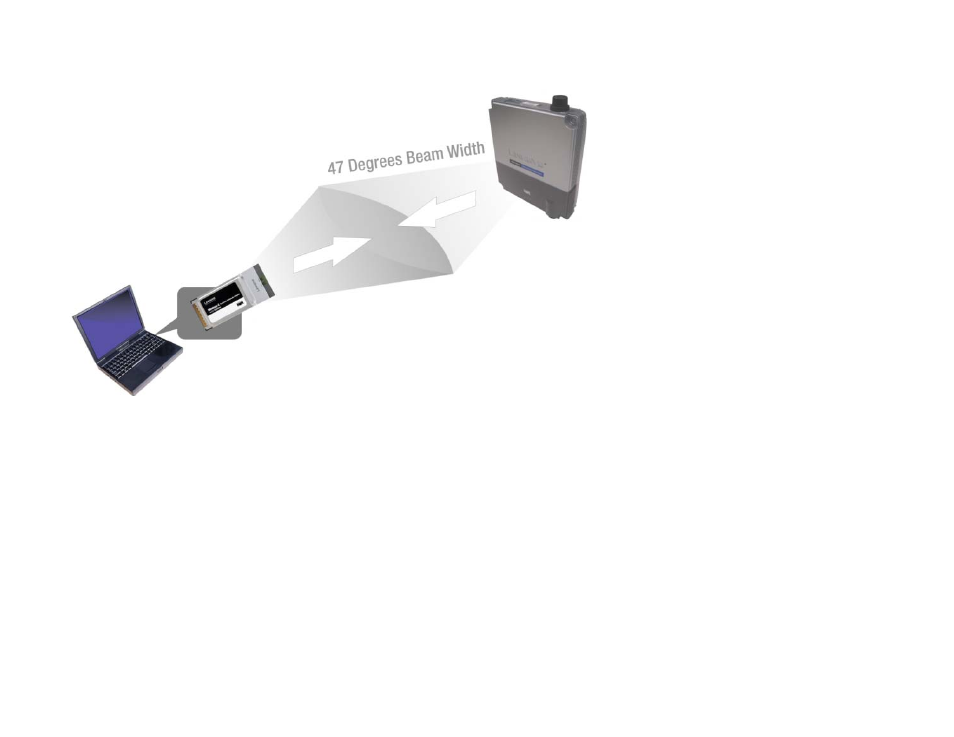

Figure 3-6: Radio Coverage of the Access Point to Client Devices
