6 Chapter 3: Getting to Know the Wireless-G Exterior Access Point
The LEDs
Wireless-G Exterior Access Point
Chapter 3: Getting to Know the Wireless-G Exterior
Access Point
The LEDs
The Access Point's LEDs, where information about network activity is displayed, are located on the front panel.
Power Green. The power LED lights up when the Access Point is powered on.
Wired Green. The Wired LED lights up when the Access Point is successfully connected to a device
through the Ethernet network port. If the Wired LED is flashing, the Access Point is actively
sending to or receiving data from one of the devices over the Ethernet network port.
Wireless Green. The Wireless LED lights up when the Access Point is successfully connected to a
wireless device. If the Wireless LED is flashing, the Access Point is actively sending to or
receiving data from a wireless device.

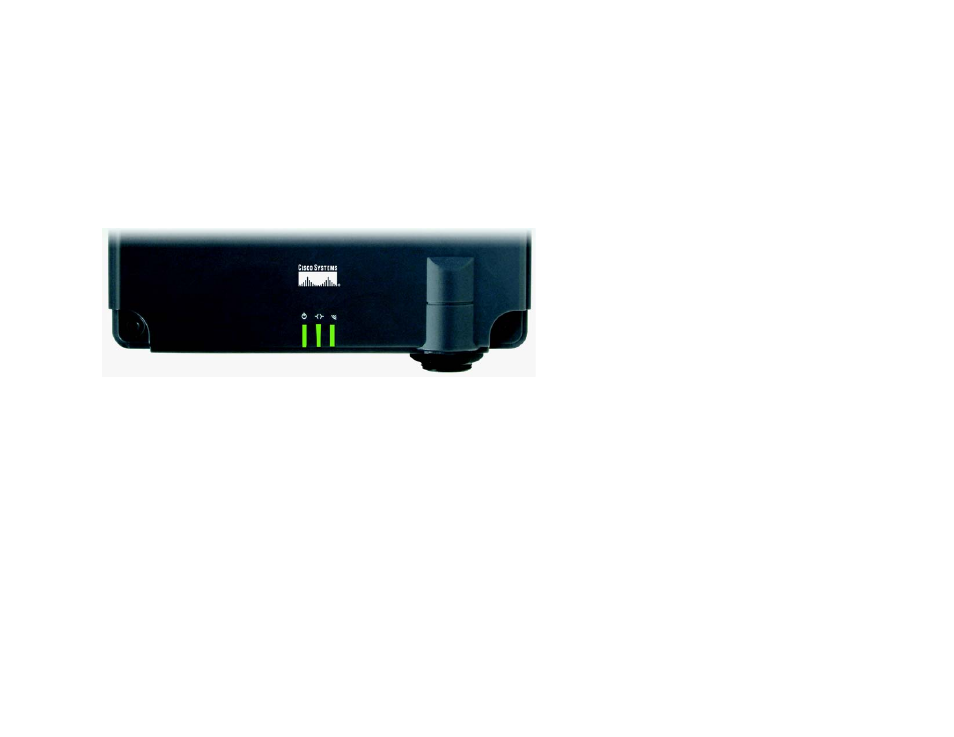

Figure 3-1: Front Panel
