Page 15
9
Chapter 3: Getting to Know the Wireless-G Exterior Access Point
The Antenna Pattern
Wireless-G Exterior Access Point
The Antenna Pattern

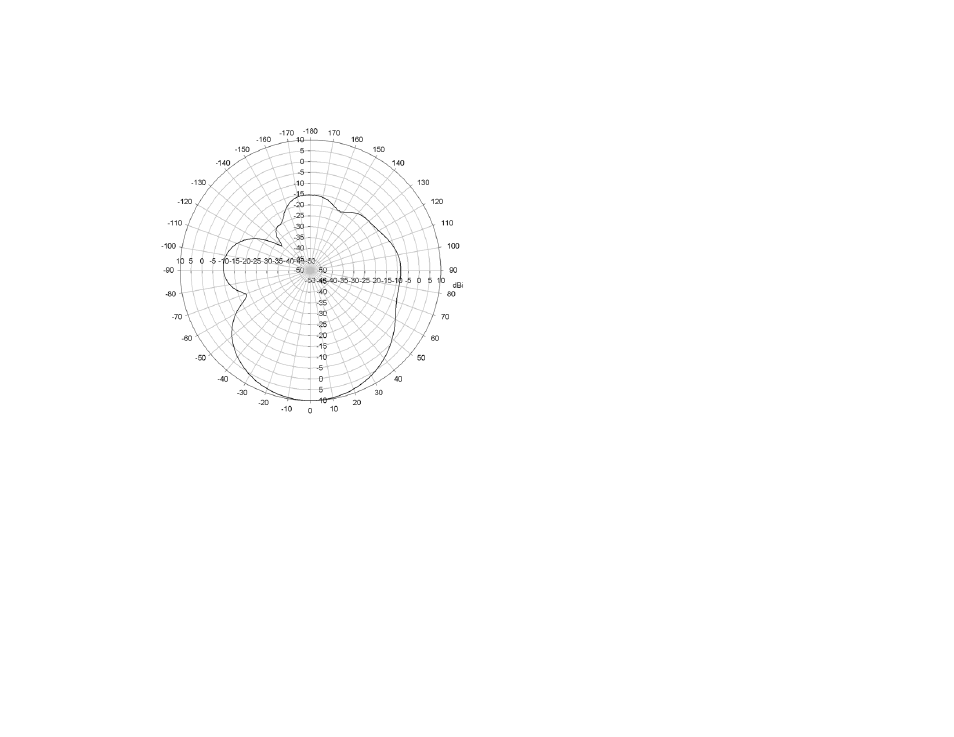

The above diagram shows the antenna pattern of the built-in directional antenna on the horizontal plane. The
power of the wireless signal is most strong on the direction perpendicular to the front surface (with Linksys logo)
of the Access Point. The peak gain of this antenna is 9dBi. The 3dB beamwidth is 47 degrees.
Figure 3-5: Internal Antenna Pattern (Horizontal Plane)
