Life Fitness G7 User Manual
Page 17
17

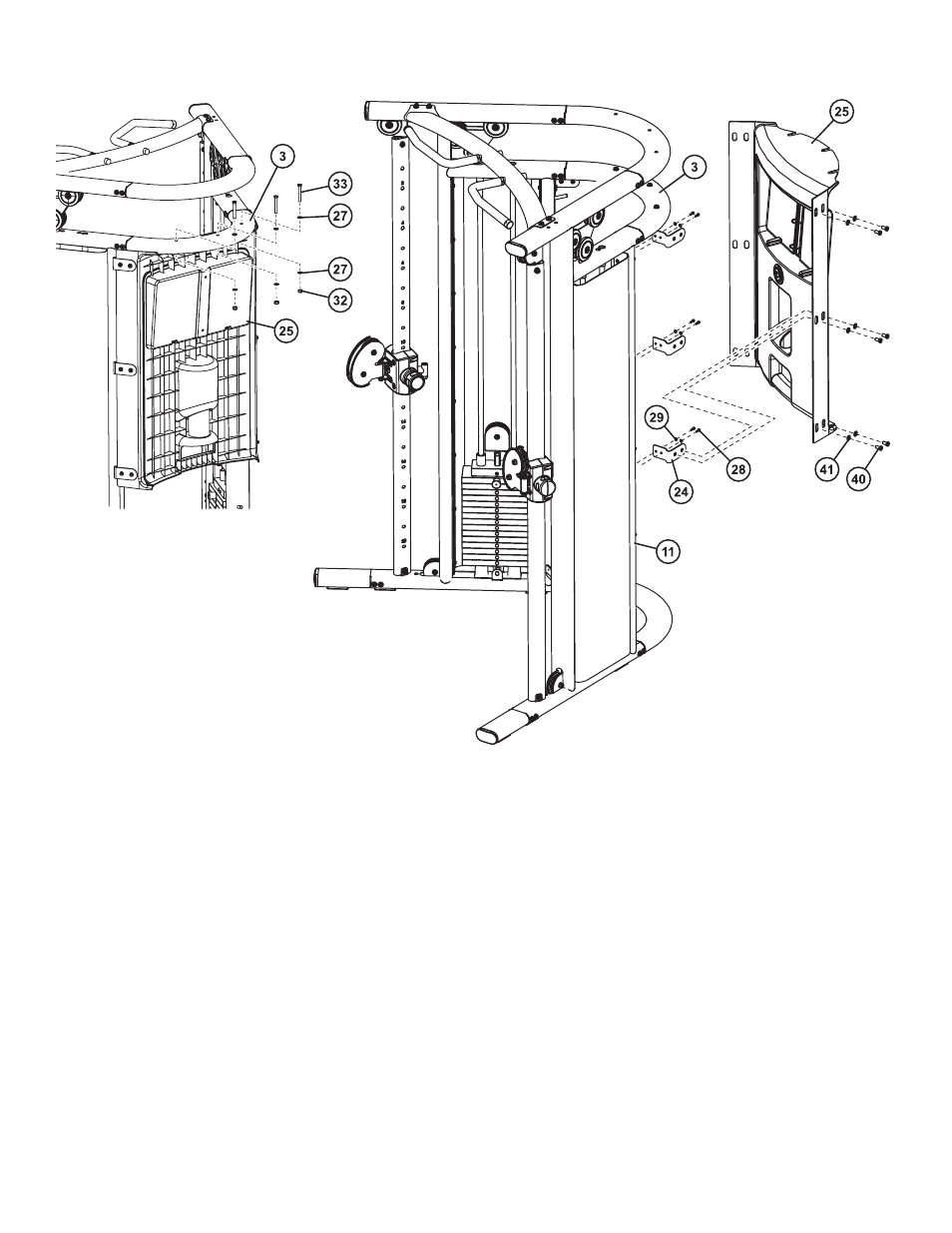

STEP 11:
Attach the six KIOSK BRACKETS (24) to the RIGHT TOWER (11) and LEFT TOWER (1) using two M5 HEX
SCREWS (28) and two M6 WASHERS (29) each. Tighten the screws securely.
Fasten the KIOSK (25) to the KIOSK BRACKETS (24) using twelve M10 x 20mm SCREWS (40) and twelve 10.5
WASHERS (41).
NOTE: SUPPORT THE KIOSK (25) UNTIL THE SCREWS ARE INSTALLED.
Secure the top of the KIOSK (25) to the MIDDLE BRACKET TUBE (3) using three M10 x 70mm SCREWS (33), six
M10 WASHERS (27), and three M10 HEX NYLOCK NUTS (32).
NOTE: THE TOP OF THE KIOSK (25) HAS THREE SLOTS THAT FIT UNDERNEATH THE THREE HOLES OF THE
MIDDLE BRACKET TUBE (3).
