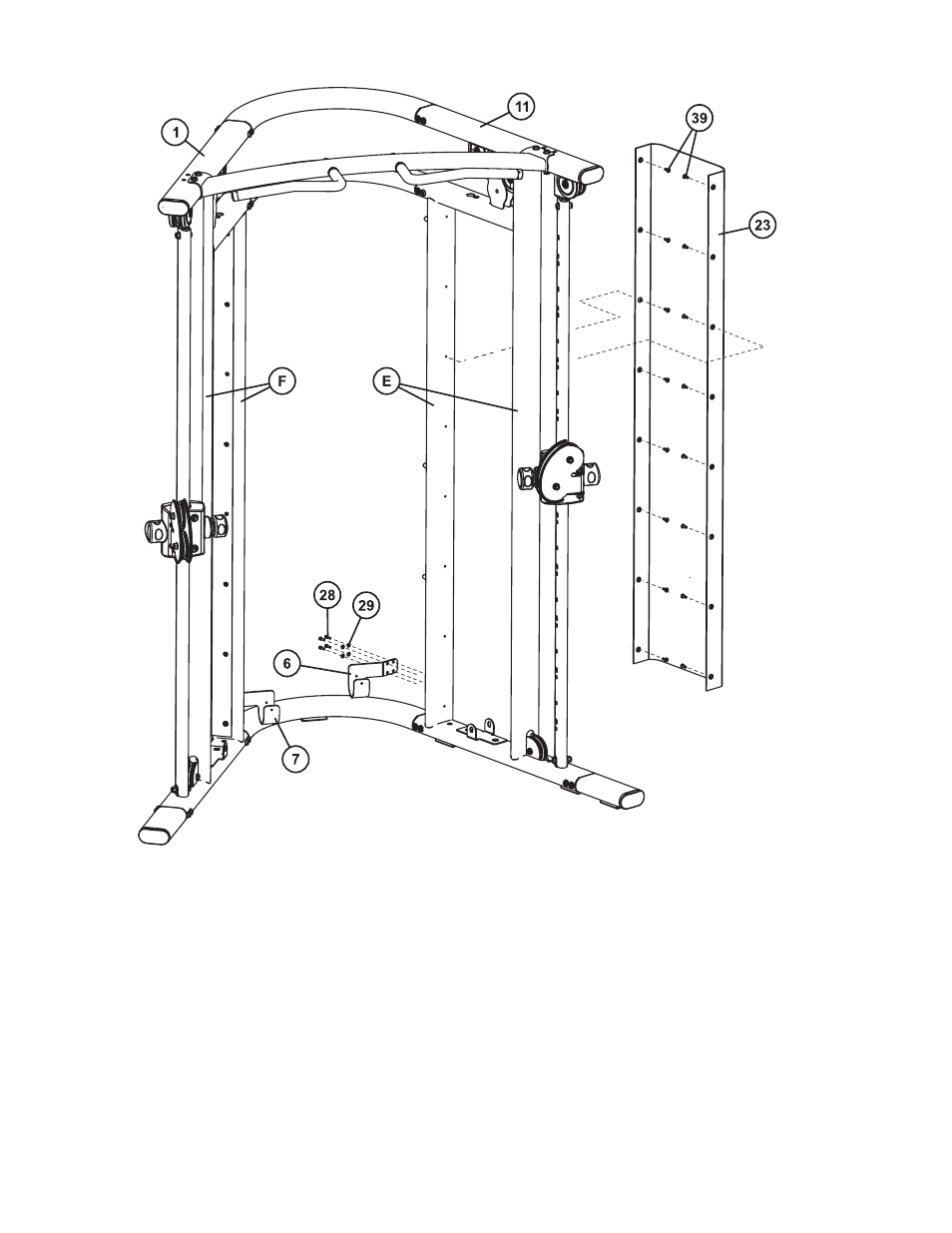

STEP 4:
Remove the protective paper from the SIDE SHROUD (23) before installation.
Install one SIDE SHROUD (23) to the RIGHT TOWER (11) using sixteen M5 SHOULDER SCREWS (39) on the
inside of the SIDE SHROUD (23) into the UPRIGHT TUBES (E) of the RIGHT TOWER (11). Tighten the screws
securely.
NOTE: YOU MUST BE STANDING INSIDE THE GYM TO INSTALL THE SIDE SHROUD (23).
Repeat this process for installing one SIDE SHROUD (23) to the LEFT TOWER (1).
Attach the RIGHT U BRACKET (6) onto the back of the UPRIGHT TUBE (E) of the RIGHT TOWER (11) using four
SCREWS (28) and four M6 WASHERS (29). Tighten the screws securely.
Repeat this process for installing the LEFT U BRACKET (7) onto the back of the UPRIGHT TUBE (F) of the LEFT
TOWER (1).
