Life Fitness G7 User Manual
Page 12
12
STEP 6:
Uncoil cables to remove all twists.

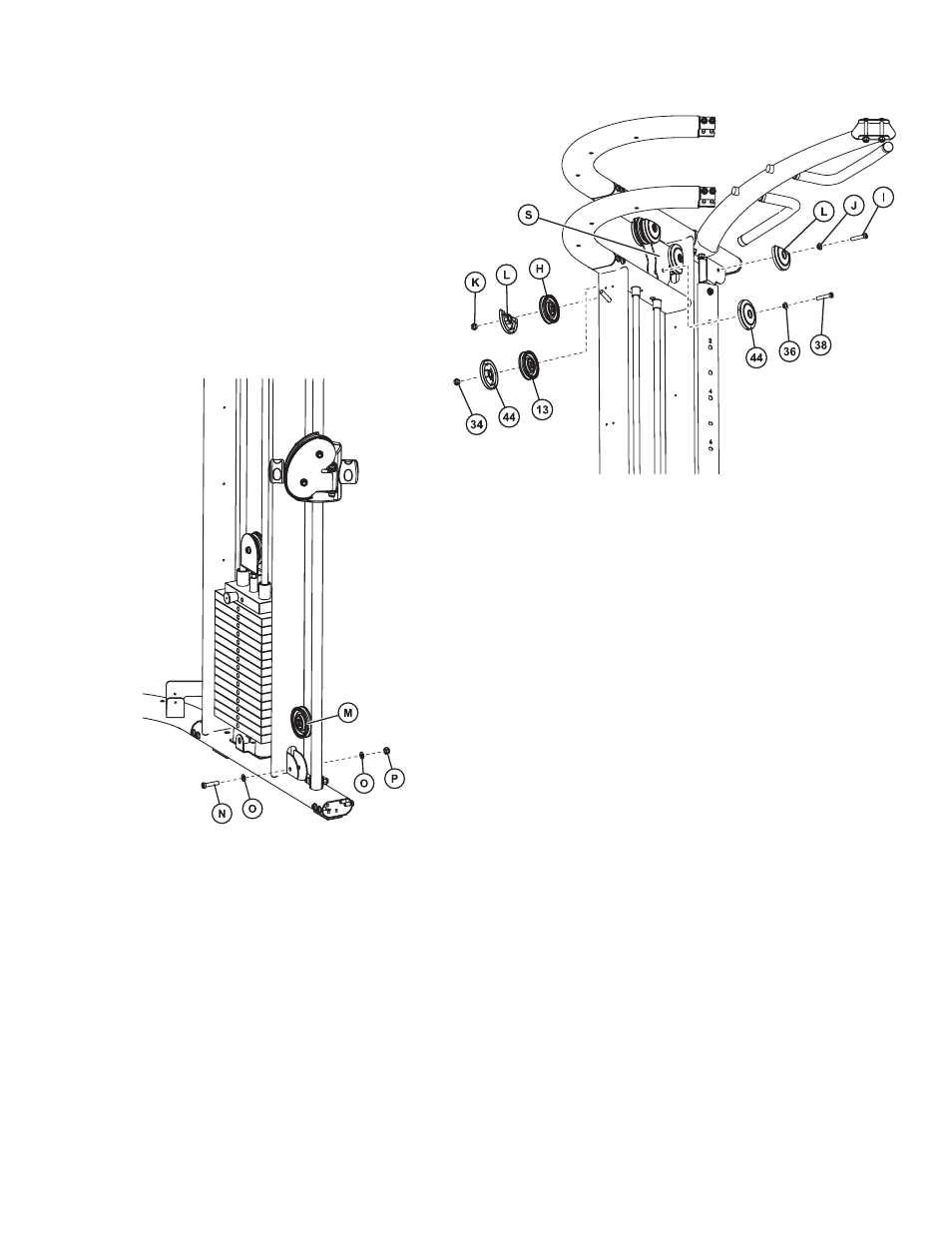

Remove the UPPER PULLEYS (H) on the RIGHT TOWER (11) and LEFT TOWER (1) by removing the M10 x 50mm
SCREW (I), PULLEY RETAINER (J), M10 SOCKET HEAD NUT (K), and PARTIAL PULLEY COVERS (L). Set the
UPPER PULLEYS (H) and hardware aside.
Remove the LOWER PULLEYS (M) on the RIGHT TOWER (11) and LEFT TOWER by removing the M10 x 55mm
SCREW (N), M10 WASHERS (O), and M10 HEX NYLOCK NUT (P).
