Lenovo IdeaPad Z380/Z480/Z485/Z580/Z585
61
1110 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 33
• “1020 Dummy card” on page 34
• “1030 Optical drive/Hard disk drive (HDD)/Memory/Central processing
unit/Mini PCI Express Card slot compartment cover” on page 35
• “1040 Hard disk drive” on page 37
• “1050 Optical drive” on page 40
• “1060 DIMM” on page 41
• “1070 PCI Express Mini Card for wireless LAN/WAN” on page 42
• “1080 Keyboard” on page 44
• “1090 Keyboard bezel” on page 47
• “1100 System board” on page 57

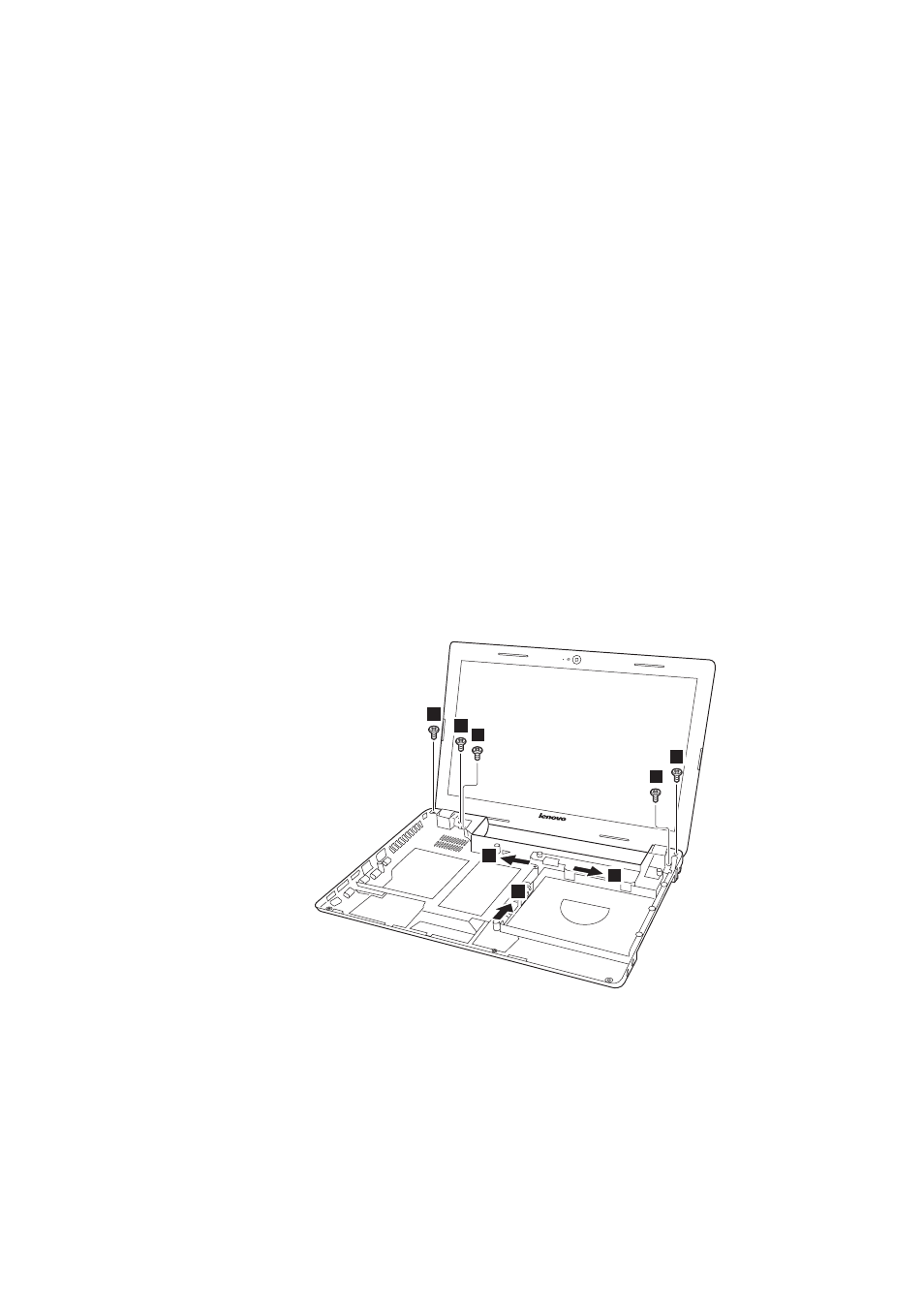

Figure 11. Removal steps of LCD unit
Release the antenna cables from the cable guides in the direction shown by
arrows .
Lenovo IdeaPad Z380
Remove the five screws
.
a
b
1
1
1
2
2
2
2
2
