10 Adding DEFINITY ProLogix Solutions to Existing DCS Networks
DEFINITY ProLogix Solutions Release 2 Overview 555-235-100 Issue 2 June 1999 10-6

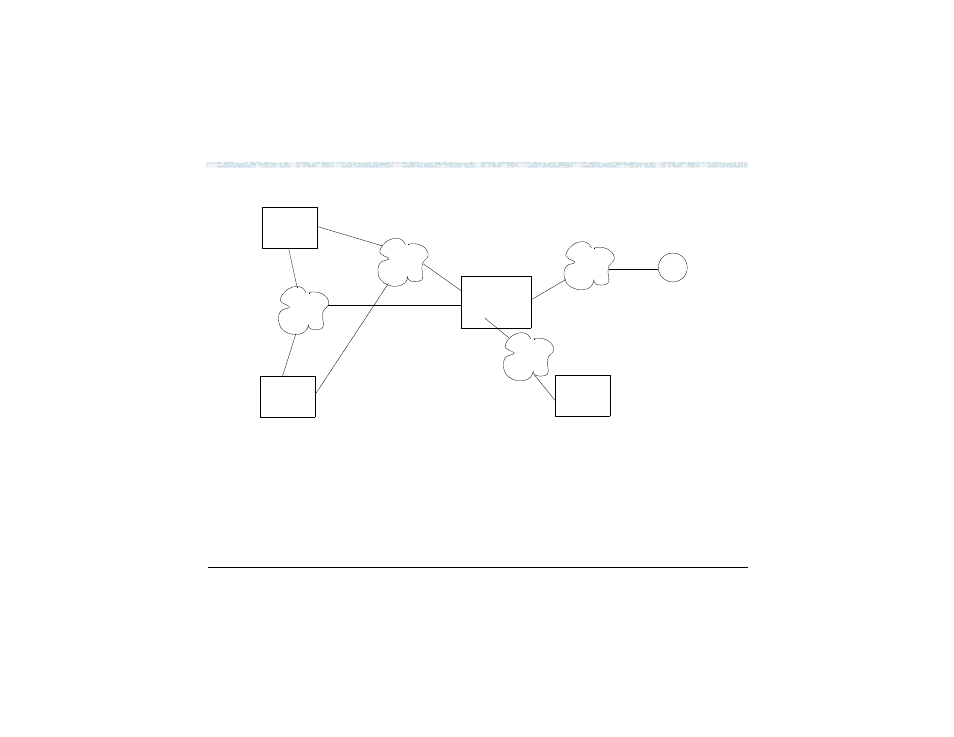

Figure 6. DCS Network with TCP/IP, ISDN-PRI, and BX.25 Signaling
1) DEFINITY ProLogix Solutions or
another DEFINITY ECS
6) Existing DCS BX.25 Network
2) Signaling via TCP/IP 7) Signaling via BX.25
3) Voice data 8) LAN, WAN, Internet
4) Signaling via ISDN-PRI 9) In-house wiring, or Public (SDN) or Private
Network (point to point)
5) DEFINITY ECS gateway with DCS
using TCP/IP, BX.25, and ISDN-PRI
10) In-house wiring or Private Network (point to point)
4
6
1
1 1
3
2
2
8
5
3
7
2
10
9
10
