7

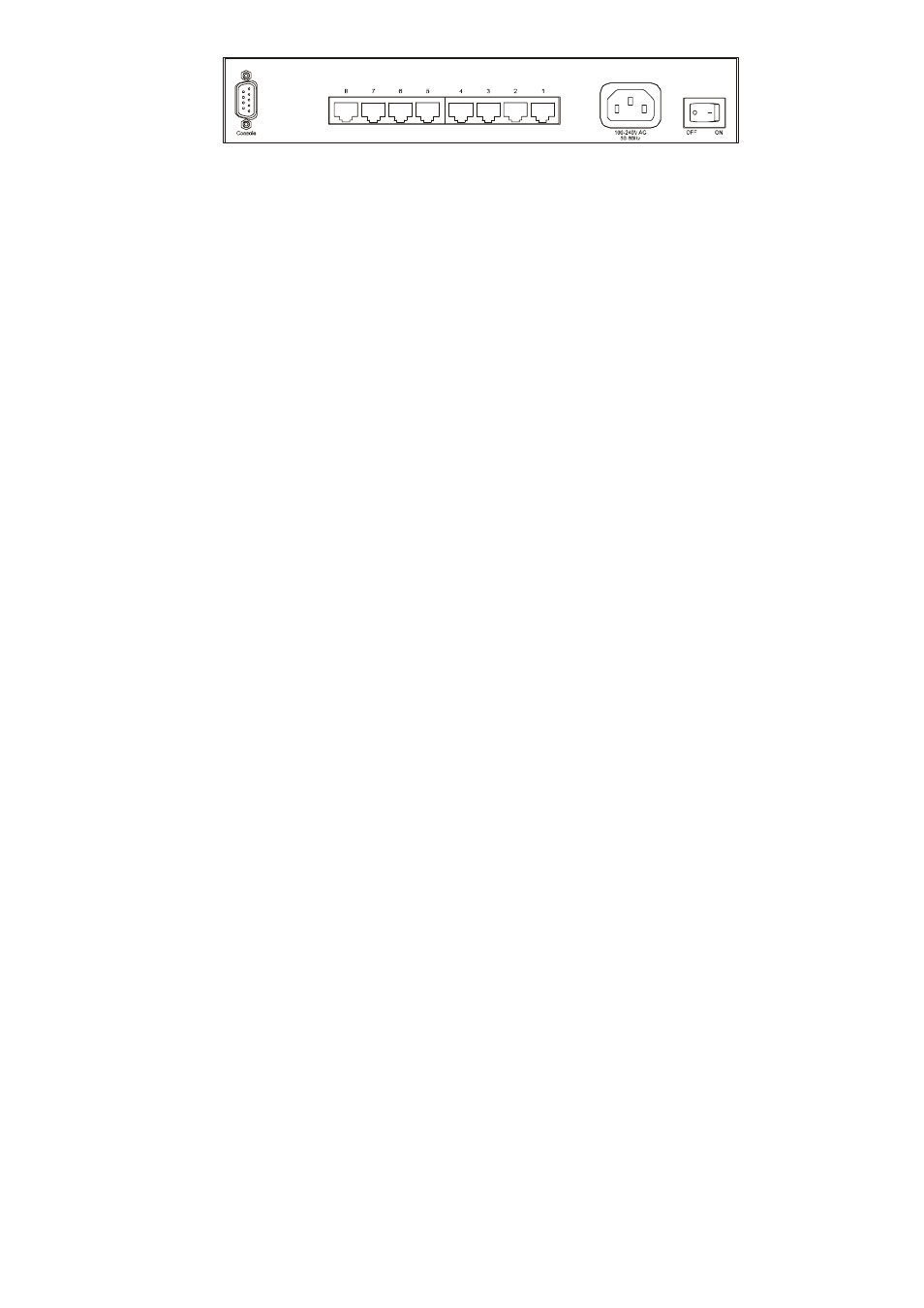

GSW-0840T
2.4.1 Power Socket
The Power Socket is designed to be used with the power cord included in the product package.
Attach the female end of the power cord to the male power connector on the back panel.
Attach the male end of the power cord to a grounded power outlet.
2.4.2 Network Ports
The Switch provides Four (4) / Eight (8) 1000Base-T/100Base-TX/10Base-T (RJ-45 connector)
ports.
2.4.3 Console Port
The console port interface conforms to the RS-232 electrical specification. This interface supports
asynchronous data of Eight (8) data bits, One (1) stop bit, and no parity bit. The unit only operates
at 9600bps rates for 4-Port’s and 9600bps rates for 8-Port’s with RS-232 cable in system configure.
